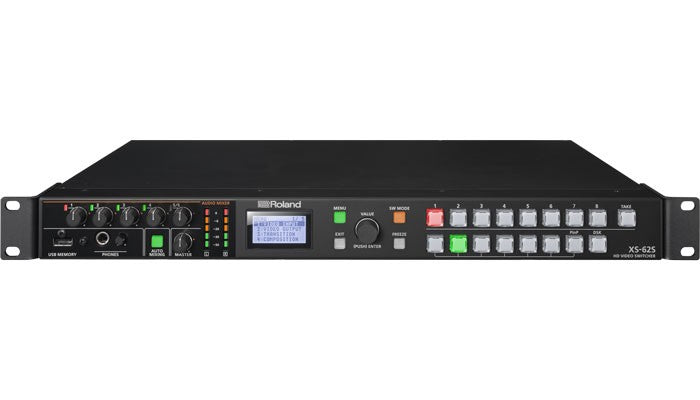

Roland XS-62S HD Video Switcher Hero

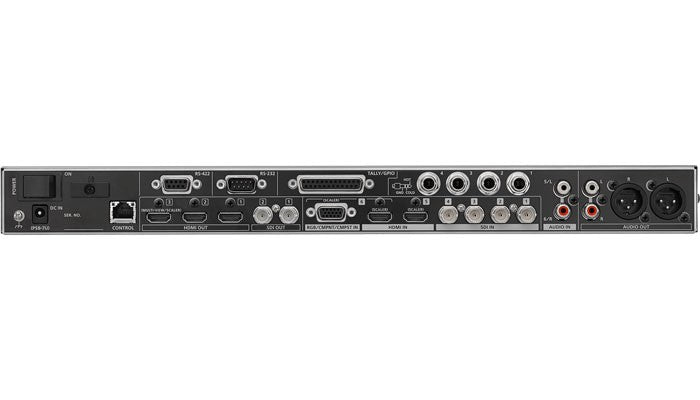

Roland XS-62S HD Video Switcher Rear
  • SKU: XS-62S

Roland XS-62S HD Video Switcher

  • Vendor: Roland
  • Product Type: Production Switchers

The Roland XS-62S HD Video Switcher is a 18 channel audio mixer that includes TRS, stereo RCA, SDI, and HDMI sources to eight audio outputs. it can control up to 6 PTZ Camera units with three different switching modes - classic PGM/PST, Dissolve and Matrix, and two internal memory locations for still images and more.
The XS-62S is a great space saving unit that is easy to control from the front panel buttons and menu screen, or from a PC or Mac using realtime remote control software (RCS).
The professional broadcast quality crosspoint buttons are back lit with brightness control for use in bright daylight or dark performance spaces. A dedicated menu screen and volume knobs for adjusting audio are both easy to access from the front panel.
The XS-62S is designed for direct control and intuitive operation for any events.

For further information check out the Roland website

Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors SDI IN 1--4: BNC type x 4
HDMI IN 5--6: HDMI type A x 2
Output Connectors SDI OUT 1--2: BNC type x 2
HDMI OUT 1--3: HDMI type A x 3
Analog Input Level, Impedance RGB: 0.7Vp-p, 75ohms (H, V:5VTTL)
COMPONENT: 1.0Vp-p, 75ohms(Bi-level sync/Tri-level sync)
COMPOSITE: 1.0Vp-p (Y), 0.286Vp-p (C: NTSC), 0.3Vp-p (C: PAL), 75ohms
Input formats SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M720/59.94p, 720/50p(SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p(SYSTEM FORMAT = 1080i or 1080p)
480/59.94i, 576/50i, 480/59.94p, 576/50p,720/59.94p, 720/50p, 1080/59.94i, 1080/50i,1080/59.94p, 1080/50p,
VGA (640 x 480, 60 Hz), SVGA (800 x 600, 60 Hz), XGA (1024 x 768, 60 Hz),WXGA (1280 x 800, 60 Hz),
SXGA (1280 x 1024, 60 Hz),FWXGA (1366 x 768, 60 Hz), SXGA+ (1400 x 1050, 60 Hz),
UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
Still Image Bitmap File (.bmp), Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
Output formats SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:720/59.94p, 720/50p (System Format = 720p)1080/59.94i, 1080/50i (System Format = 1080i)
1080/59.94p, 1080/50p (System Format = 1080p)
HDMI OUT 3 (MULTI-VIEW): 1080/59.94p, 1080/50p
HDMI OUT 3 (SCALER): 480/59.94p, 576/50p,720/59.94p, 720/50p, 1080/59.94p, 1080/50p,
SVGA (800 x 600, 60 Hz)(*1), XGA (1024 x 768, 60 Hz)(*1),WXGA (1280 x 800, 60 Hz)(*1),
SXGA (1280 x 1024, 60 Hz)(*1),FWXGA (1366 x 768, 60 Hz)(*1), SXGA+ (1400 x 1050, 60 Hz)(*1),
UXGA (1600 x 1200, 60 Hz), WUXGA (1920 x 1200, 60 Hz)
Video Effects Output Mode: PGM-PST, DISSOLVE, MATRIX
Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)
Composition: PinP (SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types),
DSK (Luminance Key, Chroma Key)
Other: Flip horizontal, Still Image Capture, Still Image Playback, Test pattern output, Input Freeze
Audio Processing Sampling rate: 24 bits/48 kHz
Audio formats SDI IN: Linear PCM, 24 bits/48 kHz, 2 ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8 ch (Conforms to SMPTE 299M)
HDMI IN, HDMI OUT: Linear PCM, 24 bits/48 kHz, 2 ch
Input Connectors SDI IN 1--4: BNC type x 4
HDMI IN 5--6: HDMI Type A x 2
AUDIO IN 1--4: 1/4-inch TRS phone type
AUDIO IN 5--6: RCA phono type
Output Connectors SDI OUT 1--2: BNC type x 2
HDMI OUT 1--3: HDMI type A x 3
AUDIO OUT: XLR type, RCA phono type
PHONES: Stereo 1/4-inch phone type
Input Level AUDIO IN 1--4: -60--+4 dBu (Maximum input level: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum input level: +8 dBu)
Input Impedance AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN: 0--+23 dBu), 5 k ohms (HEAD AMP GAIN: +24--+64 dBu)
AUDIO IN 5--6: 15 k ohms
Output Level AUDIO OUT: +4 dBu (XLR type, Maximum input level: +22 dBu), -10 dBu (RCA phono type, Maximum input level: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance AUDIO OUT: 600 ohms (XLR type), 1 k ohm (RCA phono type)
PHONES: 10 ohms
Audio Effects Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Reverb, Multi-Band Compressor, Limiter
Other Connectors USB MEMORY port (for USB flash drive): USB A type
TALLY/GPIO: DB-25 type (Female)
RS-232: DB-9 type (Male, for remote control)
RS-422: DB-9 type (Female, for VISCA control)
CONTROL: RJ45, 100BASE-TX (For remote control)
Other Functions Preset Memory (8 types)
Panel Lock Function
EDID Emulator
Smart Tally
Remote Camera Control
Display Graphic LCD 128 x 64 dots
Power Supply AC Adaptor
Current Draw 2.6 A
Power Consumption 31.0 W
Operation Temperature +0 to +40 degrees Celsius
Dimensions 481 (W) x 333 (D) x 44 (H) mm
Weight (excluding AC adaptor) 3.6 kg
*Specifications Correct at time of Publication
