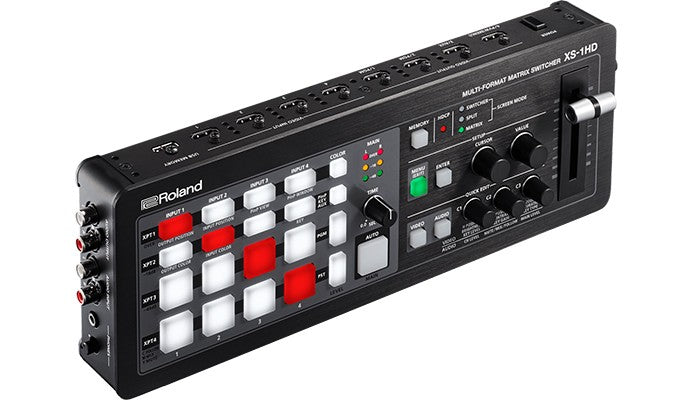

Roland XS-1HD Multi-Format Matrix Switcher Hero

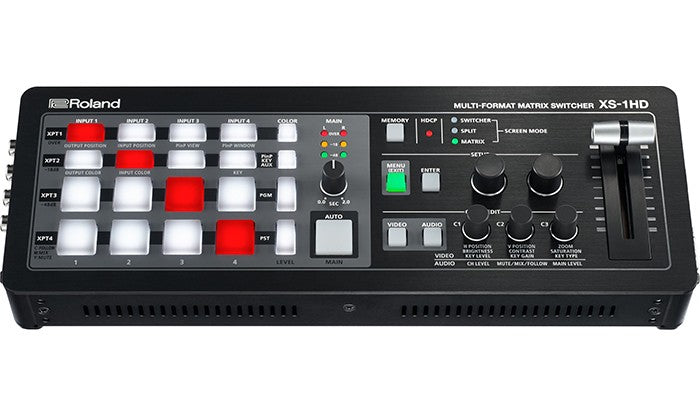

Roland XS-1HD Multi-Format Matrix Switcher Front

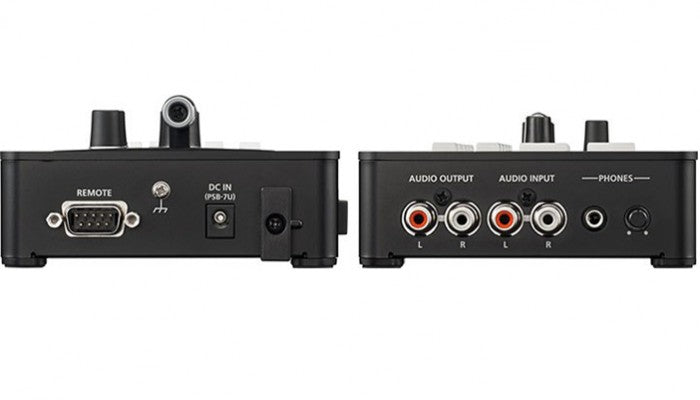

Roland XS-1HD Multi-Format Matrix Switcher Sides
  • SKU: XS-1HD

Roland XS-1HD Multi-Format Matrix Switcher

$2,799.00
  • Vendor: Roland
  • Product Type: Production Switchers

A versatile and compact switcher with multi-screen output and video compositing. A multi-format matrix switcher with scalers that supports up to full HD.

The Roland XS-1HD is ideal for supporting live event productions that involve a variety of video signals. A high quality scaler is provided on each input, allowing for fast setup. At only the width of a 13” laptop computer, the XS-1HD allows realtime operation in even the most space-limited working environments.

The XS-1HD can switch video from up to four sources such as cameras, computers, or media players, and freely assign them to LCD displays or projectors. A built-in scaler on each input means that the position or zoom can be adjusted even if the video signals being input have different formats. Since an EDID emulator is built-in, the correct resolution will be sent from computers to the switcher. You can instantly change the what is being sent to any display by recalling previously-saved preset memories as the event progresses or when appropriate for the situation.

Matrix mode lets you switch to a total of four output destinations, such as a main screen, a secondary screen, a monitor for the presenter, and a digital signage for general information. Switcher mode is convenient when the operator requires traditional realtime switching capability with a multiview preview, PinP, key-compositing, and dissolve transitions.

The XS-1HD is ideal for banquet venues, halls, theaters, or e-learning studios that use multiple destinations to display video. Complex applications that would otherwise require the integration of video switchers, audio mixers, and control panels can be realized using just the XS-1HD. Since settings can be stored, even complex setups can be recalled instantly. The RS-232 control port makes it easy add a third-party control system to the XS-1HD.

The built-in scalers and multiple operation modes make it ideal for use in event spaces since it handles ever changing input source types and resolutions and adapts to different output destination requirements easily. HDCP compliance makes it indispensable when clients want to playback HDCP-protected HDMI signals from sources such as Blu-ray or smartphones. Still images can be loaded from USB and are great for convenient displaying logos.

Even with its compact footprint, the XS-1HD lets you operate its powerful functions using only the operation panel. Since HDMI input/output and the controls are integrated into a single unit, it can be used in a variety of situations such as on a small desk or podium, or on a media cart.

These buttons select the input channel for each output. The vertical columns correspond to the input, and the horizontal rows correspond to the output. Buttons are lite-up white when a video signal is present.

This function lets you adjust the video or audio from the operation panel without need to access the menu. You can control settings such as the position and scaling of the image, the location of the PinP inset windows, and the audio volume.

HDMI connectors allow video and audio (stereo) to be input and output. A scaler and EDID emulator are built-in for each input, and HDCP is also supported, allowing for even rights-protected content to be switched.

Settings can be backed up on a USB flash drive. Still images can also be loaded, and instantly displayed when needed.

Line-level stereo input and output are available and can be mixed with audio that is input via HDMI. Audio embedding and de-embedding are supported, along with audio delay to adjust for lip-sync.

The XS-1HD provides three screen modes for a variety of applications.In addition to the matrix switcher mode, there's a Switcher mode that lets you use PinP or key-compositing, dissolve transitions and provides a multi-view output, and a Split mode that can display up to three PinP images.

Four input video signals can be individually switched to one of four outputs. Since a scaler is provided for each of the four inputs, you can connect a mix of video devices such as cameras, PCs, media players, Blu-ray discs, or smartphones. You can switch between videos by fading-in/out and can adjust desired transition time using the TIME knob.

This mode lets you use a cross-dissolve to seamlessly transition between sources, or use PinP or key-compositing. A multi-view input preview can be output from HDMI OUT 4 for confirming input sources while operating the unit.*1 If you're not using PinP or key-compositing, you can use an AUX bus to output a separate video signal to a confidence monitor or other destination.
*1 Skip-frame display

This mode composites multiple videos into a single screen for output. Up to three small screens can be composited into a background video. The position, size and layering order of the inset screens can be individually set. This is useful when it is required show multiple videos simultaneously, such as when recording e-learning content or presentations.

For further information check out the Roland website

Video
Processing 4:4:4 (Y/Pb/Pr, RGB) /10 bits
4:2:2 (Y/Pb/Pr) /10 bits
Input Connectors HDMI: HDMI Type A x4 (HDMI Input 1--4
*HDCP Supported
Output Connectors HDMI: HDMI A x4 (HDMI Output 1--4)
*HDCP Supported
Formats 480/59.94i (*1)
576/50i (*1)
480/59.94p (*1)
576/50p (*1)
720/59.94p
720/50p
1080/59.94i
1080/50i
1080/59.94p
1080/50p
800 x 600/60 (*1)(*2)
1024 x 768/60 (*2),
1280 x 720/60 (*2)
1280 x 800/60 (*2)
1366 x 768/60 (*2)
1280 x 1024/60 (*2)
1400 x 1050/60 (*2)
1600 x 1200/60
1920 x 1080/60
1920 x 1200/60 RB
*Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11
*Frame rate is 59.94 Hz (NTSC) or 50 Hz (PAL).
(*1) Input only.
(*2) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
Effects Output Mode : Switcher, Split, Matrix
Transition : Mix, Cut (*3)
Composition (Keyer) : 2 (*3)
Others : HDCP Supported, Test Pattern Generator.
(*3) These effects depends on Output Mode.
Still Image Internal Memory : 1
Maximum Size : 1920 x 1200 pixels
Format : Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
Audio
Sampling Rate 24 bits/48 kHz
Input Connectors HDMI : HDMI type A x 4
AUDIO INPUT : RCA pin type
Output Connectors HDMI : HDMI type A x 4
AUDIO OUTPUT : RCA pin type
PHONES : Stereo mini type
Input Level AUDIO INPUT :-10 (Maximum :+8 dBu
Input Impedance AUDIO INPUT :15 k ohms
Output Level AUDIO OUTPUT : -10 dBu (Maximum : +8 dBu)
PHONES : 72 mW + 72 mW (32 ohms)
Output Impedance AUDIO OUTPUT :1k ohms
PHONES : 10 ohms
Formats HDMI : Linear PCM, 24 bits, 48 kHz, 2 ch
Processing Mixer : 4 ch (Delay : Maximum 500 ms, Audio Follow)
Test Tone Generator
Other
External Connectors REMOTE : RS-232 DB-9 type (Male) x 1 *for Remote Control
USB MEMORY : USB A type x 1 (USB Memory)
Preset Memory 16
*auto Memory Function
Power Supply AC Adaptor
Current Draw 2.1A
Power consumption 25W
Operation Temperature +0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions 328 (W) x 117 (D) x 57 (H) mm
12-15/16 (W) x 4-5/8 (D) x 2-1/4 (H) inches
Weight 1.2Kg
2 lbs 11oz
Accessories Owner's manual
Ac Adaptor
Power cord
Notes * 0 dBu = 0.775 Vrms
