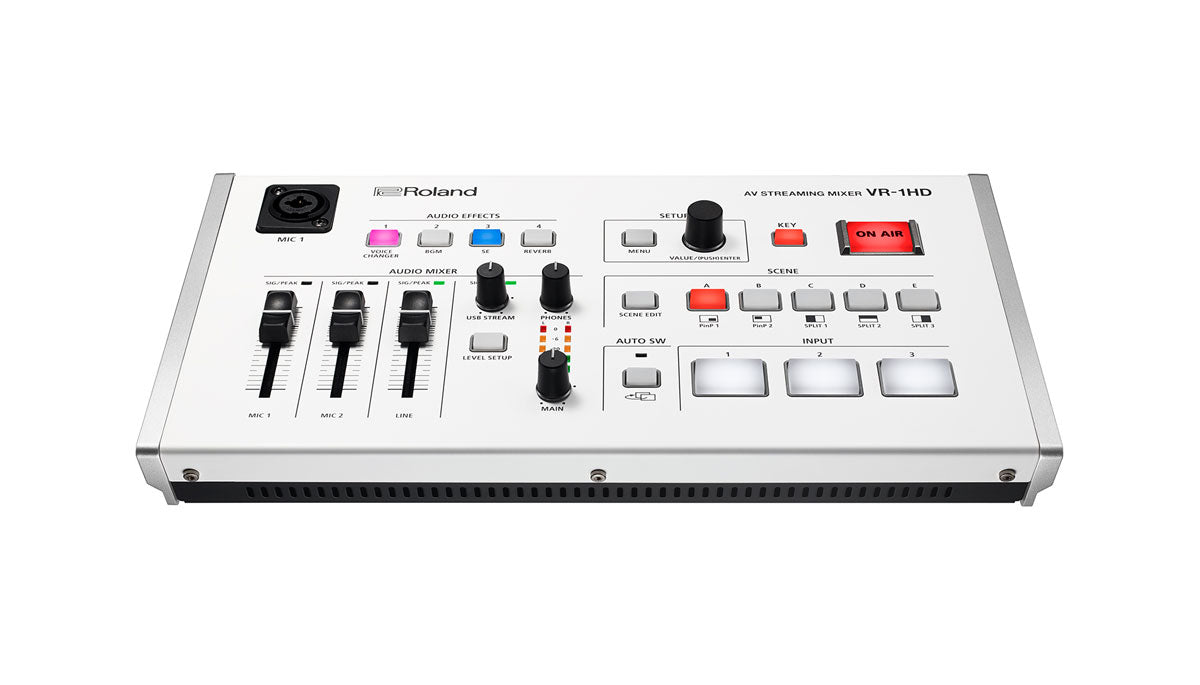

Roland VR-1HD Front

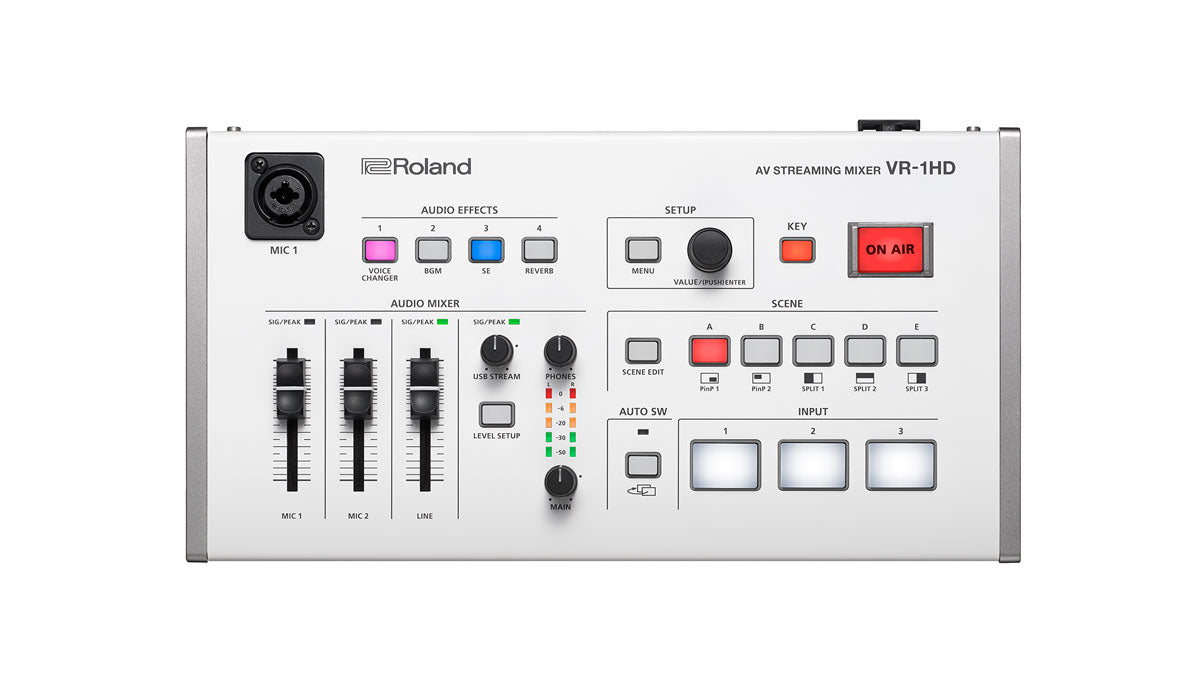

Roland VR-1HD Top

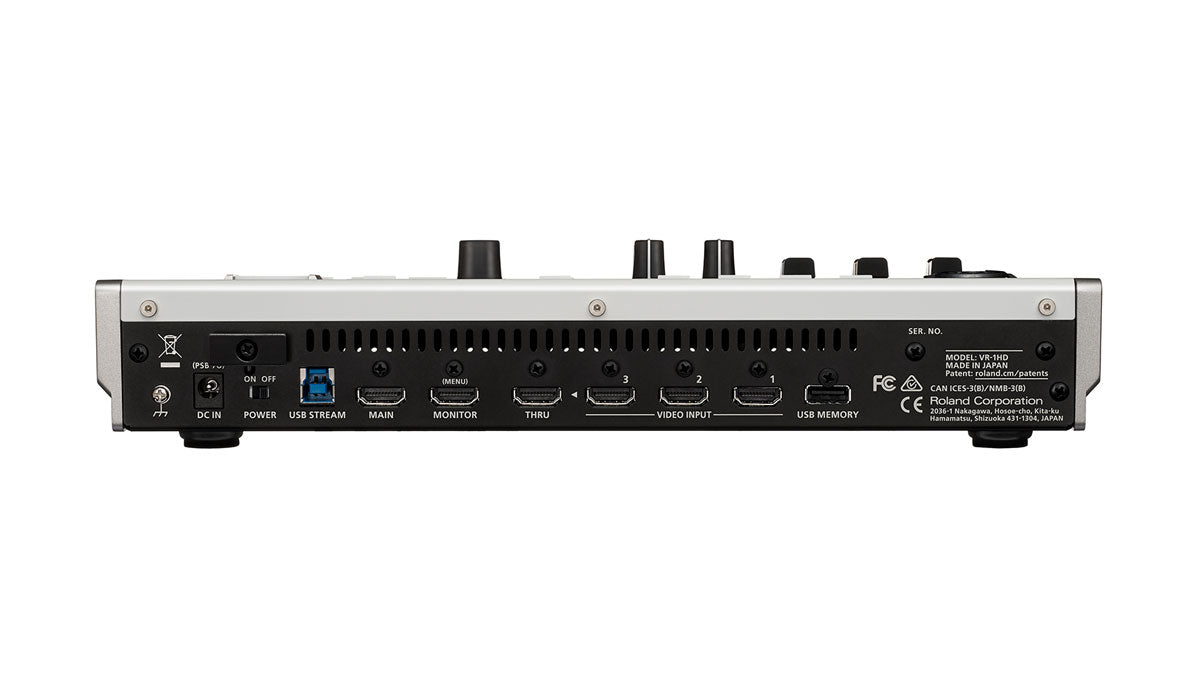

Roland VR-1HD Back View

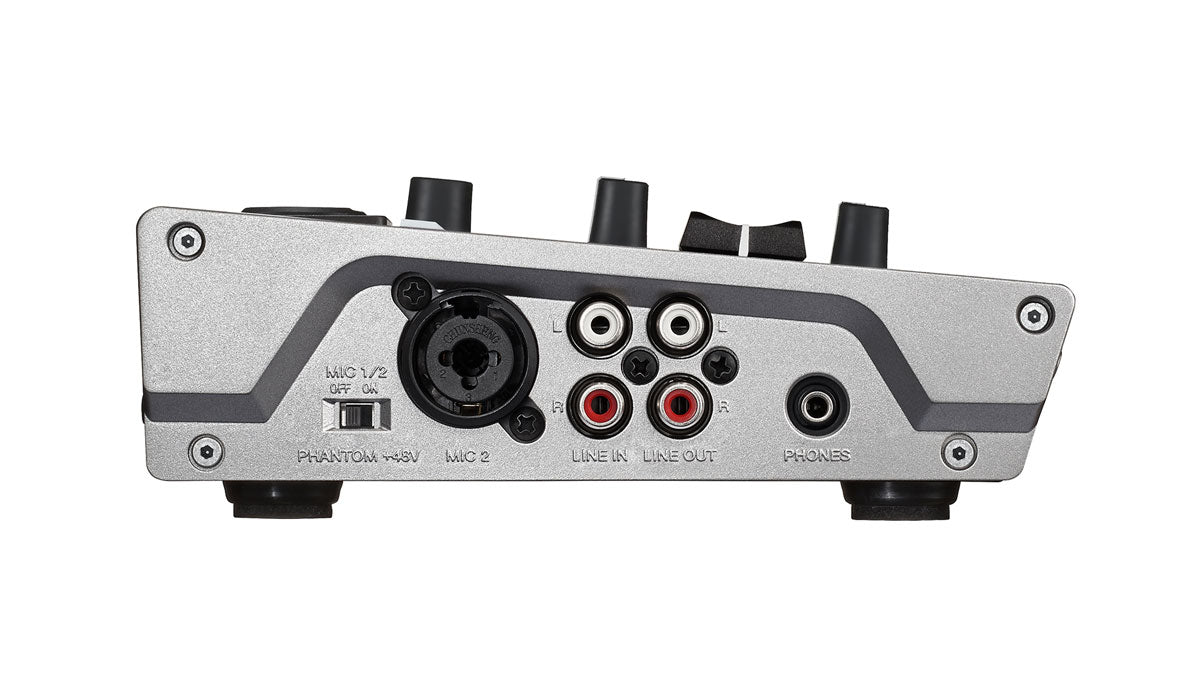

Roland VR-1HD Side View
  • SKU: VR-1HD

Roland VR-1HD AV Streaming Mixer

$1,845.00
  • Vendor: Roland
  • Product Type: Production Switchers

Engage your followers with pro-style switching of your live-streamed content using the VR-1HD AV Streaming Mixer from Roland. The VR-1HD AV mixer can switch up to three HDMI inputs and stream up to 1080p30 Full HD video.

Combine cameras, webcams, games, smartphones, and tablets. The VR-1HD AV mixer is compatible with multiple video formats and incorporates two XLR mic inputs and dedicated line inputs for adding professional audio to your stream.

Video Follows Audio, Beat Sync Switching, and Auto Scan modes provide three options for single-operator switching—no director is required. An Auto Mixing function enables you to preset audio preferences so your sound remains balanced with your selected channels receiving priority.

The VR-1HD AV Streaming Mixer features five Scene Presets that work with your editing software to create layered looks, a PiP (Picture-in-Picture) function, and a keying function. Control the mixer using your computer and pair it with a separately available top-mounted gooseneck mic for hands-free performing when using Auto Switching.

Real-Time Engagement

Command your audience's attention with live-switched content

Plug-and-Play Broadcast Studio

Mix and match a variety of video and audio inputs via three HDMI ports and two XLR/TRS combo inputs

Scene Switching & Effects

PiP (Picture in Picture), keying, and five preset scene buttons work with your editing software to produce dynamic, layered video

Three Auto Switching Modes

Video Follows Audio, Beat Sync, and Auto Scan switching modes enable you to concentrate on your performance, even without a director

Auto Mixing Audio Mode

Preset input priorities, eliminate input competition, and balance audio with the Auto Mixing function

Audio Controls & Effects

Equalizers, Gate Settings, Compressors, Stingers, and Voice Transformers enable you to customize your audio output

Full HD Broadcasting

Connects to your computer via USB 3.0 (Type-B) for up to 1080p30 Full HD broadcasting

For further information check out proav.roland.com

Video Processing 4:4:4 (Y/Pb/Pr), 10-bit
Input Connectors VIDEO INPUT 1--3 connectors: HDMI type A x 3
* HDCP Supported.
* Multi-format Supported
Output Connectors MAIN connector: HDMI type A
* HDCP Supported
MONITOR connector: HDMI type A
* HDCP Supported
THRU connector: HDMI type A
* HDCP Supported
USB STREAM port: USB B type
Input Formats 480/59.94i
576/50i
480/59.94p
576/50p
720/59.94p, 720/50p
1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz)
SVGA (800 x 600/60 Hz)
XGA (1024 x 768/60 Hz)
HD (1280 x 720/60 Hz)
WXGA (1280 x 800/60 Hz)
SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/ 60 Hz)
SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz)
FHD (1920 x 1080/60 Hz)
WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200, 60 Hz: Reduced blanking
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Output Formats
MAIN, MONITOR Connectors 720/59.94p, 720/50p
1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
XGA (1024 x 768/60 Hz) (*1)
WXGA (1280 x 800/60 Hz) (*1)
WXGA (1280 x 800/60 Hz) (*1)
SXGA (1280 x 1024/60 Hz) (*1)
FWXGA (1366 x 768/60 Hz) (*1)
SXGA+ (1400 x 1050/60 Hz) (*1)
UXGA (1600 x 1200/60 Hz) (*1)
FHD (1920 x 1080/60 Hz)
WUXGA (1920 x 1200/60 Hz)
The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
(*1) Output refresh rate is 75 Hz when frame rate is set to 50 Hz.
USB STREAM Port 854 x 480/29.97p, 854 x 480/25p, 854 x 480/59.94p, 854 x 480/50p
720/29.97p, 720/25p, 720/59.94p, 720/50p
1080/29.97p, 1080/25p
* The video signal frame rate can be selected at the SYSTEM menu (59.94 Hz or 50 Hz).
Still Image Maximum Size: 1920 x 1200 pixels
Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
* It can be loaded up to 2 files from USB memory at startup.
Video Effects Scene: PinP, Split
Transition: Black fade, Mix fade
Key Composition: Luminance key
Other: Still Image playback, Output fade (Audio, Video: WHITE or BLACK), Test pattern output
Audio Processing Sample rate: 48 kHz, 24 bits
Audio Formats VIDEO INPUT 1--3 connectors: Linear PCM, 48 kHz, 24 bits, stereo
USB STREAM port: Linear PCM, 48 kHz, 16 bits, stereo
Input Connectors VIDEO INPUT 1--3 connectors: HDMI type A
MIC IN 1--2 jacks: Combo type (XLR, 1/4-inch TRS phone), phantom power (DC 48 V, 10 mA Max)
LINE IN jacks: RCA phono type
USB STREAM port: USB B type
Output Connectors MAIN connector: HDMI type A
MONITOR connector: HDMI type A
LINE OUT jacks: RCA phono type
USB STREAM port: USB B type
PHONES jack: Stereo miniature phone type
Nominal Input Level MIC IN 1--2 jacks: -60--+4 dBu (Maximum input level: +28 dBu)
LINE IN jacks: -10 dBu (Maximum input level: +8 dBu)
Input Impedance MIC IN 1--2 jacks: Minimum 10 k ohms (balanced, HEAD AMP GAIN: 0--+17 dBu), Minimum 5 k ohms (balanced, HEAD AMP GAIN: +17--+64 dBu)
LINE IN jacks: 15 k ohms
Nominal Output Level LINE OUT jacks: -10 dBu (Maximum input level: +8 dBu)
PHONES jack: 92 mW + 92 mW (32 ohms)
Output Impedance LINE OUT jacks: 1 k ohms
PHONES jack: 10 ohms
Audio Effects Auto mixing, Echo canceller, Howling canceller, EQ, Delay, Compressor, HPF, Gate, Reverb, Limiter, Voice changer
Audio Player Number of Players: 4
Data Format: WAV (Linear PCM, 48 kHz, 16 bits stereo/44.1 kHz, 16 bits, stereo)
Connectors USB MEMORY port (HOST): USB A type (For USB flash drive, Still image, Audio player)
USB STREAM port (DEVICE): USB B type (For USB-VIDEO (USB 3.0), USB-AUDIO stereo (USB 2.0): 1 IN/1 OUT, Remote control)
DC IN jack
Functions Scene memory : 5
Panel lock function
EDID emulator
Auto switching (Auto scan, Beat sync switching, Video follow audio)
Power Supply AC Adaptor
Current Draw 2 A
Power Consumption 24 W
Operation Temperature +0 to +40 degrees Celsius (+32 to +104 degrees Fahrenheit)
Dimensions 314 (W) x 169 (D) x 66 (H) mm (12-3/8 (W) x 6-11/16 (D) x 2-5/8 (H) inches)
Weight 1.6 kg (3 lbs 9 oz)
Accessories Startup Guide
Leaflet “USING THE UNIT SAFELY”
AC adaptor
Power cord
