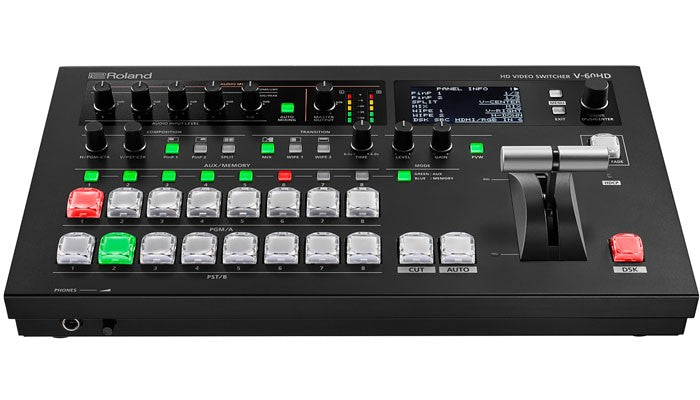

Roland V-60HD Hero

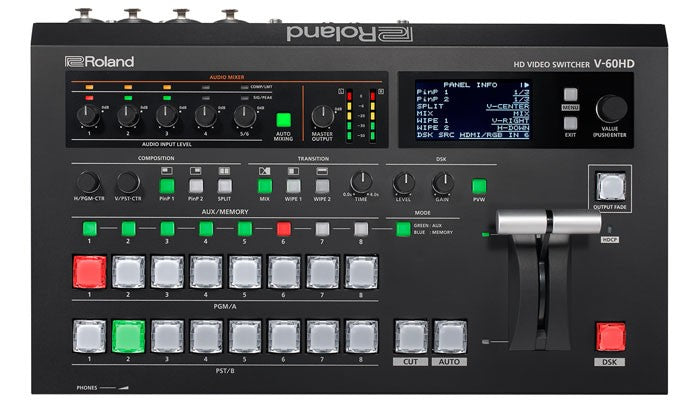

Roland V-60HD Top

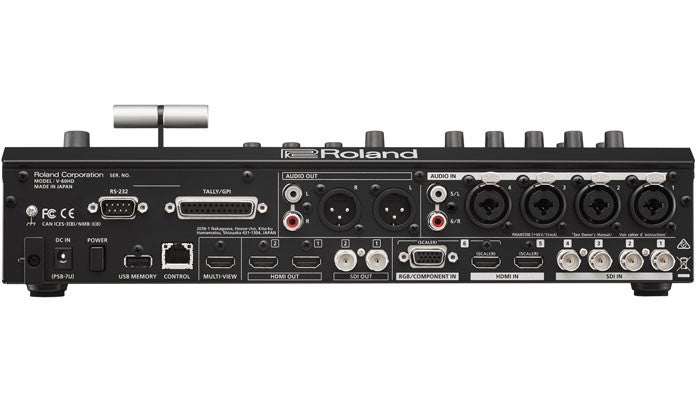

Roland V-60HD Rear

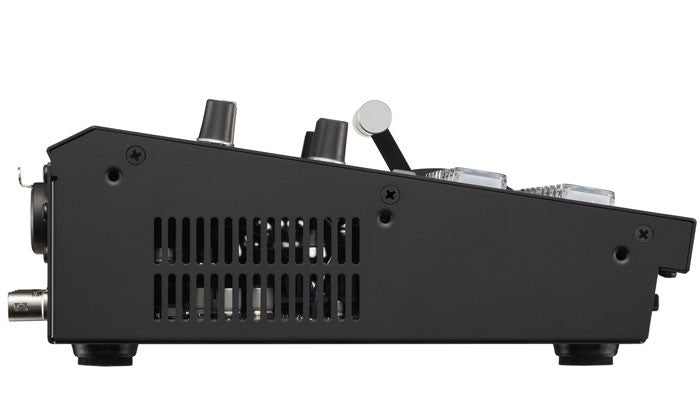

Roland V-60HD Side
  • SKU: V60HD

Roland V-60HD

$4,179.00
  • Vendor: Roland
  • Product Type: Production Switchers

The V-60HD offers advanced audio functionality including multi-channel embedded audio, XLR/TRS and RCA analog inputs, and multichannel embedded audio to two SDI outputs, plus comprehensive dynamics and auto-mixing. The auto mixing function will automatically balance audio levels from multiple microphones and video sources freeing up the operator to focus on switching the video for the event.

The four SDI inputs and two HDMI inputs are perfect for switching cameras and computers at the same time for dynamic presentations.
Not all cameras support full 1080p so the de-interlacer on the SDI inputs allows allows you to mix and match 1080i and 1080p SDI video sources multiple camera without external converters.

A dedicated AUX bus can be assigned to any of the four discreet SDI or HDMI outputs providing seamless switching from the 8-input channels (4 SDI, 2 HDMI or 1 RGB and 2 Still Images). Dedicated AUX layer cross-point buttons ensures quick operation and seamless switching.

An easy-to-use software application V-60HD RCS for Mac or PC provides setup and control information for the Roland V-60HD through a network port. Copy, store and recall memory (backup) and preset settings. The free RCS application is expected to release early Q2 2018.
The V-60HD is equipped with an RS-232 port for control and operation remotely from a touch panel or other programmable interface device.

For further information check out the Roland website

VIDEO
Video Processing 4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors SDI IN 1--4: BNC type x 4
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI IN 5--6: HDMI type A x 2
* HDCP Supported* Multi-format Supported
RGB/COMPONENT IN 6: HD DB-15 type x 1
* INPUT 6: HDMI or RGB/COMPONENT selected.
* Multi-format Supported
Output Connectors SDI OUT 1--2: BNC type x 2
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
* HDCP Supported
Input formats SDI IN 1--4: Conforms to SMPTE 296M, SMPTE 274M
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M (FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
HDMI IN 5:
HDMI/RGB/COMPONENT IN 6:
480/59.94i, 576/50i, 480/59.94p, 576/50p
720/59.94p, 720/50p, 1080/59.94i, 1080/50i
1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
*The refresh rate is the maximum value of each resolution.
* Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SYSTEM menu (59.94 or 50).
Still Image Windows(R) Bitmap File (.bmp)
* Maximum 1920 x 1080 pixels, 24-bit color, uncompressed.
* It can be stored up to 2 files in the internal memory.
Output formats SDI OUT 1--2: Conforms to SMPTE 296M, 274M
HDMI OUT 1--2:
720/59.94p, 720/50p (SYSTEM FORMAT = 720p)
1080/59.94i, 1080/50i (SYSTEM FORMAT = 1080i)
1080/59.94p, 1080/50p (SYSTEM FORMAT = 1080p)
* The video signal frame rate can be selected at the SYSYTEM menu (59.94 or 50).
HDMI MULTI-VIEW: 1080/59.94p, 1080/50p
Video Effects Transition: CUT, MIX (DISSOLVE/FAM/NAM), WIPE (30 types)Composition: PinP
(SQUARE, CIRCLE, HEART, DIAMOND), SPLIT (4 types), DSK (Luminance Key, Chroma Key)
Others: Flip horizontal, Output fade, Still Image Capture, Still Image Playback, Test pattern output
AUDIO
Audio Processing Sampling rate: 24 bits/48 kHz
Audio formats SDI IN: Linear PCM, 24 bits/48 kHz, 2ch (Conforms to SMPTE 299M)
SDI OUT: Linear PCM, 24 bits/48 kHz, 8ch (Conforms to SMPTE 299M)
HDMI IN/OUT: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors Digital: SDI IN 1--4: BNC tyep x 4
HDMI IN 5--6 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN 1--4: Combo type (XLR, 1/4-inch TRS phone), phantom power
AUDIO IN 5--6: RCA phono type
Phantom Power DC 48 V (unloaded maximum), 10 mA (maximum load)
* Current value per channel
Output Connectors Digital: SDI OUT 1--2: BNC type x 2
HDMI OUT 1--2: HDMI type A x 2
HDMI MULTI-VIEW: HDMI type A x 1
Analog: AUDIO OUT: XLR type
AUDIO OUT: RCA phono type
PHONES: Stereo 1/4-inch phone type
Input Level AUDIO IN 1--4: -60--+4 dBu (Maximum: +22 dBu)
AUDIO IN 5--6: -10 dBu (Maximum: +8 dBu)
Input Impedance AUDIO IN 1--4: 10 k ohms (HEAD AMP GAIN 0--23 dB), 5 k ohms (HEAD AMP GAIN 24--+64 dBu)
AUDIO IN 5--6: 15 k ohms
Output Level AUDIO OUT (XLR): +4 dBu (Maximum: +22 dBu)
AUDIO OUT (RCA): -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance AUDIO OUT (XLR): 600 ohms
AUDIO OUT (RCA): 1 k ohm
PHONES: 10 ohms
Audio Effects Auto Mixing, EQ, Delay, Compressor, HPF, Gate, Multi-Band Compressor, Limiter
OTHERS
Other Connectors USB: USB A type (for USB memory)
TALLY/GPI: DB-25 type (Female)(Tally: 12, GPI: 8)
RS-232: DB-9 type (Male) *for Remote Control
LAN: RJ45 100BASE-TX *for Remote Control
Other Functions MEMORY (8 types)
Panel lock function
EDID Emulator
Smart Tally
Display Graphic LCD: 128 x 64 dots
Power Supply AC Adaptor
Current Draw 3.1 A
Power Consumption 37.0 W
Operation Temperature +0 to +40 degrees Celsius
Dimensions 356 (W) x 221 (D) x 96 (H) mm
Weight (excluding AC adaptor) 3.0 kg
Accessories Owner's Manual, AC adaptor, Power cord
*Specifications correct at time of publication
