Magewell USB Capture SDI Plus

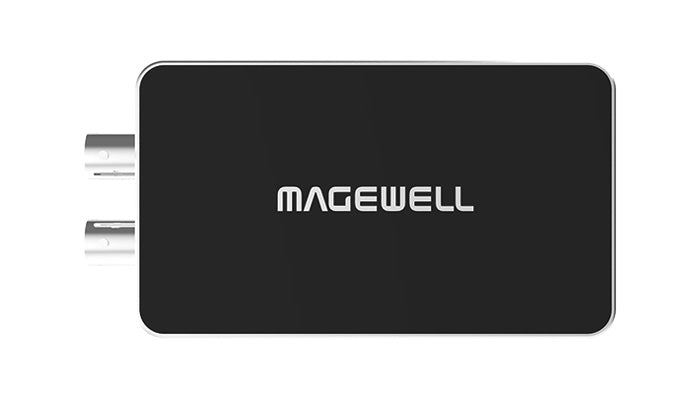

Magewell USB CAPTURE SDI PLUS - Top

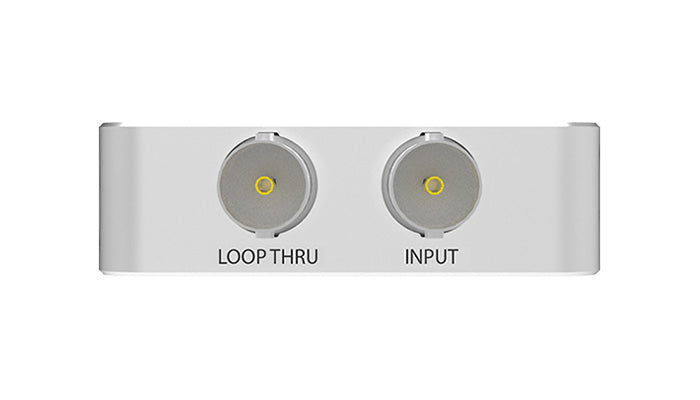

Magewell USB CAPTURE SDI PLUS - SDI Inputs

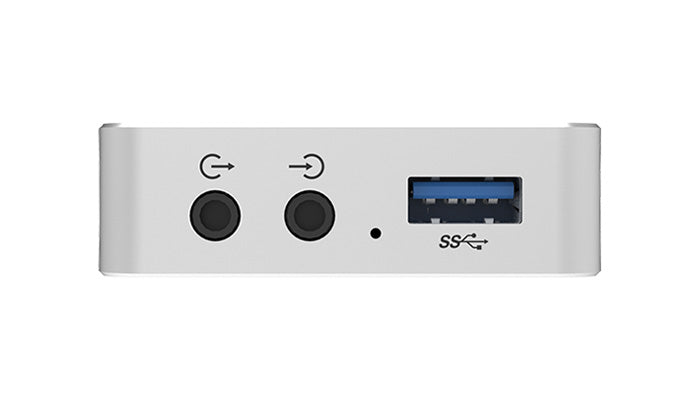

Magewell USB CAPTURE SDI PLUS - Inputs

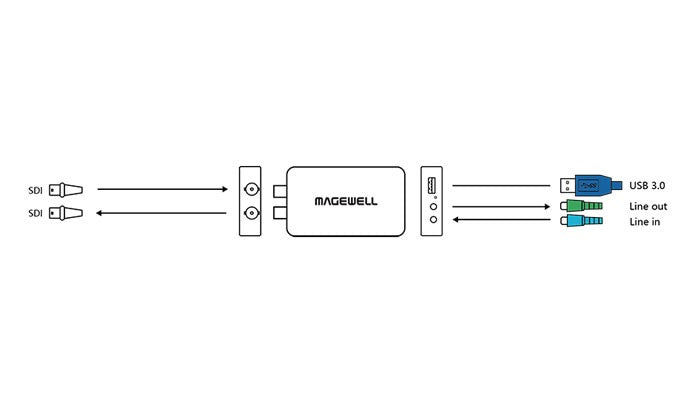

Magewell USB Capture SDI Plus connections
  • SKU: 32050

Magewell USB Capture SDI Plus

$599.00
  • Vendor: Magewell
  • Product Type: Capture & Playback

One channel 2K capture device.

Features

  • Capture SD/HD/3G/ 2K SDI + embedded audio
  • Loop-through SD/HD/3G/2K SDI
  • Audio input via Line in
  • Extract SDI embedded audio and output via Line out
  • Support 4Kp60 4:2:0 input.
  • Capture from the newest game consoles such as PS4 Pro and XBOX One S.
  • Automatically down scale to 2K for recording or streaming

Get the most of your Magewell device with these software driver utilities from Magewell.

Find out more information on the Magewell USB Capture SDI Plus over at the Magewell website.

The Streaming Guys are the Australian Distributors of the Magewell Video Capture Family - Great Profits - Reseller Enquiries Welcome!

Supported OS Windows:
Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture):
Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
CentOS 6.5/7 (x86 & x64)
Fedora 25/26/27 (x86 & x64)
Red hat 6.5 and above (x86 & x64)
Other Linux OS with kernel version 2.6.35 and above
Mac:
OS X 10.9/10.10/10.11
macOS 10.12/10.13
Chrome OS
Recommended OS (tested) Windows:
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux:
Ubuntu 12.04/14.04/16.04 (x86 & x64)
Ubuntu 17.04/17.10 (x64)
CentOS 6.5/7.2 (x86 & x64)
Fedora 25/26 (x64)
Red hat 6.5 (x86 & x64)
Mac:
OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
macOS 10.12/10.13.2/10.13.3
Supported APIs Windows:
DirectShow
Wave API/DirectSound/WASAPI
Linux:
V4L2
ALSA
OS X/macOS:
QuickTime
AV Foundation
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software
Input Interfaces BNC:
SD/HD/3G SDI
3.5mm audio jack:
unbalanced Line In interface
Host Interfaces USB 3.0:
compatible with USB 2.0
compatible with USB 3.1 Gen 1
Output Interfaces 3.5mm audio jack:
unbalanced Line Out interface
Loop-through Interface BNC:
SDI loop-through interface
Input Features Support for up to 2048×1080 input resolution
SDI Specific Features Integrated cable equalizer supporting cable lengths up to 140M for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
Support for 2K (2048×1080) mode
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for 10/12-bit color depth
Support for extraction of SMPTE 352 payload identifier
Support for up to 2 (mono) audio channels at 48KHz
Support for extraction of audio formation information & channel status data
Limited support of 3Gb-DS: only the first stream can be captured
Limited support for capture of the first link of dual link interfaces:
   YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
   YCbCr 4:4:4 10-bit: captured as 4:2:2
   RGB 4:4:4: R/B sub-sampled
Analog Audio Features Extract the embedded SDI audio and output via 3.5mm unbalanced Line out
Capture analog audio via 3.5 mm unbalanced Line In interface
Video Capture format Support for capture resolutions up to 2048×1080
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
   1920×1080 YUY2 (up to 70fps)
   1920×1080 RGB24 (up to 60fps)
Support for YUY2 & UYVY4:2:2 8-bit
Support for RGB24 & RGB32 4:4:4 8-bit
The default capture format is YUY2. More capture format can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709 color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor 110.7mm (L) x 56.8mm (W) x 17mm (H)
Accessories USB 3.0 cable
Power Consumption 5V max current: ~0.5 A
max power consumption: ~2.5 W
Working Environment Operating temperature: 0 to 50 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

*Specifications correct at time of publication
