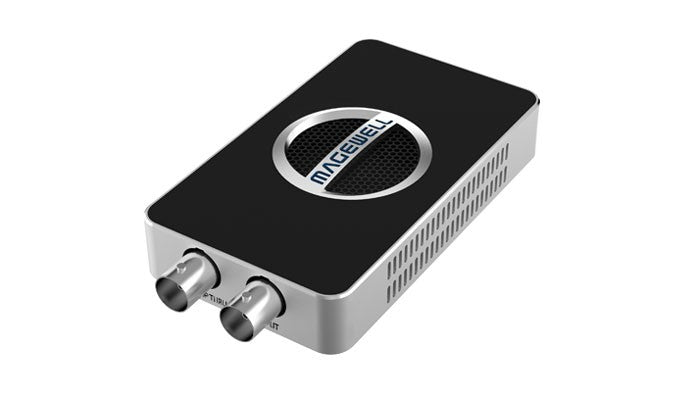

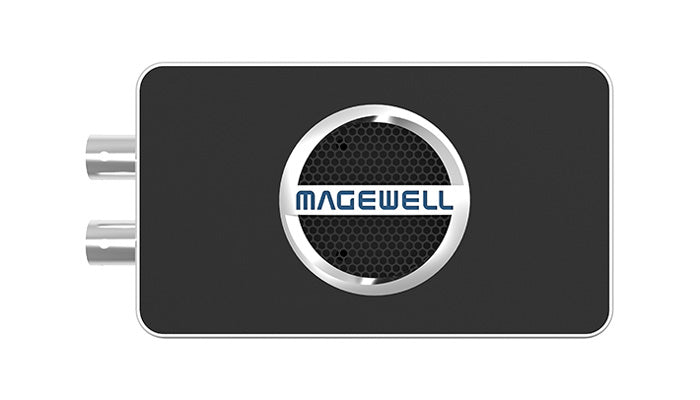

Magewell USB Capture SDI 4K Plus

MagewellSKU: 321000000

Price:
Sale price$1,073.00

Shipping Information

We offer the following shipping options for all items except software downloads and bulky items:

Standard Shipping

  • 4 - 6 working days

Express Shipping

  • 1 - 3 working days (Metro East Coast)
  • Please contact us for a quote for other areas

    Some items may be considered Bulky and therefore attract a greater shipping charge. This is the total shipping charge and is not in addition to our Standard or Express Shipping charges.

    All orders (in stock items) must be placed by 12.30pm AEST/AEDT for same day despatch. Orders placed after 12.30pm, during weekends, holidays or after hours will be processed the following business day.

    We do our best to maintain stock of our most popular items, all other items are normally despatched within a few days however we will advise you if your item is not in stock within 24 hours (excluding weekends and public holidays) and will advise of the approximate delivery time.

    We primarily use Australia Post, TNT, StarTrack Express, Couriers Please, TFM Logistics and Toll Express depending on the delivery location and shipping option chosen.

    Delivery timings are approximate and may differ due to circumstances outside of our control such as flight delays, traffic incidents, extreme weather etc.

    Software downloads that do not require delivery of a physical product do not attract a shipping charge. Serial Numbers will be emailed within 24 hours, turnaround is often within a few hours.

    Description

    Supported OS Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (Ubuntu 12.04–16.10, CentOS 7)
    OS X 10.9–10.11
    macOS 10.12
    Chrome OS
    Supported APIs Windows: DirectShowWave, API/DirectSound/WASAPI
    Linux: V4L2, ALSA
    OS X/macOS: QuickTime, AV Foundation
    Supported Software VLC
    VirtualDub
    OBS
    XSplit
    vMix
    VidBlaster
    Wirecast
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software

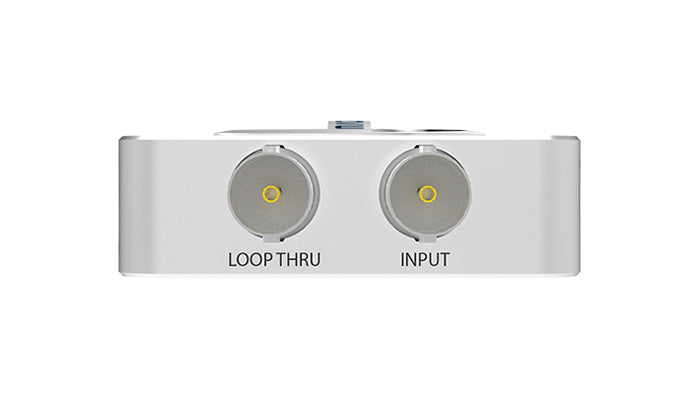

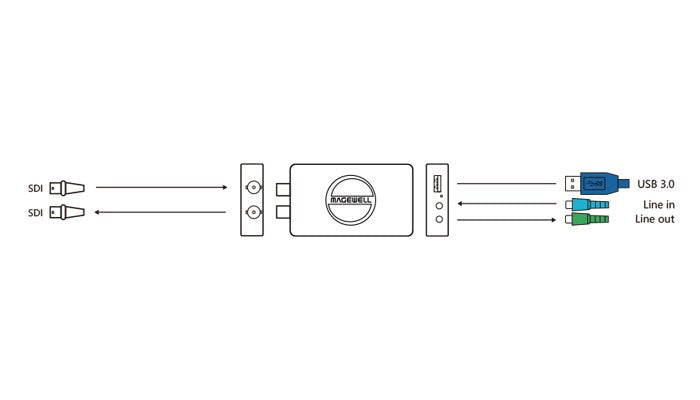

    Input Interfaces BNC: SD/HD/3G/6G SDI

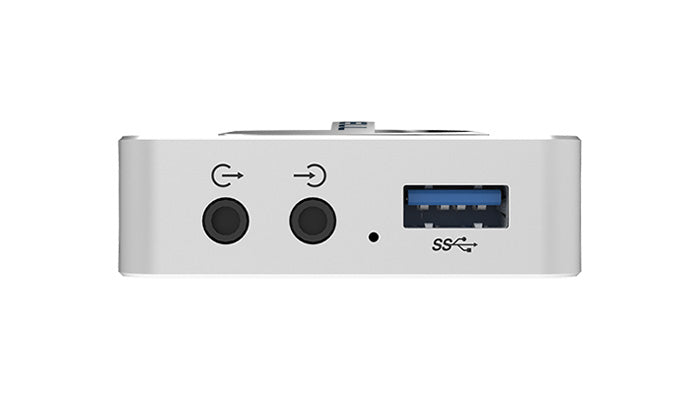

    3.5mm audio jack: unbalanced Line In interface
    Host Interfaces USB 3.0: compatible with USB 2.0, compatible with USB 3.1 Gen 1
    Output Interfaces 3.5mm audio jack: unbalanced Line Out interface
    Loop-through Interface BNC: SDI loop-through interface
    Input Features Support for up to 4096×2160 input resulution
    SDI Specific Features Integrated cable equalizer supporting cable lengths up to 150M for 3G-SDI signals
    Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G (SMPTE 2081) standards
    Support for 2K (2048×1080) & 4K (4096×2160) mode
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for 10/12-bit color depth
    Support for extraction of SMPTE 352 payload identifier
    Support for up to 8 (mono) audio channels at 48KHz
    Support for extraction of audio formation information & channel status data
    Limited support of 3Gb-DS: only the first stream can be captured
    Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60, YCbCr 4:4:4 10-bit: captured as 4:2:2, RGB 4:4:4: R/B sub-sampled
    Analog Audio Features Extract the embedded SDI audio and output via 3.5mm unbalanced Line out
    Capture analog audio via 3.5 mm unbalanced Line In interface
    Video Capture format Support for capture resolutions up to 4096×2160
    Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.): 1920×1080 YUY2 (up to 90fps); 3840×2160 NV12 (up to 30fps)
    Support for NV12 & l420 4:2:0 8-bit (up to 4096×2160)
    Support for YUY2 & UYVY4:2:2 8-bit (up to 4096×2160)
    Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048×2160)
    The default capture formats are YUY2 & NV12. More capture format can be set using USB Capture Utility.
    Video Processing Features Video processing pipelines with 640 Mpixels/s processing bandwidth
    Video cropping
    Video scaling
    Video de-interlacing: Weave; Blend top & bottom field; Top field only; Bottom field only
    Video aspect ratio conversion: Auto or manual selection of input aspect ratio; Auto or manual selection of capture aspect ratio; Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
    Video color format conversion: Auto or manual selection of input color format & quantization range; Auto or manual selection of capture color format, quantization range & saturation range; Support for RGB, YCbCr 601, YCbCr 709 color formats; Support for Limited or Full quantization range; Support for Limited, Full & ‘Extended gamut’ saturation range
    Video frame rate conversion
    Vertical flip and mirror
    Multiple devices on one computer Support for connecting multiple USB devices to one system
    Support for setting the device serial number as the device name shown in the system using USB Capture Utility
    SDK The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
    Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
    LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
    Form Factor 110.7mm (L) x 56.8mm (W) x 17mm (H)
    Accessories USB3.0 cable
    Power Consumption 5V max current: ~0.86A
    max power consumption: ~4.3W
    Working Environment Operating temperature: 0 to 50 deg C
    Storage temperature: –20 to 70 deg C
    Relative Humidity: 5% to 90% non-condensing

    *Specifications correct at time of publication
