Description
| Supported OS | Windows Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) |
|---|---|
| Linux (support x86, x64 & ARM architecture): Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64) CentOS 6.5/7 (x86 & x64) Fedora 25/26/27 (x86 & x64) Red hat 6.5 and above (x86 & x64) Other Linux OS with kernel version 2.6.35 and above | |
| Mac: OS X 10.9/10.10/10.11 macOS 10.12/10.13 | |
| Chrome OS | |
| Recommended OS (tested) | Windows: Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64) |
| Linux: Ubuntu 12.04/14.04/16.04 (x86 & x64) Ubuntu 17.04/17.10 (x64) CentOS 6.5/7.2 (x86 & x64) Fedora 25/26 (x64) Red hat 6.5 (x86 & x64) | |
| Mac: OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4 macOS 10.12/10.13.2/10.13.3 | |
| Supported APIs | Windows: DirectShow Wave API/DirectSound/WASAPI |
| Linux: V4L2 ALSA | |
| OS X/macOS: QuickTime AV Foundation | |
| Supported Software | VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software |

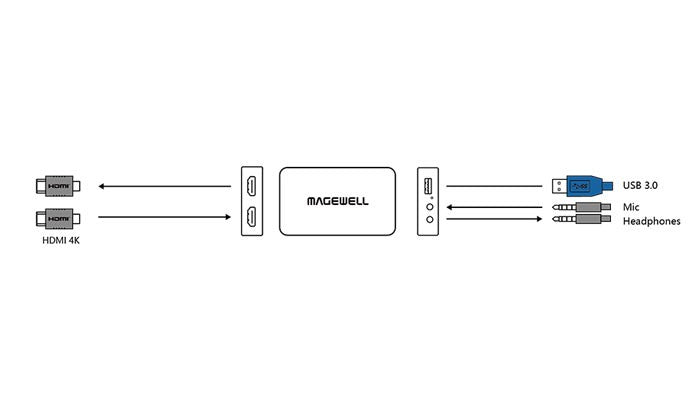

| Input Interfaces | HDMI: DVI-D 1.0 HDMI 1.4 |

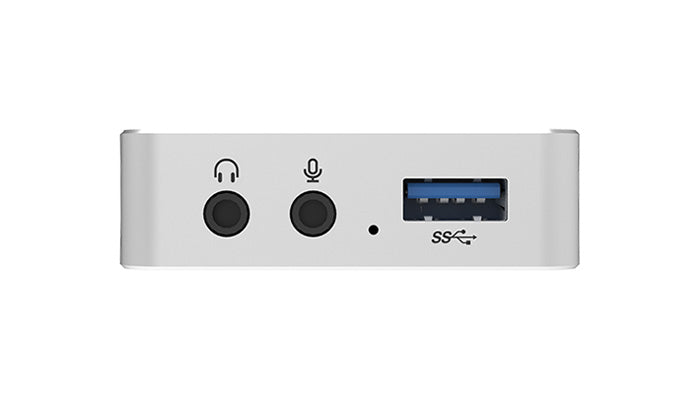

| 3.5mm audio jack: Microphone interface | |
| Host Interfaces | USB 3.0: compatible with USB 2.0 compatible with USB 3.1 Gen 1 |
| Output Interfaces | 3.5mm audio jack: headphones interface |

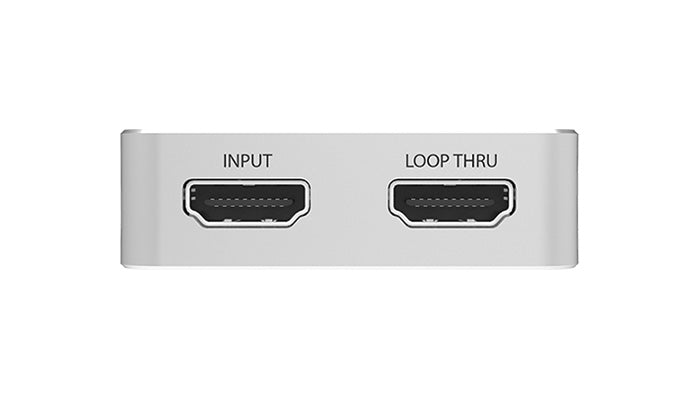

| Loop-through Interface | HDMI: HDMI loop-through interface |
| Input Features | Support for input video resolutions up to 4096×2160 |
| HDMI Specific Features | 297MHz HDMIreceiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction ofAVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for up to 4096×2160 4:4:4/4:2:2 30fps or 4096×2160 4:2:0 60fps input signals For 4:2:0 input signals, the horizontal and vertical resolution will be reduced to 1/2 for capturing For 4:4:4/4:2:2 input signal at more than 170MHz, the horizontal resolution will be reduced to 1/2 for capturing Support for 2 channel ISC60958 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode. |
| Analog Audio Features | Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out Capture of analog audio via 3.5 mm microphone interface Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer. |
| Video Capture format | Support for capture resolutions up to 2048×2160 Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.): 1920×1080 YUY2 (up to 70fps) 1920×1080 RGB24 (up to 60fps) Support for YUY2 & UYVY4:2:2 8-bit Support for RGB24 & RGB32 4:4:4 8-bit The default capture format is YUY2. More capture format can be set using USB Capture Utility. |
| Video Processing Features | Video processing pipelines with 160 Mpixels/s processing bandwidth |
| Video cropping | |
| Video scaling | |
| Video de-interlacing: Weave Blend top & bottom field Top field only Bottom field only | |
| Video aspect ratio conversion: Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) | |
| Video color format conversion: Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range | |
| Video frame rate conversion | |
| Vertical flip and mirror | |
| Multiple devices on one computer | Support for connecting multiple USB devices to one system Support for setting the device serial number as the device name shown in the system using USB Capture Utility |
| SDK | The USB Capture SDK provide functions including signal status extraction, capture configuration, etc. |
| Firmware Upgrade | Multiple devices in one system can be upgraded simultaneously |
| LED Indicator | Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed. |
| Form Factor | 98.1mm (L) x 56.8mm (W) x 17mm (H) |
| Power Consumption | 5V max current: 900mA max power consumption：~4.5W |
| Working Environment | Operating temperature: 0 to 50 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing |
*Specifications correct at time of publication
