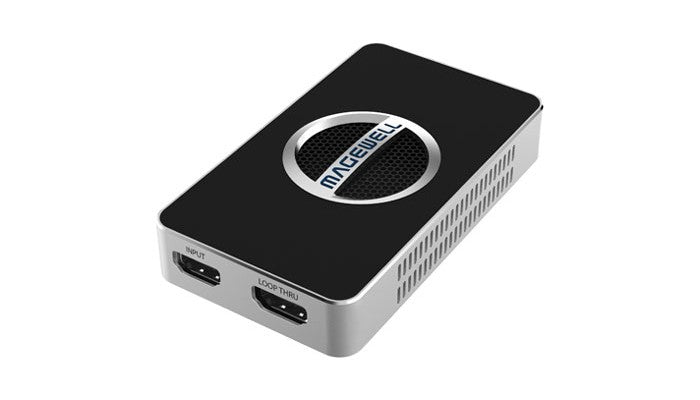

Magewell USB Capture HDMI 4K Plus

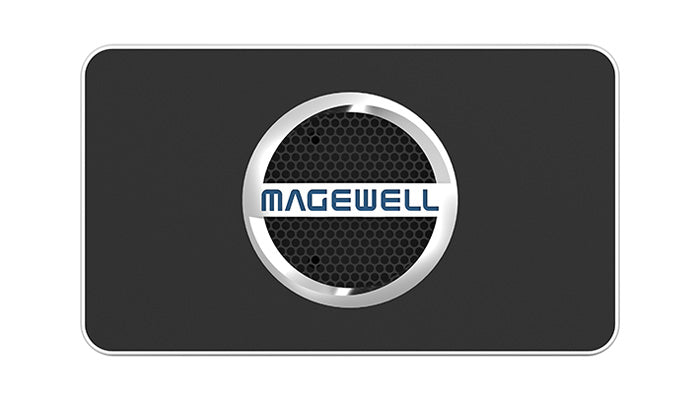

Magewell USB CAPTURE HDMI 4K PLUS - Top

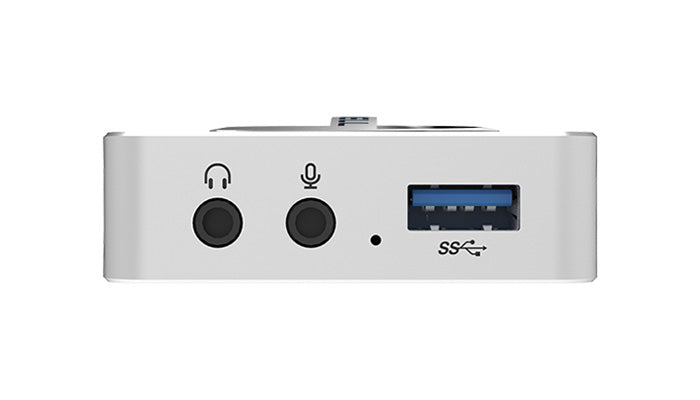

Magewell USB CAPTURE HDMI 4K PLUS - Inputs

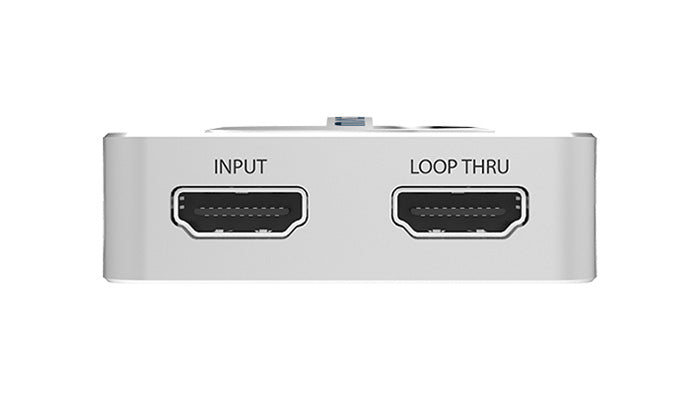

Magewell USB CAPTURE HDMI 4K PLUS - HDMI Inputs

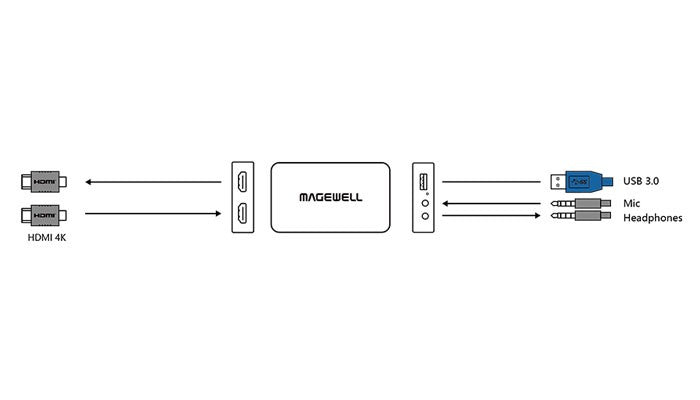

Magewell USB Capture HDMI 4K Plus connections
  • SKU: 32090

Magewell USB Capture HDMI 4K Plus

$699.00
  • Vendor: Magewell
  • Product Type: Capture & Playback

One channel 4K capture device.

  • Capture HDMI + embedded audio
  • Loop-through HDMI signal
  • Audio input via mic
  • Extract HDMI embedded audio output via headphones
  • Support HDMI 2.0, 4Kp60 4:4:4 input. Capture from the newest game consoles such as PS4 Pro and XBOX One S.

Get the most of your Magewell device with these software driver utilities from Magewell.

For more information on the Magewell USB Capture HDMI 4K Plus, check out the Magewell website.

The Streaming Guys are the Australian Distributors of the Magewell Video Capture Family - Great Profits - Reseller Enquiries Welcome!

Supported OS Windows:
Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture):
Ubuntu 12.04/14.04/16.04/17.04/17.10(x86 & x64)
CentOS 6.5/7 (x86 & x64)
Fedora 25/26/27 (x86 & x64)
Red hat 6.5 and above (x86 & x64)
Other Linux OS with kernel version 2.6.35 and above
Mac:
OS X 10.9/10.10/10.11
macOS 10.12/10.13
Chrome OS
Recommended OS (tested) Windows:
Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux:
Ubuntu 12.04/14.04/16.04 (x86 & x64)
Ubuntu 17.04/17.10 (x64)
CentOS 6.5/7.2 (x86 & x64)
Fedora 25/26 (x64)
Red hat 6.5 (x86 & x64)
Mac:
OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
macOS 10.12/10.13.2/10.13.3
Supported APIs Windows:
DirectShow
Wave API/DirectSound/WASAPI
Linux:
V4L2
ALSA
OS X/macOS:
QuickTime
AV Foundation
Supported Software VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software
Input Interfaces HDMI:
DVI-D 1.0
HDMI 1.4
HDMI 2.0
3.5mm audio jack:
Microphone interface
Host Interfaces USB 3.0:
compatible with USB 2.0
compatible with USB 3.1 Gen 1
Output Interfaces 3.5mm audio jack:
headphones interface
Loop-through Interface HDMI:
HDMI loop-through interface
Input Features Support for input video resolutions up to 4096×2160
HDMI Specific Features 600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for up to 4096×2160 4:4:4 60fps input signals
Support for 2 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
Capture of analog audio via 3.5 mm microphone interface
Integrate the functions of a USB audio card. Playback audio via 3.5 mm headphones interface. Support for recording the playback audio of the computer.
Video Capture format Support for capture resolutions up to 4096×2160
Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)
1920×1080 YUY2 (up to 90fps)
3840×2160 NV12 (up to 30fps)
Support for NV12 & l420 4:2:0 8-bit (up to 4096×2160)
Support for YUY2 & UYVY4:2:2 8-bit (up to 4096×2160)
Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048×2160)
The default capture formats are YUY2 & NV12. More capture format can be set using USB Capture Utility.
Video Processing Features Video processing pipelines with 640 Mpixels/s processing bandwidth
Video cropping
Video scaling
Video de-interlacing:
Weave
Blend top & bottom field
Top field only
Bottom field only
Video aspect ratio conversion:
Auto or manual selection of input aspect ratio
Auto or manual selection of capture aspect ratio
Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of capture color format, quantization range & saturation range
Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Vertical flip and mirror
Multiple devices on one computer Support for connecting multiple USB devices to one system
Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware Upgrade Multiple devices in one system can be upgraded simultaneously
LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor 98.1mm (L) x 56.8mm (W) x 17mm (H)
Power Consumption 5V max current: ~1.4A
max power consumption:~7W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing

*Specifications correct at time of publication
