Magewell USB Capture AIO

MagewellSKU: 321100000

Sale price$922.47

Shipping Information

We offer the following shipping options for all items except software downloads and bulky items:

Standard Shipping

  • 4 - 6 working days

Express Shipping

  • 1 - 3 working days (Metro East Coast)
  • Please contact us for a quote for other areas

    Some items may be considered Bulky and therefore attract a greater shipping charge. This is the total shipping charge and is not in addition to our Standard or Express Shipping charges.

    All orders (in stock items) must be placed by 12.30pm AEST/AEDT for same day despatch. Orders placed after 12.30pm, during weekends, holidays or after hours will be processed the following business day.

    We do our best to maintain stock of our most popular items, all other items are normally despatched within a few days however we will advise you if your item is not in stock within 24 hours (excluding weekends and public holidays) and will advise of the approximate delivery time.

    We primarily use Australia Post, TNT, StarTrack Express, Couriers Please, TFM Logistics and Toll Express depending on the delivery location and shipping option chosen.

    Delivery timings are approximate and may differ due to circumstances outside of our control such as flight delays, traffic incidents, extreme weather etc.

    Software downloads that do not require delivery of a physical product do not attract a shipping charge. Serial Numbers will be emailed within 24 hours, turnaround is often within a few hours.


    Supported OS Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (Ubuntu 12.04–16.10, CentOS 7)
    OS X 10.9–10.11
    macOS 10.12
    Supported APIs Windows:

    Wave API/DirectSound/WASAPI




    AV Foundation

    Supported Software VLC
    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software

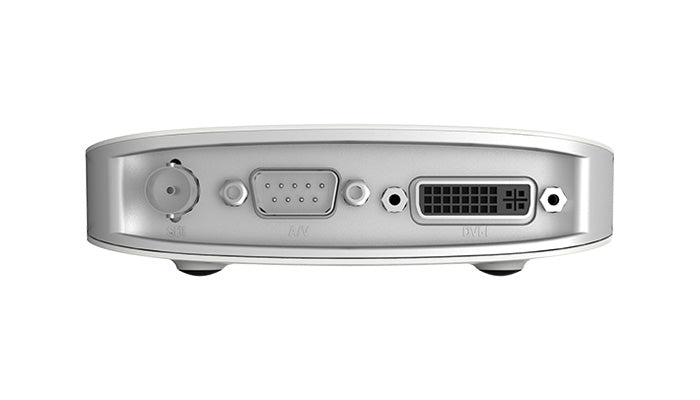

    Input Interfaces DVI-I:

    DVI 1.0
    HDMI 1.4a (via breakout cable)
    VGA (via DVI-to-VGA convertor)
    Component (via breakout cable)


    YC (S-Video)
    Composite video
    Analog audio (L+R)
    Component video


    SD/HD/3G SDI

    Host Interfaces USB 3.0:

    compatible with USB 2.0
    compatible with USB 3.1 Gen 1

    Input Features Auto scan of video input sources when there is no signal input to the currently selected input source
    Manual selection of video input source
    Auto selection of linked (embedded) audio input source when the video input source changes
    Manual selection of audio input source
    Support for input video resolutions up to 2048×2160
    VGA & Component Specific Features 12-bitADC
    Support for RGB & YCbCr (YUV) color formats
    Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
    Support for DMT, CEA, CVT, GTF video timings
    Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
    Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT recommended)
    Auto detection of RGB & YCbCr color formats
    Auto or manual sampling phase adjustment
    Auto horizontal alignment
    Support for customized video timings
    Support for customized video resolutions for CVT/GTF timings
    HDMI Specific Features 225MHz HDMI receiver
    Adaptive HDMI equalizer support for cables lengths up to 30M
    Support for customized EDID
    Support for extraction ofAVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
    Full colorimetry support
    Support for 8/10/12-bit color depths
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for up to 2-channel IEC60958 audio streams
    Support for extraction of audio formation information & channel status data
    Support for extraction of video timing information
    Support for extraction of 3D format information
    Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
    SDI Specific Features Integrated cable equalizer supporting cable lengths up to 230M for HD-SDI signals
    Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
    Support for 2K (2048×1080) mode
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for 10/12-bit color depth
    Support for extraction of SMPTE 352 payload identifier
    Support for up to 8 (mono) audio channels at 48KHz
    Support for extraction of audio formation information & channel status data
    Limited support of 3Gb-DS: only the first stream can be captured
    Limited support for capture of the first link of dual link interfaces:

    YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
    YCbCr 4:4:4 10-bit: captured as 4:2:2
    RGB 4:4:4: R/B sub-sampled

    YC & Composite Specific Features 12-bit ADC
    Support for NTSC, PAL and SECAM standards
    Auto detection of video input standard
    Analog Audio Features Capture analog audio via 3.5 mm unbalanced Line In interface
    Video Capture Formats Support for capture resolutions up to 2048×2160
    Support for capture frame rates up to 120fps (Actual capture frame rate can be limited by the USB bandwidth and internal working frequency. Typical capture frame rates on the Intel USB 3.0 controller are as follows.)

    1920×1080 YUY2 (up to 75fps)
    1920×1080 RGB24 (up to 60fps)

    Support for 4:2:2 8-bit capture format: YUY2, UYVY
    Support for 4:4:4 8-bit capture format: RGB24, RGB32The default capture format is YUY2. More capture format can be set using USB Capture Utility
    Video Processing Features Video processing pipelines with 160 Mpixels/s processing bandwidth
    Video cropping
    Video scaling
    Video de-interlacing:

    Blend top & bottom field
    Top field only
    Bottom field only

    Video aspect ratio conversion:

    Auto or manual selection of input aspect ratio
    Auto or manual selection of capture aspect ratio
    Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

    Video color format conversion

    Auto or manual selection of input color format & quantization range
    Auto or manual selection of capture color format, quantization range & saturation range
    Support for RGB, YCbCr 601, YCbCr 709 color formats
    Support for Limited or Full quantization range
    Support for Limited, Full & ‘Extended gamut’ saturation range

    Video frame rate conversion
    Vertical flip and mirror
    Multiple devices on one computer Support for connecting multiple USB devices to one system
    Support for setting the device serial number as the device name shown in the system using USB Capture Utility
    SDK The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
    Firmware Upgrade Multiple devices in one system can be upgraded simultaneously

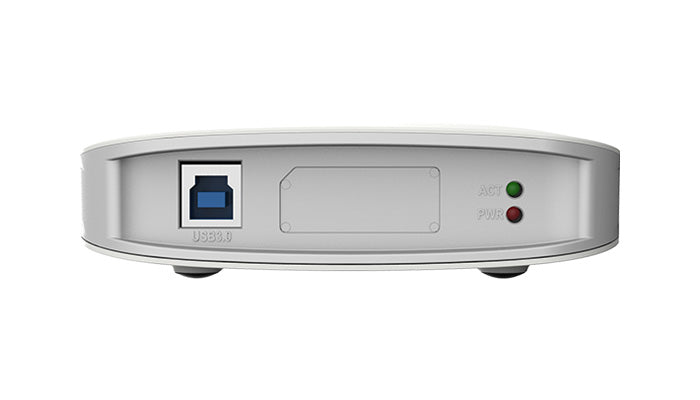

    LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
    Form Factor 98mm (L) x 98mm (W) x 25mm (H)
    Accessories USB 3.0 cable
    DVI to VGA connector
    DVI-I to HDMI + Component breakout
    DB9 to YC + Composite + Analog Audio + Componentbreakout
    Power Consumption 5V max current: ~1 A
    max power consumption: ~5 W
    Working Environment Operating temperature: 0 to 45 deg C
    Storage temperature: –20 to 70 deg C
    Relative Humidity: 5% to 90% non-condensing

    *Specifications correct at time of publication
