Magewell Pro Convert SDI TX

MagewellSKU: 640600000

Sale price$865.00

Shipping Information

We offer the following shipping options for all items except software downloads and bulky items:

Standard Shipping

  • 4 - 6 working days

Express Shipping

  • 1 - 3 working days (Metro East Coast)
  • Please contact us for a quote for other areas

    Some items may be considered Bulky and therefore attract a greater shipping charge. This is the total shipping charge and is not in addition to our Standard or Express Shipping charges.

    All orders (in stock items) must be placed by 12.30pm AEST/AEDT for same day despatch. Orders placed after 12.30pm, during weekends, holidays or after hours will be processed the following business day.

    We do our best to maintain stock of our most popular items, all other items are normally despatched within a few days however we will advise you if your item is not in stock within 24 hours (excluding weekends and public holidays) and will advise of the approximate delivery time.

    We primarily use Australia Post, TNT, StarTrack Express, Couriers Please, TFM Logistics and Toll Express depending on the delivery location and shipping option chosen.

    Delivery timings are approximate and may differ due to circumstances outside of our control such as flight delays, traffic incidents, extreme weather etc.

    Software downloads that do not require delivery of a physical product do not attract a shipping charge. Serial Numbers will be emailed within 24 hours, turnaround is often within a few hours.


    Pro Convert SDI TX Specifications
    Supported Web Browser Microsoft Internet Explorer 11
    Microsoft Edge
    Mozilla Firefox version 61 and above
    Google Chrome version 49 and above
    Apple Safari 11.1 and above
    Opera 55.0.2994.44 and above
    Supported Software OBS
    streamstar SW
    Any other NewTek NDI-enabled encoding or streaming software

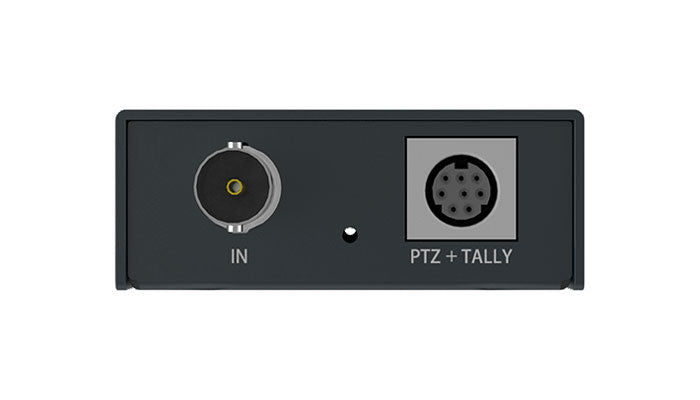

    Input Interfaces BNC:
    SD/HD/3G SDI
    Storage Interface SD Card (functions to be developed)
    PTZ + TALLY Control Mini-DIN–8 jack
    Screw Mounting Hole 1⁄4–20 mounting hole

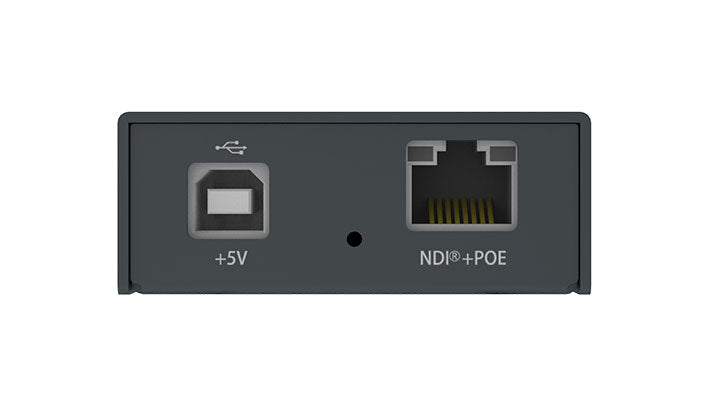

    Network Interfaces 10/100/1000Mbps Ethernet
    IEEE 802.3af PoE
    USB Interface USB2.0 Type B
    5V/2.1A power supply
    Input feature Support for up to 2048x1080 60fps input resolution
    SDI Specific Features Integrated cable equalizer supporting cable lengths up to 180M for 3G-SDI signals
    Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS (SMPTE 2081) standards
    Support for 2K (2048x1080) mode
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for 8/10/12-bit color depth
    Support for extraction of SMPTE 352 payload identifier
    Support for up to 16 (mono) input and 16 output audio channels
    Support for extraction of audio formation information & channel status data
    Limited support for capture of one of dual link interfaces:
    YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
    YCbCr 4:4:4 10-bit: captured as 4:2:2
    RGB 4:4:4: R/B sub-sampled
    NDI® Output Format Support for 4:2:2 8-bit output
    Support for up to 2048x2160 120fps
    Support for NDI 3.x
    Video Processing Features Support for capture resolutions up to 2048x1080
    Video brightness, contrast, saturation, hue adjustment
    Video de-interlacing:
    Top field only
    Bottom field only
    Video aspect ratio conversion:
    Auto or manual selection of output aspect ratio
    Video color format conversion:
    Auto or manual selection of input color format & quantization range
    Auto or manual selection of output color format, quantization range & saturation range
    Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
    Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
    Support for Limited or Full quantization range
    Support for Limited, Full & ‘Extended gamut’ saturation range
    Video frame rate conversion
    Video mirror flip
    NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
    Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
    Support for setting board-index, from 0 to F, through on-board rotary switch
    Firmware Upgrade Support for manual update using Web UI
    LED Indicator Status LEDs indicate the working state of the device:
    Power supply: on/off
    Tally: preview/program
    Input signal: locked/unlocked
    Loopthrough signal: loopthrough connected and signal detected/undetected
    Form Factor 100.9mm (L) x 60.2mm (W) x 23.3mm (H)
    Accessories USB 2.0 A to B Cable
    5V/2.1A power adaptor
    Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
    LED matrix panel (optional)
    Power Consumption 5V max current: ~1.5A
    Max power consumption: ~8W
    Working Environment Operating temperature: 0 to 45 deg C
    Storage temperature: –20 to 70 deg C
    Relative Humidity: 5% to 90% non-condensing
    Specifications correct at time of publication
