Magewell Pro Convert HDMI Plus

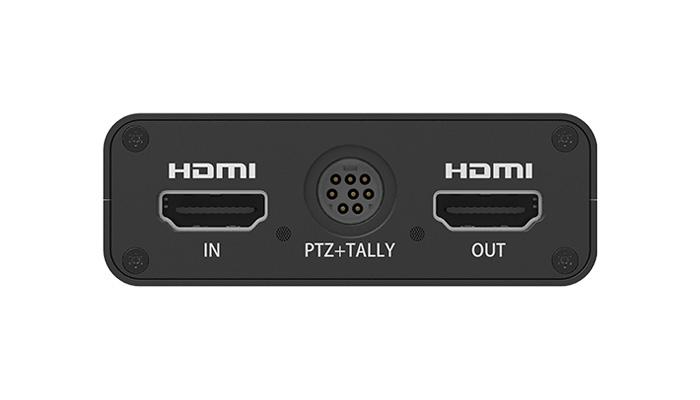

Magewell Pro Convert HDMI Plus Front

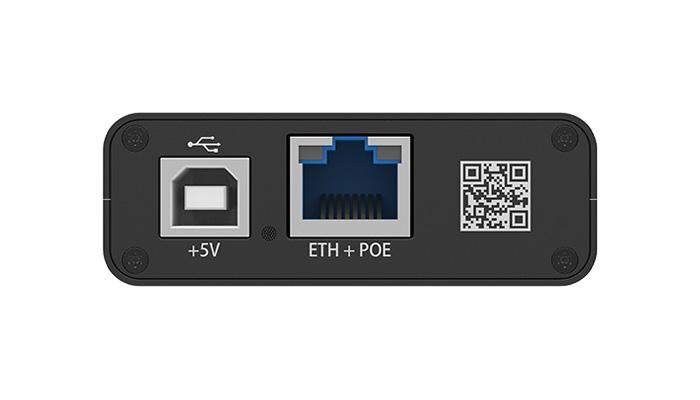

Magewell Pro Convert HDMI Plus Back
Special Order
  • SKU: 640200000

Magewell Pro Convert HDMI Plus

  • Vendor: Magewell
  • Product Type: Converters

Special Order Item - Lead time of 3 weeks from order

Magewell Pro Convert HDMI Plus is a super compact device that will convert your HDMI video signal to the NDI protocol allowing reliability and versatility in your live streaming workflow for your HDMI devices.

The Magewell Pro Convert HDMI Plus adopts NewTek’s royalty-free NDI® protocol for encoding and transmission, the Pro Convert family easily and reliably converts HDMI video signals into NDI streams. The HDMI Loop allows you view your input on an external monitor.

These NDI streams will be available to all NDI-compatible software and systems on the same network regardless of physical distance, ensuring high-quality, low-latency, IP-based live production experiences superior to traditional live production solutions.

Magewell Pro Convert HDMI Plus

Easy-to-Use With Zero Configuration

Pro Convert devices automatically detect your network and the video input signal format, with no manual network configuration nor source format selection needed. Plug in the cables, and it just works!

Compact and Powerful

Pro Convert HDMI Plus features a small size of 117.5mm x 66.7mm and 23.4mm thickness, weighing only 234g.

Find out further info over at Magewell's website.

Pro Convert HDMI Plus Specifications
Supported Web Browser Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software OBS
streamstar SW
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces HDMI:
DVI-D 1.0
HDMI 1.4
Loop-through Interface HDMI:
DVI-D 1.0
HDMI 1.4
Storage Interface SD Card (functions to be developed)
PTZ + TALLY Control Mini-DIN–8 jack
Screw Mounting Hole 1⁄4–20 mounting hole
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
Input feature Support for input video resolutions up to 4096x2160
HDMI Specific Features 297MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4/4:2:2 30fps or 4096x2160 4:2:0 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI® Output Format Support for 4:2:2 8-bit output
Support for up to 2048x2160 120fps
Support for NDI 3.x
Video Processing Features Video processing pipelines with 160 Mpixels/s
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing:
Top field only
Bottom field only
Video aspect ratio conversion:
Auto or manual selection of output aspect ratio
Video color format conversion:
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip
NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade Support for manual update using Web UI
LED Indicator Status LEDs indicate:
the state of power supply: on/off
Tally: preview/program
the state of input signal: locked/unlocked
the state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB 2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)
LED matrix panel (optional)
Power Consumption 5V max current: ~1.5A
Max power consumption: ~8W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
Specifications correct at time of publication
