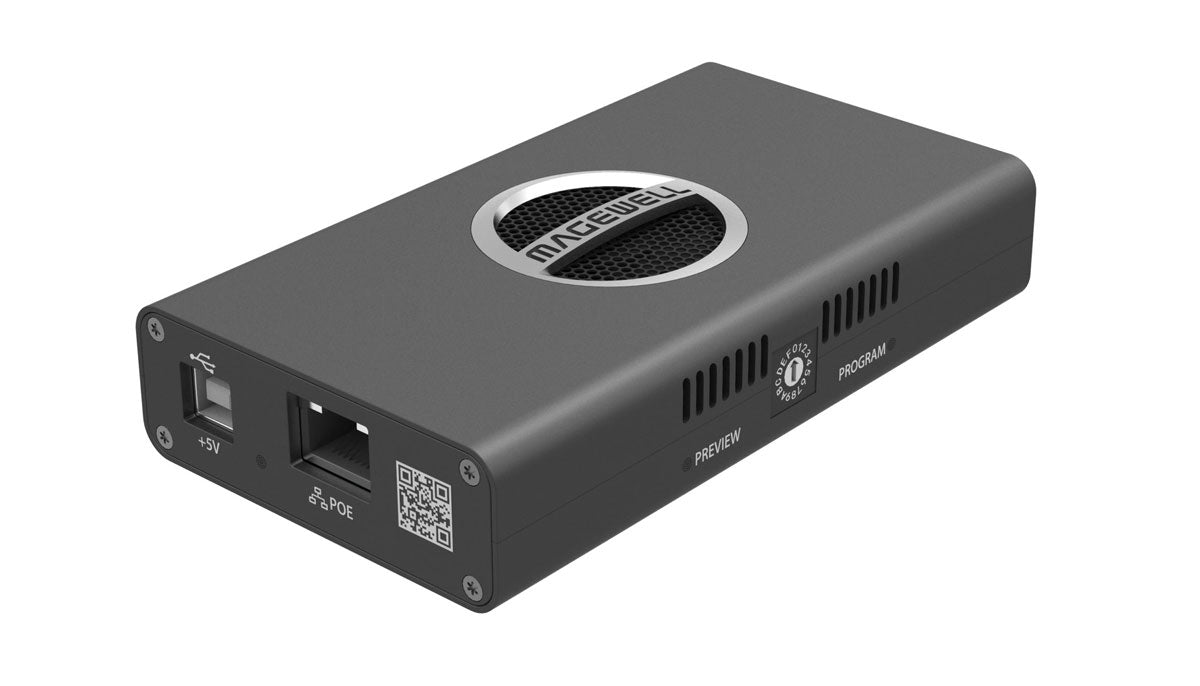

Magewell Pro Convert HDMI 4K Plus

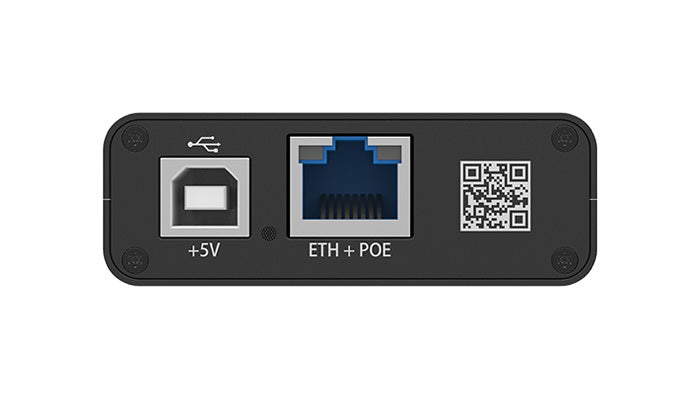

Magewell Pro Convert HDMI 4k Plus - inputs

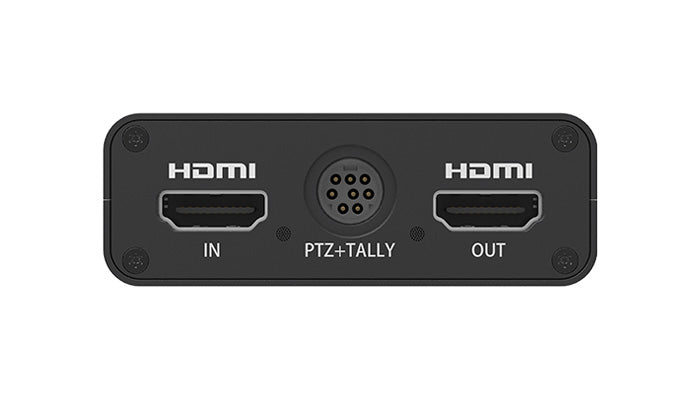

Magewell Pro Convert HDMI 4k Plus - HDMI Ports
Special Order
  • SKU: 640100000

Magewell Pro Convert HDMI 4K Plus

  • Vendor: Magewell
  • Product Type: Converters

Special Order Item - Lead time of 3 weeks from order

Magewell Pro Convert HDMI 4K Plus is a super compact device that will convert your HDMI video signal to the NDI protocol allowing reliability and versatility in your live streaming workflow for your HDMI devices.

The Magewell Pro Convert HDMI 4K Plus adopts NewTek’s royalty-free NDI® protocol for encoding and transmission, the Pro Convert family easily and reliably converts HDMI video signals into NDI streams.

These NDI streams will be available to all NDI-compatible software and systems on the same network regardless of physical distance, ensuring high-quality, low-latency, IP-based live production experiences superior to traditional live production solutions.

Easy-to-Use With Zero Configuration

Pro Convert devices automatically detect your network and the video input signal format, with no manual network configuration nor source format selection needed. Plug in the cables, and it just works!

Compact and Powerful

Pro Convert HDMI 4K Plus features a small size of 117.5mm x 66.7mm (4.63” by 2.63”) and 23.4mm (0.92”) thickness, weighing only 234g. Tiny as it is, the converter supports HDMI 2.0 signal inputs up to 4K at 60fps 4:4:4 and can encode NDI streams up to 4Kp60 4:2:2.

Find out further info over at Magewell's website.

Supported Web Browsers
Microsoft Internet Explorer 11
Microsoft Edge
Mozilla Firefox version 61 and above
Google Chrome version 49 and above
Apple Safari 11.1 and above
Opera 55.0.2994.44 and above
Supported Software OBS
streamstar SW
Any other NewTek NDI-enabled encoding or streaming software
Input Interfaces HDMI 1.4
HDMI 2.0
DVI-D 1.0
Loop-through Interface HDMI 1.4
HDMI 2.0
DVI-D 1.0
Output Interface SD Card (functions to be developed)
PTZ Control Mini-DIN–8 jack
Network Interfaces 10/100/1000Mbps Ethernet
IEEE 802.3af PoE
USB Interface USB2.0 Type B
5V/2.1A power supply
Input feature Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps
HDMI Specific Features 600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
NDI® Output Format Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps or 1920x1080 240fps
Support for NDI 3.5
Video Processing Features Video processing pipelines with 4096x2160 60fps
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Video aspect ratio conversion (Auto or manual selection of output aspect ratio)
Video frame rate conversion
Video mirror fl
Video color format conversion Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
NDI® Source Name Support for setting the device name shown in the system using Web UI. By default, the device name is
‘Pro Convert HDMI 4K+’.
Support for setting the source name shown in the system using Web UI. By default, the source name is
‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch
Firmware Upgrade Support for manual update using Web UI
LED Indicator The state of power supply: on/off
Tally: preview/program
The state of input signal: locked/unlocked
The state of loopthrough signal: loopthrough connected and signal detected/undetected
Form Factor 117.5mm (L) x 66.7mm (W) x 23.4mm (H)
Accessories USB2.0 A to B Cable
5V/2.1A power adaptor
Power Consumption 5V max current: ~2A
Max power consumption: ~10W
Working Environment Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
