Magewell Pro Capture Quad HDMI

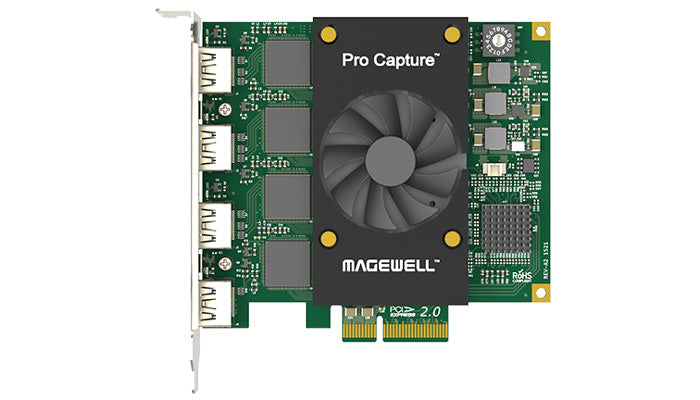

Magewell PRO CAPTURE QUAD HDMI - Top View

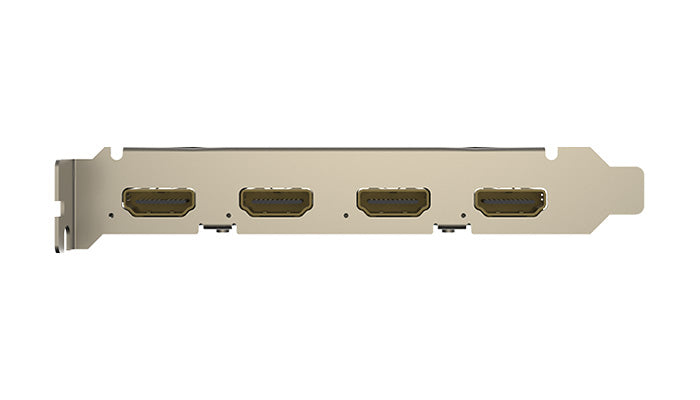

Magewell PRO CAPTURE QUAD HDMI - Inputs

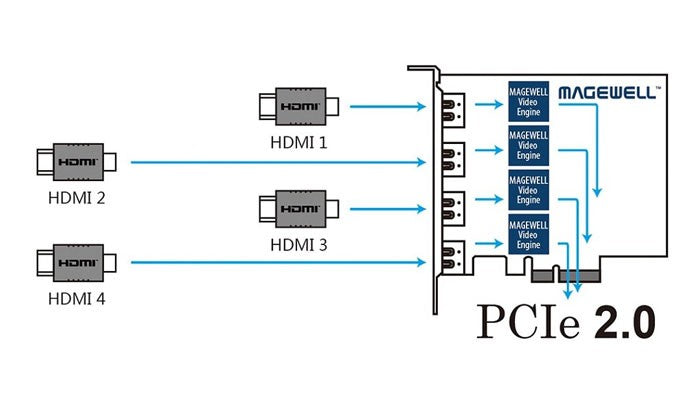

Magewell Pro Capture Quad HDMI connections
  • SKU: 11100

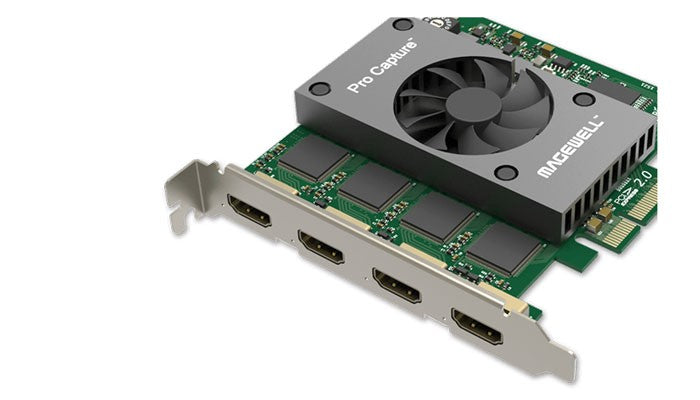

Magewell Pro Capture Quad HDMI

$1,499.00
  • Vendor: Magewell
  • Product Type: Capture & Playback

Magewell Pro Capture Quad HDMI - Four channel HD capture card.

The Magewell Pro Capture Quad HDMI captures:

  • HDMI x 4 + embedded audio x 4

Features

  • PCIe 2.0
  • Capture 2k x 2k
  • Compatible with Windows
  • Compatible with Linux
  • Compatible with Mac OS X
  • Up/down Scaling
  • Deinterlacing
  • Multiple Streaming
  • Automatically Detecting Input Signal
  • High-fidelity Video Processing Pipeline
  • Image Control
  • Various Output Color Spaces
  • SG-DMA Transmission Mode
  • Multiple Devices on One Host
  • Hardware Time Stamp
  • Mounting Hole
  • Rotary Switch
  • High-speed Memory
  • LED Indicator
  • Firmware Upgrade
  • Common Driver
  • Continuously Works 24 x7

Get the most of your Magewell device with these software driver utilities from Magewell.

For more information on the Magewell Pro Capture Quad HDMI, check out the Magewell website.

The Streaming Guys are the Australian Distributors of the Magewell Video Capture Family - Great Profits - Reseller Enquiries Welcome!

Supported OS Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
  Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
  CentOS 6.5/7 (x86 & x64)
  Fedora 25/26/27 (x86 & x64)
  Red hat 6.5 and above (x86 & x64)
  Other Linux OS with kernel version 2.6.35 and above
Mac
   OS X 10.9/10.10/10.11
   macOS 10.12/10.13
Supported APIs Windows

   DirectShow
   DirectKS
   Wave API/DirectSound/WASAPI
Linux
   V4L2
   ALSA
Supported Software VLC
VirtualDub
OBS
xSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces 4x HDMI type A
   DVI 1.0
   HDMI 1.4a
Host Interface PCIe Gen2 x4
Input Features Support for input video resolutions up to 2048×2160 pixels
HDMI Specific Features 225MHz HDMI receiver
Adaptive HDMI equalizer support for cables lengths up to 30M
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Video Capture Formats Support for capture image resolutions up to 2048×2160 pixels
Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
   Weave
   Blend top & bottom field
   Top field only
   Bottom field only
Video aspect ratio conversion
   Auto or manual selection of input aspect ratio
   Auto or manual selection of capture aspect ratio
   Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
   Auto or manual selection of input color format & quantization range
   Auto or manual selection of capture color format, quantization range & saturation range
   Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
   Support for Limited or Full quantization range
   Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
   Support for PNG OSD image (up to 2048×2160)
   Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support Latency of 64 video lines
Partial notification mode in SDK
Timestamp & A/V Synchronization Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
~200MB/s per channel DMA bandwidth in PCIe 1.0 system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets
SDK Pro Capture SDK for DirectShow for easy integration (Windows)
Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks All options can be controled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown when it is not in use
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor Normal profile PCIe x4 Add-on Card
112.15mm x 102.92mm (without PCI bracket)
Power Consumption Max current at 12V: ~ 0.86 A
Max current at 3.3V: ~ 0.95 A
Max power consumption: ~ 15.39 W
Working Environment Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
