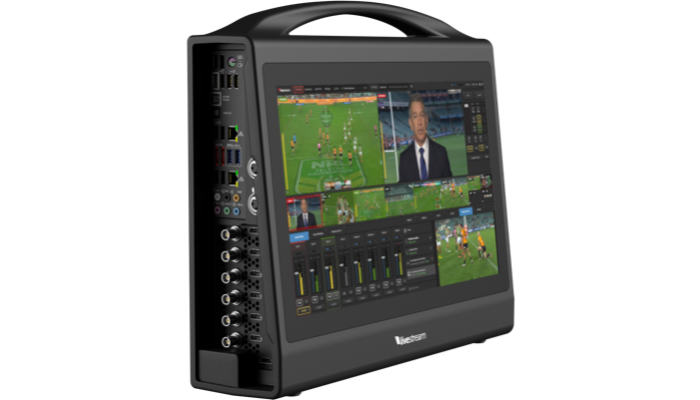

Livestream Studio HD550 - where design and function intersect, the compact and portable all-in-one live production switcher.
With its uniquely portable body, the Studio HD550 makes it easy to set up wherever your event may be. Travel to your destination with your Studio HD550 in its custom bag, and arrive ready for a full multi-camera production.
We use the Livestream HD550 every day and love it! It's compact enough to take as carry on luggage in Australia and is powerful enough to produce all of our webcast productions.
Contact us today for a personalised demonstration.

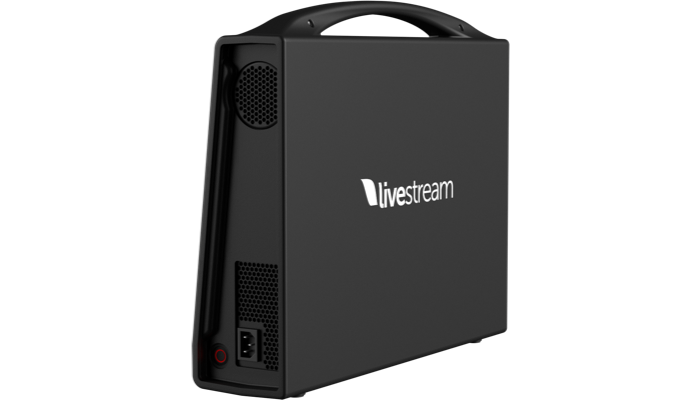

Distinctive design with an attached carrying handle ensures easy transport from production to production.
For more information on the Livestream Studio HD550, check out the Livestream website.
|Embedded Audio Input||5 Stereo or 40 Mono HD-SDI embedded audio inputs|
|Audio Monitoring (1/8”)||1|
|Standard/High Definition SDI Output||1|
|Composite Input (BNC)||0|
|Composite Output (BNC)||0|
|Analog Audio (1/8”) Input||1|
|Analog Audio (1/8”) Output||1|
|Analog Audio (1/4”) Input||0|
|Analog Audio (1/4”) Output||0|
|Additional AES/EBU OR Analog Audio Output||0|
|Custom Carry Bag||Included|
|Livestream Studio™ Keyboard||Included|
|Media Sources||7 integrated digital media sources for video & graphics playback. 2 DDRs (video clip playback with built-in transcoder), 3 GFX (graphics), 2 Color Bars / Background Color|
|Remote Camera||10 x Remote camera module for ingesting video/audio over local WiFi or Ethernet network, downlinking streams, and Interviews via WebRTC.|
|Format Converter||Built-in broadcast quality format converter for every input with automatic format detection. Allows use of any camera and video source without matching video formats|
|Built-In Multiview||On-screen full field rate multiview of all live inputs, Preview, Program Out, GFX and DDR, Audio PPM overlay with peak hold feature on all inputs and outputs. Resizable layout allowing hiding of all controls to maximize multiview screens.|
|External Multiscreen||1x Extended Screen output using HDMI|
|Video Switcher/Mixer||Mixer & Effects Bank (M/E) with no upstream keyer. transitions : SMPTE Wipe, Cut & Fade (Auto transition with adjustable duration in frames, manual via on-screen T-BAR or keyboard shortcuts)|
|Graphics Downstream Key||3 x Graphics DSK (downstream key) channels. One channel for GFX1, one channel for GFX2 and onechannel for GFX 3. Independent or locked transition controls (fade/cut/wipe). Preview on multiview|
|Graphics & Titling||Load JPG or PNG files (full transparency support with PNG files). Add text (set position/font/size/color) over any loaded image file within the GFX1, GFX2 or GFX3|
|Video Clip Playback||2 Media Players - Eject/Load clip. Play Pause/stop. Audio/Video Scrubber. Timecode indicator. Seek to timecode. Mark In/Mark Out. Loop. Auto-play on transition|
|Recording||Up to 4 simultaneous isolated source recordings. MJPEG with uncompressed audio. Interlacing and timecode support. Full compatibility with Blackmagic Design Media Express and Adobe Premiere.|
|Recording Capacity||~20 hours at 1080i (Using 1 TB built in Hard Drive with recorder set to record at 100Mbps MJPEG AVI)|
|Live Streaming||HD live streaming via Gigabit/100/10 built-in Ethernet. Presets in up to HD 720p. Multiple simultaneous bit-rates, including mobile quality for playback over 3G on mobile devices (iPhone/Android). Integrated live streaming to Livestream or any other RTMP compatible service including Ustream, YouTube Live, Akamai, Wowza Media Server, Twitch.|
|Audio Mixing||Integrated multi-channel audio mixer for internal and external audio sources, outputs, stream and headphones. Incorporated video switcher follow feature with audio crossfade support when fading two video sources.|
|Supported Formats||4k*HD: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080i59.94 and 1080i60SD: 625/25 PAL, 525/29.97 NTSC*The pre-installed Blackmagic Design capture devices in the HD31/HD51/HD510/HD550/HD1710 do not support 4k|
|Playback Media Formats||GFX: JPEG or PNG image files with transparency support. DDR: AVI MJPEG with uncompressed audio, DV Video, WMV (7/8/9), H.264 (.mov & .avi), MPEG4 Part 2 (.mov & .avi), MPEG4 V1/V2 (.mov & .avi), AAC, MP3|
|Record Media Formats||AVI MJPEG with uncompressed audio|
|Operating System||Windows 7 Professional (64 bit) or better|
|Built-in Display||Integrated 17” (1920x1200) HD LED LCD|
|CPU||Intel "Sandy Bridge-E" Core i7 4930K 3.4 GHz Six-Core processor, 12MB L3 cache, 130W, Socket LGA 2011|
|Graphics Card||Nvidia GeForce GT 520 Commercial Series PCI Express graphics card|
|Storage||1 TB/ Western Digital Red 7200 RPM/ SATA 2.5" Internal Hard Drive|
|RAM||16GB 4 total DDR3 1600 MHz RAM (non-ECC) (4GB x 4 DIMM triple-channel configuration)|
|Processing||Video: 4:2:2, 10 bit Color (REC 601, REC 709) Audio: 48 kHz, 24-bitrEF IN/Genlock (Requires genlocking the two Blackmagic Design cards via two separate connectors)|
|Built-in Video Input/Output Cards||5 Blackmagic Design DeckLink Mini Records (PCI), 1 Blackmagic Design DeckLink Mini Monitor (PCI)|
|Included in the Box||Carry-on bag|
|Livestream Studio™ Keyboard|
|Mouse and Livestream Mousepad|
|Blackmagic Design cards documentation and driver CD|
*Specifications correct at time of publication
