Description
| Camera Front-End Specifications | |
|---|---|
| Image Sensor (inch) | 1/2,3 Inch CMOS |
| Number of Sensors | 1 |
| Mega Pixels | 12,4 |
| Gain in dB | 0 to 36 |
| Shutter speed | 1/4 to 1/10000 |
| White Balance modes | FAW |
| AWA | |
| 3200K | |
| 5600K | |
| Manual | |
| Colour Matrix adjustment | Yes |
| Wide Dynamic Range Mode (WDR) | Yes |
| User selected function buttons | Yes, 13 (9 Buttons 4 Cross shaped) |
| User Customizes Menu | Yes |
| Optical Specifications | |
| Lens mount | Internal |
| Optical Zoom X times | 12 |
| Dynamic Zoom x times | 24 |
| Lens F Number | 1.2 to 3.5 |
| Lens ratio from / to | 4.67mm to 56.04mm |
| Lens ratio equivalent to 35mm | 29.6mm to 355mm |
| Auto Focus | Yes |
| Special Auto Focus Features | Area Focus |
| Near/Far Modes | |
| Face | |
| Optical Image stabilization | Yes |
| Filter Diameter in mm | 62mm |
| Build in ND Filters | 2 Filters: 1/4, 1/16 |
| Recording Formats | |
| Media | SDHC/SDXC |
| Media Class | 4K/70 Mbps,HD and below Class 10 |
| 4K/150Mbps UHS1-U3 (no UHS-2) | |
| Recording slots | 2 |
| Encoder | H.264 |
| File Format MOV | Yes |
| File Format AVCHD | Yes |
| Video Codec MPEG4 AVC/H264 4K/HD | Yes |
| Video Codec AVCHD | Yes |
| Recording specials | 4:2:2 HD Record (H.264,50Mbps) |
| Simultaneous recording on 2 cards | Yes |
| Simultaneous recording in 2 modes | Yes |
| Recording Resolution Formats | |
| Resolution 3840 x 2160 | Yes, 29,97p/25p/23.98p |
| Resolution 1920 x 1080 | Yes, 60p/50p/30p/25p/24p/1080i60/i50 |
| Resolution 1440 x 1080 | Yes, 60i/50i |
| Resolution 1280 x720 | Yes, 60p/50/30p/25p/24p |
| Resolution 720 x 576 | Yes, 50i |
| Resolution 960 x 540 | Yes, 30p/25p/24p |
| Resolution 480 x 270 | Yes, 30p/25p/24p |
| High Speed Recording | Yes |
| High Speed Recording Modes | 1920x1080 QuickTime (MPEG-4, AVC/H.264) 120fps/100fps |
| Recording Data rate 1 | 150 Mbps (UHD) |
| Recording Data rate 2 | 70 Mbps (UHD) |
| Recording Data rate 3 | 8,17,24,28 Mbps (AVCHD) |
| Recording Data rate 4 | 35 Mbps (UHQ) |
| Recording Data rate 5 | 50 Mbps (XHQ/YUV422) |
| Recording Data rate 6 | 8 Mbps (SD) |
| Recording Data rate 7 | 9,8,5,3,1.2,0.8,0.3,0.2 (WEB) |
| SD Recording | Yes |
| Interval Recording | Yes |
| Pre Rec (retro) recording | 5 sec. (4K) |
| 5,10,15 sec. (HD/SD) | |
| Clip Trimming | Yes |
| Audio Channels | 2 |
| Audio Recording modes | LPCM 2ch, 48 kHz/16 bit (4k/HD/SD MOV), AC3 2ch (AVCHD), μlow 2ch (Proxy) |
| Networking | |
| IP Main Connection | USB A Host |
| IP Connection supports | Ethernet, WIFI - and LTE USB Adapters |
| IP Features Live-Streaming | Yes |
| IP Features Remote | Yes, Via Web-Browser (no apps needed) |
| IP Features FTP | Yes, Different protocols |
| IP Features Meta-Data | Yes, Local and Remote editing and data exchange |
| Live-Streaming Bitrates | 1920 x 1080 (59.94i/50i) Audio AAC 128 k 12/8/5/3 Mbps |
| 1280 x 720 (59.94p/50p) Audio AAC 128 k 12/8/5/3 Mbps | |
| 1280 x 720 (29.97p/25p) Audio AAC 128 k 8/5/3/1.5 Mbps | |
| 720 x 480 (59.94i) 720 x 576 (50i) Audio AAC 128 k/64 k 8/5/3/1.5/0.8/0.3 Mbps | |
| 640 x 360 (29.97p/25p) Audio AAC 128 k/64k 3/1.5/0.8/0.3 Mbps | |
| Live-Streaming Protocols | RTMP, MPEG2-TS/UDP, MPEG2-TS/RTP, RTSP/RTP, ZIXI |
| Live-Streaming Single cast | Yes |
| Live-Streaming Multicast | Yes |
| Live-Streaming reconnect | Yes |
| Live-Streaming and simultaneous REC | Yes |
| Live-Streaming Pre-sets of destinations | 4 |
| FTP Protocol formats | FTP / SFTP / FTPS |
| FTP upload during REC | Yes |
| FTP servers presets | 4 |
| Meta-Data presets of servers | 4 |
| Note for all kind of USB Adapters | The connection to a network will be made by the USB Host Port of the camcorder (on the right back end side of the camcorder). Please select the device which you are going to use: WIFI dongle / 3G/4G dongle or a CAT Network adapter.The Adapter you going to be use must be a registered Adapter (see attached compatible list), cause all of these Adapter needs dedicate drivers, which to be implemented into the camcorder.In the case for LTE adapters, there must be done a pre-set of these dongles in your local PC first! |
| WIFI Dongle 1 | Sitecom WLA.1001 |
| WIFI Dongle 2 | EnGenius EUB1200AC /Realtek RTL8812AU |
| WIFI Dongle 3 | ASUS USB1200AC /Realtek RTL8812AU |
| WIFI Dongle 4 | D-LINK DWA-172 (revA1) /Realtek RTL8811AU |
| WIFI Dongle 5 | EDIMAX EW-781UTC /Realtek RTL8811AU |
| WIFI Dongle 6 | D-LINK DWA-171(revA1) /Realtek 8811AU |
| WIFI Dongle 7 | TP-LINK Archer T4U /AC1200 Realtek8811AU not T4U V2.0 AC1300!! |
| WIFI Dongle 8 | Wideland (over Amazon) ACWIFI DEWIFIC001A |
| Special Features | |
| Overlay for Broadcast-News | Yes |
| Self Modify Templates via SDP Generator | Yes, For News |
| Text support | Yes |
| Logo support | Yes |
| Watermark | Yes, Free Position |
| Full Screen Graphics | Yes, PNG or JPG Files Max 50 Images |
| LIVE Logo | Yes, Self design |
| Overlay output selection | Yes, REC LIVE out Stream |
| Connections | |
| OUT HDSDI | Yes, 3G HDSDI |
| OUT HDSDI Format max. | 1080/60p,50p 8 Bit 4:2:2 EE |
| OUT HDMI | Yes |
| OUT HDMI Format max. | 2160/30p,25p,24p 8 bit 4:2:2 EE |
| 1080/60p,50p 8 bit 4:2:2 EE | |
| OUT AV | Yes, 3.5mm mini jack |
| OUT Audio Line | Yes, 1 times 3.5mm mini jack |
| OUT Audio Headphone | Yes, 1 times 3.5mm mini jack |
| IN Audio XLR MIC/LINE | Yes, 2 times supports LINE and MIC Level with +48V |
| IN Audio AUX | Yes, 1 times 3.5mm mini jack |
| Built in Microphones | Yes, Stereo MIC |
| Wired remote IN | Yes, serial LANC 2.5mm mini jack |
| USB HOST | Yes |
| USB Data Exchange (Storage) | Yes |
| EVF and LCD | |
| Operation Panel Type | LCD |
| Operation Panel Resolution | 920K |
| Operation Panel Size diagonal in inch | 3.5 |
| Electronic Viewfinder (EVF) Type | LCOS |
| Electronic Viewfinder (EVF) Resolution | 1,56M |
| Electronic Viewfinder (EVF) Size diagonal in inch | 0.24 |
| Power and Enviroment Specifications | |
| Power AC | Yes, DV12V(AC Adapter) |
| Power DC | Yes, 12 Volt, Battery 7,4V |
| Battery types | SSL-JVC50 / SSL-JVC75 IDX |
| Power consumption | Approximate 7,9W with VF in 4K REC mode, default settings |
| Operation Temperature | 0 to 40 |
| Storage Temperature | -20 to 50 |
| Operation Humidity in % | 30 to 80 |
| Storage Humidity under % | 85 |
| Mechanical Information | |
| Weight | 1.6 |

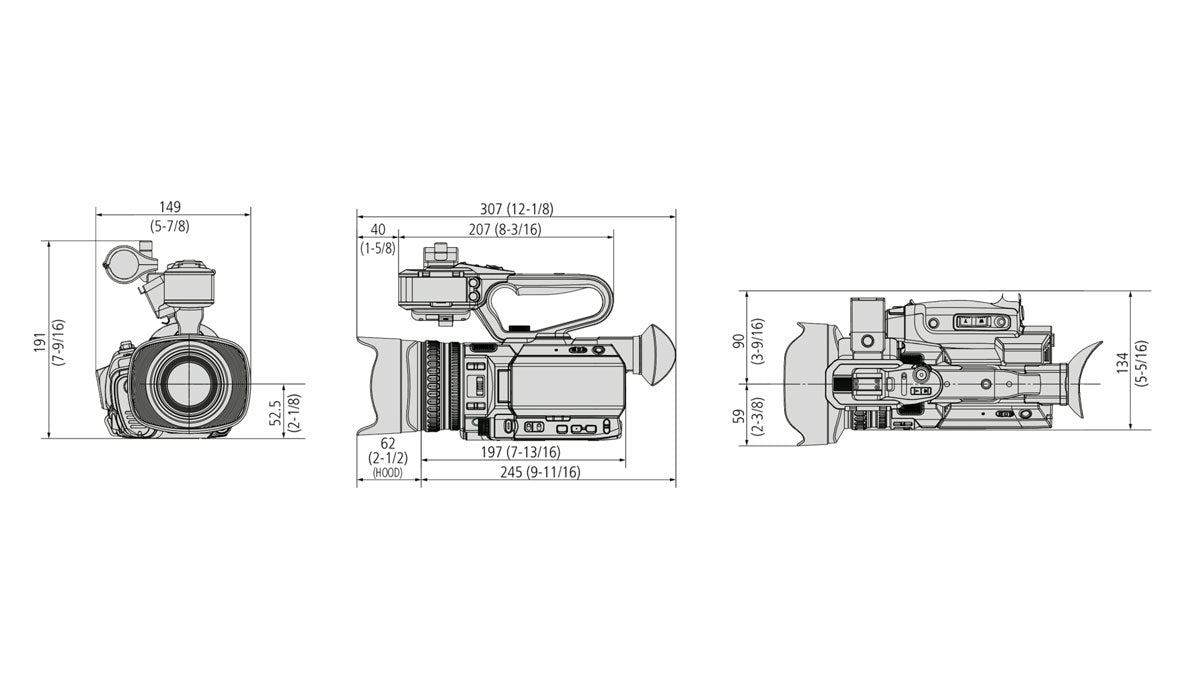

| Dimensions | 149mm x 191mm x 307mm |
| Removable Handle | Yes |
