Inogeni 4K HDMI to USB3.0 Capture

InogeniSKU: 4K2USB3

Price:
Sale price$799.00

Shipping Information

We offer the following shipping options for all items except software downloads and bulky items:

Standard Shipping

  • 4 - 6 working days

Express Shipping

  • 1 - 3 working days (Metro East Coast)
  • Please contact us for a quote for other areas

    Some items may be considered Bulky and therefore attract a greater shipping charge. This is the total shipping charge and is not in addition to our Standard or Express Shipping charges.

    All orders (in stock items) must be placed by 12.30pm AEST/AEDT for same day despatch. Orders placed after 12.30pm, during weekends, holidays or after hours will be processed the following business day.

    We do our best to maintain stock of our most popular items, all other items are normally despatched within a few days however we will advise you if your item is not in stock within 24 hours (excluding weekends and public holidays) and will advise of the approximate delivery time.

    We primarily use Australia Post, TNT, StarTrack Express, Couriers Please, TFM Logistics and Toll Express depending on the delivery location and shipping option chosen.

    Delivery timings are approximate and may differ due to circumstances outside of our control such as flight delays, traffic incidents, extreme weather etc.

    Software downloads that do not require delivery of a physical product do not attract a shipping charge. Serial Numbers will be emailed within 24 hours, turnaround is often within a few hours.

    Description

    INPUT

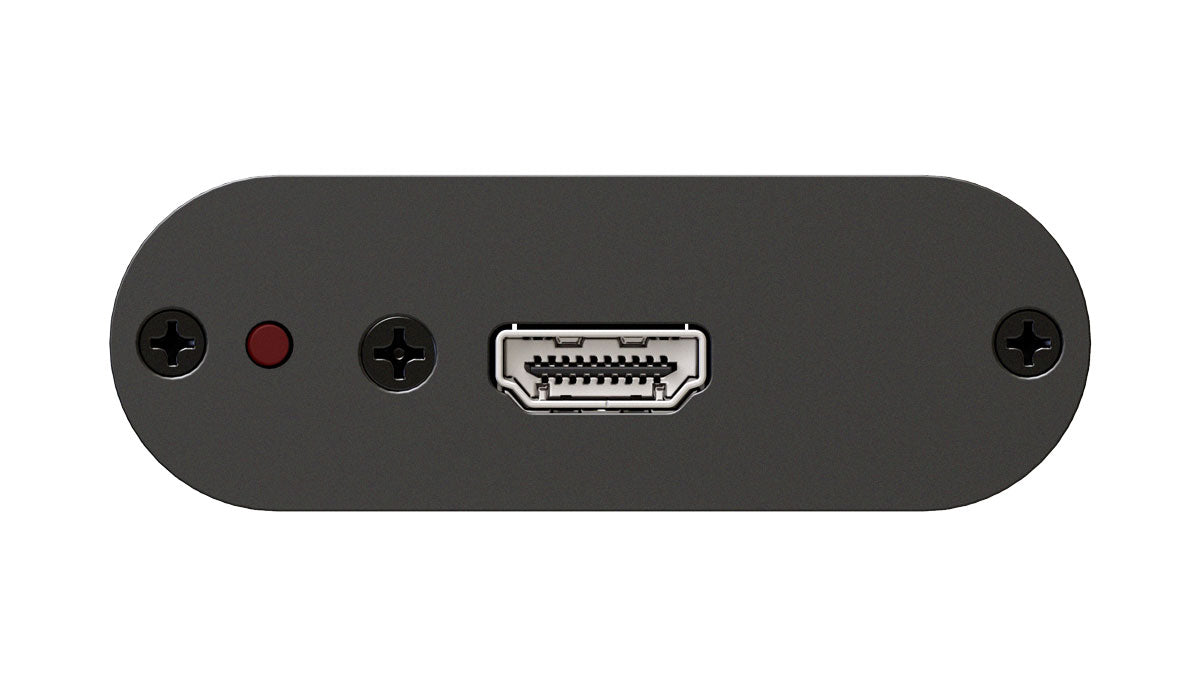

    Connector 1 x HDMI 1.4a
    Video Resolution 4K UHD (3840/4096x2160), 1440p, 1080p, 720p, 1080i, 480p, 576p, 1920x1200, 1280x1024, 1280x960, 1024x768, 800x600, 640x480
    Frame Rates 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 Hz for all resolutions, except 4K = 30Hz max.
    Color Space RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
    Sampling Rate 297 MHz
    Embedded Audio RGB, YCbCr, 4:4:4, and 4:2:2 (4K=RGB)
    HDCP Copy Protection Inogeni will not decrypt BD/DVD movies,satellite/cable receivers or other encrypted sources.
    COMPATIBILITY
    Operating System NO driver installation necessary.
    Windows 7 and above (32/64-bit)OSX 10.10 and above
    Linux (kernel v2.6.38) and above
    Please note that 4K resolutions on the USB side are not supported under OSX.
    Android
    Host Requirements USB 3.0 port
    Motherboard Compatible with all motherboards. Intel, Renesas, ASMedia, and Fresco Logic
    Cameras Supported Cameras and camcorders with an HDMI output
    Software Compatibility UVC-compliant. Runs with all software compatible to DirectShow, V4L2, QuickTime and AVFoundation.
    OUTPUT
    Connector 1 x USB 3.0
    Color Space YUY2 4:2:2 8-bit
    NV12 4:2:0 12-bit
    YV12 4:2:0 12-bit
    I420 4:2:0 12-bit
    4K formats can only be transferred into the 4:2:0 pixel formats
    Video Scaler Automatic hardware based
    Color Space Conversion Automatic hardware based
    Sampling Conversion Automatic hardware based
    Frame Rate Conversion Automatic hardware based
    Audio 2-channel LPCM audio from HDMI
    DETAILED INFORMATION
    Dimensions 4K = 3.2” x 2.9” x 0.75”
    Weight 120g
    Operating Temperature 0° to 45° C (32° to 113° F)
    Storage Temperature -40° to 105° C (-40° to 221° F)
    Relative Humidity 0% to 90% non-condensing
    USB3 Power 5V, 580 mA
    Origin Canada
    Harmonized Code 8522.90.00

    *Specifications current at time of publication
