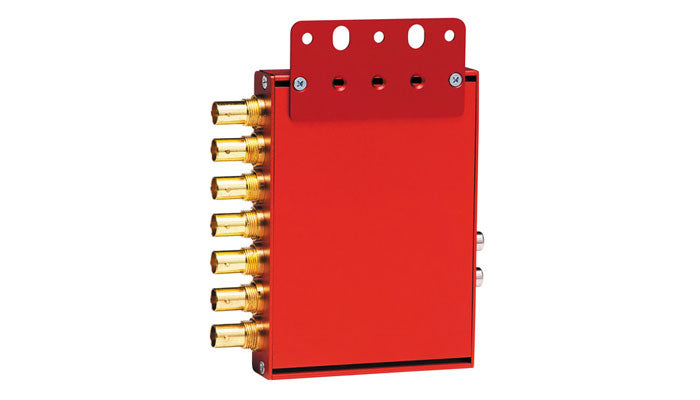

Decimator MD-DUCC Multi-Definition Down Up Cross Converter Back
Decimator MD-DUCC Multi-Definition Down Up Cross Converter Right angle
  • SKU: MD-DUCC

Decimator MD-DUCC

$575.00 $649.00
  • Vendor: Decimator
  • Product Type: Converters

The Decimator Multi-Definition Down Up Cross Converter converts (3G/HD/SD)-SDI to (3G/HD/SD)-SDI, HDMI and Analogue Video with 2 x AES/EBU or 2 x Analogue Audio Outputs.

The Decimator MD-DUCC features the following:

  • Auto detects 3G, HD or SD (26 Formats in total)
  • Full 10-bit data path and multipoint interpolation
  • Professional motion-adaptive de-interlacing
  • True Down Up Cross conversion, allowing the conversion between
  • any of the supported formats. Simply select the output format
  • you require, no matter what the input format is
  • Complete 16:9, 14:9 and 4:3 Aspect ratio conversion support, with
  • individual selection for HD to HD, HD to SD, SD to HD and SD to SD
  • conversions
  • Full 16-Channel Audio metering with:
    • Any of the 4 audio groups individually selectable
    • Vertical or Horizontal Bars
    • AES, VU, Extended VU, BBC, EBU, DIN and NORDIC Scales - Bar & Float, Bar only or Float only
    • Transparency adjustment
    • Separate Bar and Float Ballistics control
    • Adjustable Reference level
    • Red, Yellow and Green Range adjustment
    • Bar thickness adjustment
    • Margin adjustment
  • Adjustable Graticules Generator with:
    • Separate enables for Safe Action, Safe Title and Centre Cross - Adjustable position for either Safe Action or Safe Title
    • Adjustable colours for Safe Action, Safe Title and Centre Cross
  • Text Overlays with:
    • Adjustable Foreground and Background colours - Adjustable 16 character text
    • Current input format status
  • HDMI output
  • Selectable analogue video output from either:
    • 3 x CVBS out / YPbPr out / RGB out / CVBS & YC out
  • 2 x (3G/HD/SD)-SDI 10-bit outputs with audio from input automatically delayed and passed
  • GPI on RJ-45 for Tallies
  • 3G/HD/SD-SDI Active Loop-Through Output
  • De-Embedded audio can be output on 2 x RCA connectors as either AES or Analogue with adjustable analogue audio level
  • LEDs for status and buttons for basic configuration
  • USB port for control and firmware updates
  • Locking DC Power Socket
  • The following is also included with the unit:
    • Power Supply
    • HDMI Cable
    • USB Cable and Mounting Bracket
Find our more info at the Decimator website
    VIDEO FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s
    • 1080p@60/59.94/50Hz
    HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
    • 1080i@60/59.94/50Hz
    • 1080p/psf@30/29.97/25/24/23.98Hz
    • 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    SD:SMPTE 259M@270Mb/s
    • 625i50
    • 525i59.94
    INPUTS (3G/HD/SD)-SDI 10-bit
    Conditional Maximum Equalization cable length of 400M for
    SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
    LED STATUS Power
    Signal Lock
    POWER +5V to +24V DC, ~5 Watts
    Positive Centre Pin
    CONTROLS HDMI format type
    Analogue Video format type
    Output format
    Aspect conversion type for HD to HD, HD to SD, SD to HD
    and SD to SD conversions.
    On-Screen Overlays Enables
    Basic Audio Meter control
    Basic Graticule Enables
    OUTPUTS HDMI
    1 x (3G/HD/SD)-SDI Active Loop-Through
    2 x (3G/HD/SD)-SDI 10-bit Outputs
    (3 x CVBS) / (Y, Pb, Pr) / (G, B, R) / (CVBS, Y & C)
    AES 1 / Unbalanced Analogue Audio - Left
    AES 2 / Unbalanced Analogue Audio - Right
    DIMENSIONS 90mm x 123mm x 23mm (3.5” x 4.8” x 0.9”)

    *Specifications correct at time of publication
