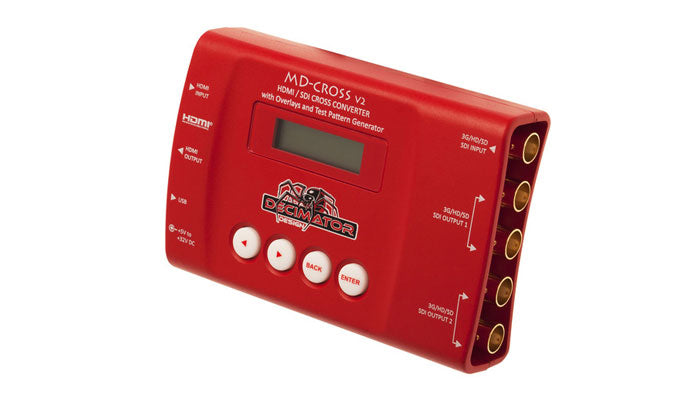

Decimator MD-CROSS V2 HDMI / SDI Cross Converter Hero

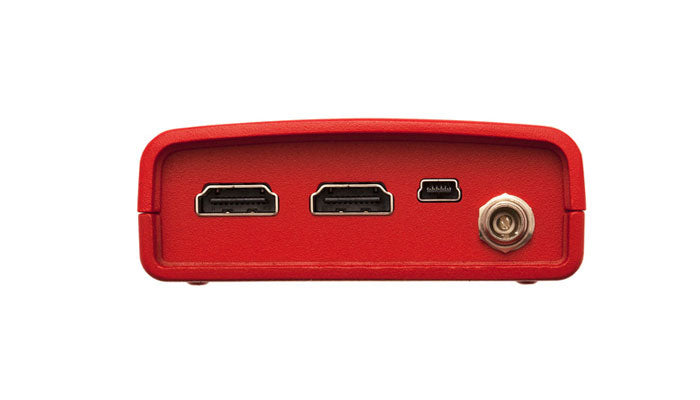

Decimator MD-CROSS V2 HDMI / SDI Cross Converter Side

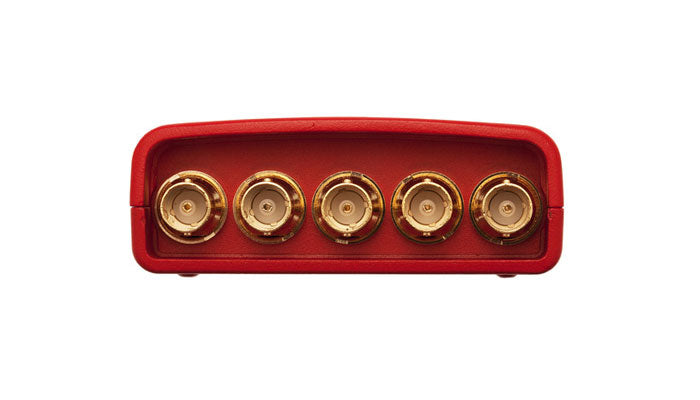

Decimator MD-CROSS V2 HDMI / SDI Cross Converter SDI Input Outputs
  • SKU: MD‐CROSS 2

Decimator MD-CROSS V2

$540.00 $583.00
  • Vendor: Decimator
  • Product Type: Converters

The Decimator MD-CROSS V2 Converter is an HDMI / SDI Cross Converter with Scaling, Overlays, Frame Rate Conversion, Video Test Pattern Generator and Audio Tone Generator.

The MD-CROSS V2 features four modes:

  1. HDMI to SDI while simultaneously converting SDI to HDMI
  2. HDMI to HDMI while simultaneously converting SDI to SDI
  3. HDMI to SDI and HDMI
  4. SDI to SDI and HDMI

The MD-CROSS V2 is a super portable converter with a easy to use LCD screen and button control system allowing easy access to all of the great features that have been unavailable without a computer until now.The days of having to play with annoying dip switches or carrying around a computer to change a simple setting are no longer.

Also included is:

  • (3G/HD/SD)-SDI Active Loop-Through Output
  • Full 16-Channel Audio Metering Overlays
  • Adjustable Safe Title and Safe Action Overlays and
  • static Center Cross
  • Text Overlays
  • USB port for control and firmware updates
  • New Metal Thread Locking DC Power Socket - Power Supply, HDMI Cable and USB Cable

Head on over to the Decimator website to find out more info

SDI FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s
• 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
• 625i50
• 525i59.94
INPUTS HDMI
(3G/HD/SD)-SDI 10-bit
Conditional Maximum Equalization cable length of 400M for SDI, 200M for HD-SDI and 100M 3G-SDI using Belden 1694A
POWER +5V to +32V DC
Positive Centre Pin
LCD / BUTTON MENU OPTIONS SDI output source from HDMI IN, SDI IN, TPG or Scaler
HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler
Scaler source, format and Aspect Controls
Full control for Audio Meter Overlays
Full control for Safe Action, Safe Title and Centre Cross Overlays
Full control for Text Overlays
Full control for Format Status Overlays
OUTPUTS HDMI
1 x (3G/HD/SD)-SDI Active Loop-Through
2 x (3G/HD/SD)-SDI 10-bit Outputs
DIMENSIONS 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)

*Specifications correct at time of publication
