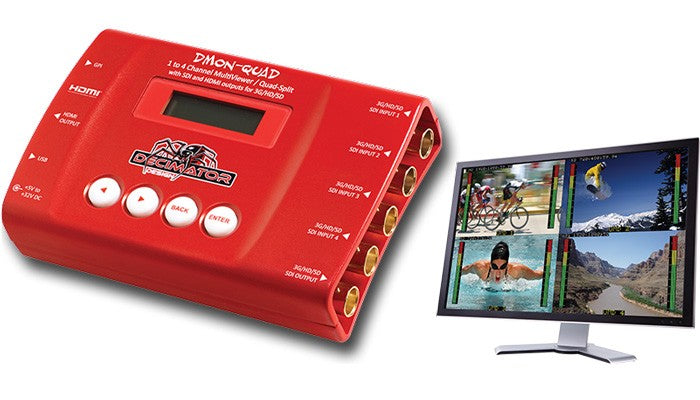

Decimator DMON - QUAD Hero Image
  • SKU: DMON‐QUAD

Decimator DMON - QUAD

$395.00
  • Vendor: Decimator
  • Product Type: Converters

The DMON-QUAD is a portable converter with 1 to 4 MultiViewer and an easy to use LCD and button control system.

The DMON-QUAD has 4 x (33G/HD/SD)-SDi to HDMI Converters with 1 to 4 MultiViewer, 8 channel Audio Meters and Custom Layouts.

Features Include:

  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning and size
  • Horizontal and/or Vertical image flipping per window
  • Supports 3G level A and B on inputs and output, allowing conversion between 3G level A and B
  • 16 Character UMD overlay per window with individual enables, custom positioning and size
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Selectable output format in both Full-Screen Multi-Viewer mode
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously
  • In Pass-Through mode the selected input is passed through to both the (3G/HD/SD)-SDI and HDMI outputs

Find out more info over at the Decimator website

SDI INPUT & OUTPUT FORMATS
3G:SMPTE 424M@2.97 and 2.967Gb/s 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s 1080i@60/59.94/50Hz
1080p/psf@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s 625i50 (PAL)
525i59.94 (NTSC)
HDMI OUTPUT FORMATS 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
1080i@60/59.94/50Hz
720p@60/59.94/50/30/29.97/25
625i50 (PAL)
525i59.94 (NTSC)
INPUTS 4 x (3G/HD/SD)-SDI
USB for control and updates
GPI on RJ-45
OUTPUTS 1 x (3G/HD/SD)-SDI
HDMI Type A
LCD / BUTTON MENU OPTIONS HDMI output type
Output Select
Multi-Viewer Output Format
Multi-Viewer Number of Windows
Multi-Viewer Layout
Multi-Viewer Audio Source
Multi-Viewer Reference
Full Screen is Scaled
Input Routing
GPI mode
Setup
POWER +5V to +32V DC
Positive Centre Pin
DIMENSIONS 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)

*Specifications are correct at time of publication
