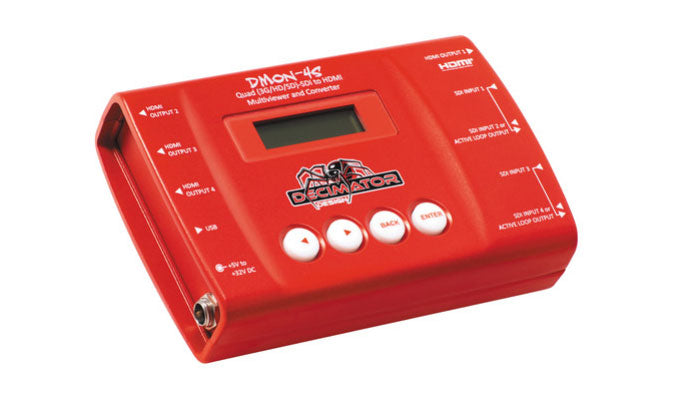

Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter Hero

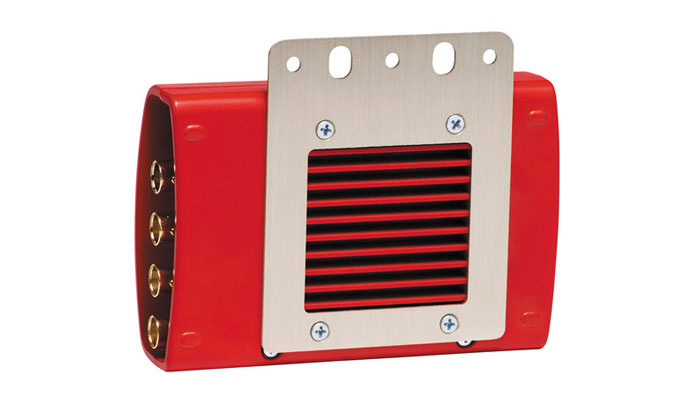

Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter Back with mounting bracket
Decimator DMON-4S Quad SDI to HDMI Multiviewer and Converter Front and Side
  • SKU: DMON-4S

Decimator DMON-4S

$659.00 $737.00
  • Vendor: Decimator
  • Product Type: Converters
4 x (3G/HD/SD)-SDI to HDMI Converters with 1 to 4 MultiViewer, Custom Layouts and 8 Channel Audio Meters

Includes 4 independent mini HDMI outputs that can each output any of the four (3G/HD/SD)-SDI inputs or a Quad-Split of all them.
For example you could use the unit to have:

  • 4 independent SDI to HDMI converters

  • 3 independent SDI to HDMI converters with a quad-split output

  • 2 independent SDI to 2 x HDMI converters with loop through

  • A single SDI or Quad-Splt to 4 x HDMI outputs

Inputs 2 and 4 can be individually changed to output active loop copies of inputs 1 and 2 respectively.

Quad-Split mode allows selection of audio from any input.

The DMON-4S is a truly portable converter, that incorporates an LCD and button control system giving you easy access to all of the amazing features without using complicated LED/button control, dip switches or having to carry around a computer to change a simple setting.

This unit also includes:

  • USB port for control and firmware updates - Heavy duty metal box

  • Metal Thread Locking DC Power Socket

  • Power Supply, HDMI Cable and USB Cable

Check out more info over at the Decimator website

SDI INPUT FORMATS 3G:SMPTE 424M@2.97 and 2.967Gb/s • 1080p@60/59.94/50Hz
HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
• 1080i@60/59.94/50Hz
• 1080p/psf@30/29.97/25/24/23.98Hz
• 720p@60/59.94/50/30/29.97/25/24/23.98Hz
SD:SMPTE 259M@270Mb/s
• 625i50
• 525i59.94
HDMI OUTPUT FORMATS 1080p@60/59.94/50Hz
1080i@60/59.94/50Hz
1080p@30/29.97/25/24/23.98Hz
720p@60/59.94/50/30/29.97/25
625i50
525i59.94
POWER +5V to +32V DC, 6 Watts
Positive Centre Pin
LCD / BUTTON MENU OPTIONS Status for all 4 inputs
HDMI output type and source selection from SDI inputs 1 to 4
Quad-Split output format selection
Quad-Split output aspect and type of 16:9 or 4:3 at either 90 or 100% of screen size
Quad-split individual aspect format for each input of Same as output, Letter-box or Pillar-box
Quad-split Border Enable
Quad-split mode reference of either Free-run or inputs 1 to 4
INPUTS Up to 4 x (3G/HD/SD)-SDI Inputs
Input Equalization > 100M using Belden 1694A
USB for control and updates
OUTPUTS 4 x mini HDMI Type C
Optional SDI Active Loop Out of inputs 1 and/or input 3
DIMENSIONS 79.5mm x 123mm x 29.5mm (3.1” x 4.8” x 1.2”)

*Specifications correct at time of publication
