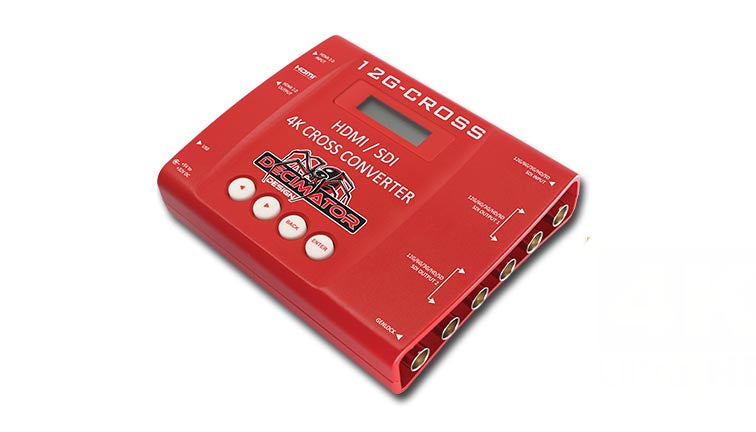

Decimator 12G-CROSS
  • SKU: 12G-CROSS

Decimator 12G-CROSS

  • Vendor: Decimator
  • Product Type: Converters

HDMI / SDI 4K cross converter with scaling and frame rate conversion.

The Decimator 12G-CROSS is a small (4.2" x 5.1" x 1.2") low power portable converter encased in a solid robust aluminium case and does not contain a noisy fan, allowing it to be used in almost any environment.

  • Allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
  • The 4K scaling engine can be driven by either the SDI or HDMI input, supports horizontal and/or vertical flipping and can be locked to either the SDI, HDMI or Genlock input.
  • The 4K scaling engine can scale and/or frame rate convert between any of the following 57 formats:
    • (3840 or 4096) x 2160p50/59.94/60 via HDMI or 12G-SDI
    • (3840 or 4096) x 2160p30/29.97/25/24/23.98 via HDMI or 6G-SDI
    • (1920 or 2048) x 1080p50/59.94/60 via HDMI or 3G-SDI (Level A or B)
    • 1920 x 1080i60/59.94/50 via HDMI or HD-SDI
    • (1920 or 2048) x 1080p30/29.97/25/24/23.98 via HDMI or HD-SDI
    • (1920 or 2048) x 1080psf30/29.97/25/24/23.98 via HD-SDI
    • 1280 x 720p60/59.94/50/30/29.97/25 via HDMI or HD-SDI
    • 1280 x 720p24/23.98 via HD-SDI
    • 720 x 480p59.94 or 720 x 576p50 via HDMI
    • 720 x 480i59.94 (NTSC) or 720 x 576 (PAL) via HDMI or SD-SDI

    • The audio pairs in the SDI and HDMI outputs can be rearranged as required.
    • Includes 4 x (3G/HD/SD)-SDI outputs, that allow it to be used as a 1 to 4 distribution amplifier.
    • The 12G-CROSS is a truly portable product that incorporates an easy-to-use LCD screen and button control system. This gives easy access to the outstanding features without using complicated LED/button controls, dip switches, or having to carry around a computer to change a simple setting.
    This unit also includes:
    • USB port for control and firmware updates
    • Metal Thread Locking DC Power Socket
    • Power Supply and USB Cable

    Check out further information over at Decimator.com

    SDI FORMATS 12G:SMPTE 2048-1/2036-1@11.88 and 11.868Gb/s
    • (3840 or 4096) x 2160p@60/59.94/50Hz
    6G: SMPTE 2048-1/2036-1@5.94 and 5.934Gb/s
    • (3840 or 4096) x 2160p@30/29.97/25/24/23.98Hz
    3G-A or 3G-B: SMPTE 424M@2.97 and 2.967Gb/s
    • (1920 or 2048) x 1080p@60/59.94/50Hz
    HD:SMPTE 292M/274M/296M@1.485 and 1.435Gb/s
    • 1920 x 1080i@60/59.94/50Hz
    • (1920 or 2048) x 1080p/psf@30/29.97/25/24/23.98Hz
    • 1280 x 720p@60/59.94/50/30/29.97/25/24/23.98Hz
    SD:SMPTE 259M@270Mb/s
    • 720 x 576 (PAL)• 720 x 480i59.94 (NTSC)
    HDMI FORMATS (4096 or 3840) x 2160p@60/59.94/50/30/29.97/25/24/23.98Hz
    1920 x 1080p@60/59.94/50/30/29.97/25/24/23.98Hz
    1920 x 1080i@60/59.94/50Hz
    1280 x 720p@60/59.94/50/30/29.97/25
    720 x 480p59.94 or 720 x 576p50
    720 x 480i59.94 (NTSC) or 720 x 576 (PAL)
    LCD / BUTTON MENU OPTIONS SDI output source from HDMI IN, SDI IN or Scaler
    HDMI output type and source from HDMI IN, SDI IN or Scaler
    Scaler source, reference, format and Aspect Controls
    Audio pair routing for HDMI and SDI output
    LCD backlight off time
    Back to Status time
    INPUTS 1 x HDMI Type A
    1 x (12G/6G/3G/HD/SD)-SDI
    1 x Genlock
    OUTPUTS 1 x HDMI Type A
    2 x (12G/6G/3G/HD/SD)-SDI Re-clocked Loop-through
    2 x (12G/6G/3G/HD/SD)-SDI
    POWER +5V to +32V DC
    Positive Centre Pin
    DIMENSIONS 106mm x 130mm x 31mm (4.2” x 5.1” x 1.2”)
