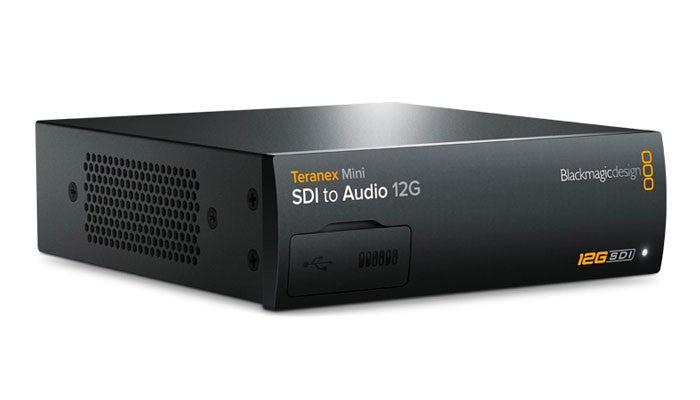

Blackmagic Teranex Mini - SDI to Audio 12G

Save 6%
Blackmagic DesignSKU: CONVNTRM/CA/SDIAU

Price:
Sale price$849.00 Regular price$899.00
 More payment options

Shipping Information

We offer the following shipping options for all items except software downloads and bulky items:

Standard Shipping

  • 4 - 6 working days

Express Shipping

  • 1 - 3 working days (Metro East Coast)
  • Please contact us for a quote for other areas

    Some items may be considered Bulky and therefore attract a greater shipping charge. This is the total shipping charge and is not in addition to our Standard or Express Shipping charges.

    All orders (in stock items) must be placed by 12.30pm AEST/AEDT for same day despatch. Orders placed after 12.30pm, during weekends, holidays or after hours will be processed the following business day.

    We do our best to maintain stock of our most popular items, all other items are normally despatched within a few days however we will advise you if your item is not in stock within 24 hours (excluding weekends and public holidays) and will advise of the approximate delivery time.

    We primarily use Australia Post, TNT, StarTrack Express, Couriers Please, TFM Logistics and Toll Express depending on the delivery location and shipping option chosen.

    Delivery timings are approximate and may differ due to circumstances outside of our control such as flight delays, traffic incidents, extreme weather etc.

    Software downloads that do not require delivery of a physical product do not attract a shipping charge. Serial Numbers will be emailed within 24 hours, turnaround is often within a few hours.

    Description

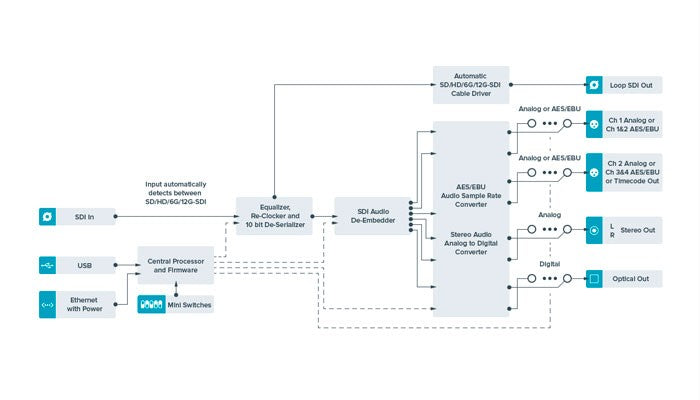

    De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

    De-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

    Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!

    Blackmagic Teranex Mini - SDI to Audio 12G Image 1

    Use Anywhere - The world’s most versatile converters!

    The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!

    Blackmagic Teranex Mini Image 2

    Reinventing the Mini Converter - The first mini converter you don’t have to hide!

    Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems. Unlike regular mini converters, you get full size professional XLR audio connections built into the converters, plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or, when you’re doing mission critical work, you can add the optional front panel to see exactly what you’re converting.

    Rack Mountable - The world's first 12G-SDI rack mount converters!

    Card based rack converters are expensive, cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there’s no single point of failure. Unlike card based converters, you can walk up and change settings from the front panel, monitor the video going through each converter, and you can also manage them remotely over ethernet! Because they’re so small you can mount them in the front or the rear of an equipment rack or road case.

    For further information check out the Blackmagic Design website

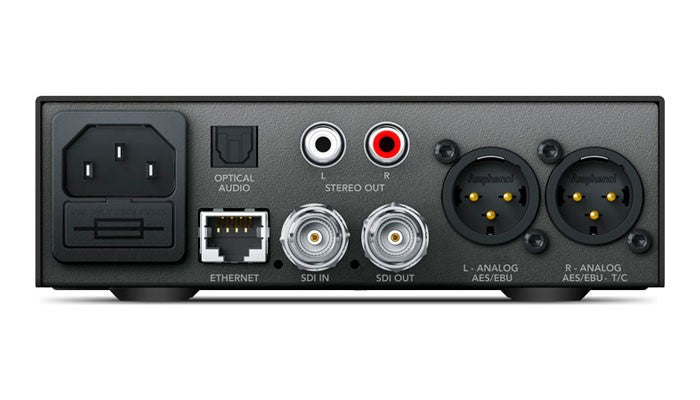

    SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching.
    SDI Video Outputs 1 x 12G-SDI loop output
    Embedded Audio Support 16 channels
    AES/EBU Audio Output 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
    Analog Audio Output 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
    Optical Audio Output /PDIF Signal with TOSLINK Connector.
    Multi Rate Support Automatic switching between SD/HD/2K and 4K.
    Updates and Configuration USB or Ethernet.
    Re-Clocking Yes
    SD Format Support 525i59.94 NTSC, 625i50 PAL
    HD Format Support 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60
    2K Format Support 2K DCI 23.98, 2K DCI 24p, 2K DCI 25p2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
    Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p602160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    4K Format Support 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30pK DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
    SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
    SDI Video Rates SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDIand 12G-SDI.SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
    SDI Video Sampling 4:2:2, 4:4:4
    SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit.
    SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
    SDI Color Space REC 601, REC 709
    SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    Software Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
    Operating Systems macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
    Settings Control Basic Settings Control
    Mini Switches, USB and Ethernet via free software utility.

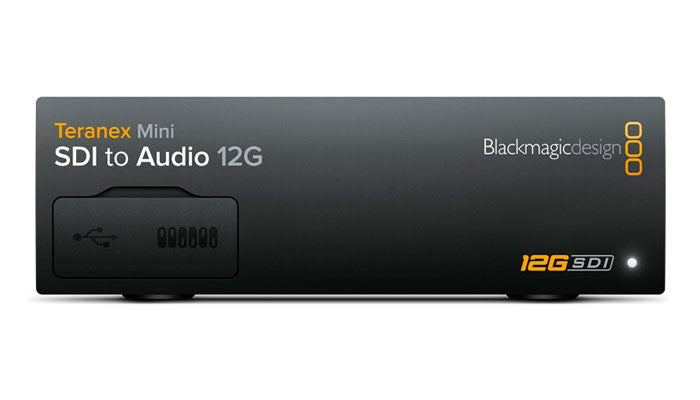

    Optional Front Panel Control
    Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
    Power Supply 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet).
    Power Consumption 16 Watts
    Operational Voltage Range 90 - 240V AC
    Operating Temperature 0°to 40°C (32° to 104°F)
    Storage Temperature -20°to 60°C (-4° to 140°F)
    Relative Humidity 0% to 90% non-condensing
    Warranty 3 year Limited Manufacturer’s Warranty.

    *Specifications Correct at time of Publication
