Distribute a single SDI video input to up to eight SDI outputs. Features the latest multi rate 12G-SDI connections with full SDI re-clocking allowing the converter to automatically switch between all SD, HD and Ultra HD formats up to 2160p60. Perfect for distributing a single SDI signal to multiple devices such as monitors, switchers and encoders.
Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!
The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!
Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems. Unlike regular mini converters, you get full size professional XLR audio connections built into the converters, plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or, when you’re doing mission critical work, you can add the optional front panel to see exactly what you’re converting.
Card based rack converters are expensive, cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there’s no single point of failure. Unlike card based converters, you can walk up and change settings from the front panel, monitor the video going through each converter, and you can also manage them remotely over ethernet! Because they’re so small you can mount them in the front or the rear of an equipment rack or road case.
For further information check out the Blackmagic Design website

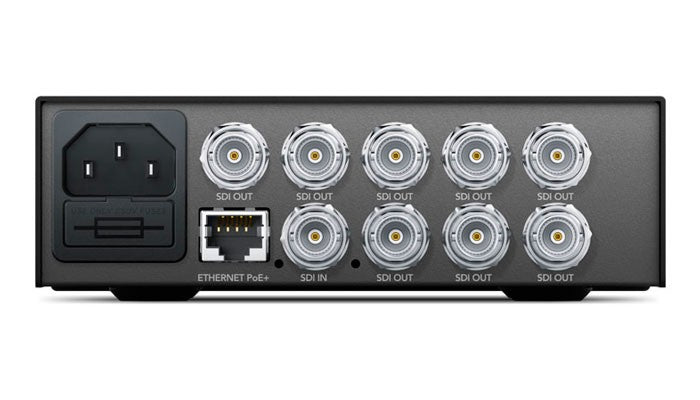

|Connections||SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.|
|SDI Video Output: 8 x 12G-SDI automatically matches the SD/HD/2K/4K 12G-SDI input|
|Multi Rate Support: Automatic switching between SD/HD/2K and 4|
|Updates and Configuration: USB or Ethernet|
|Standards||SD Format Support: 525/29.97 NTSC, 625/25 PAL|
|HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.|
|2K Format Support: 1080PsF23.98, 1080PsF24, 1080PsF25, 1080p23.98, 1080p24, 1080p25,|
|Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p60.|
|4K Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30.|
|SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M, ST 2081 & ST 2082|
|SDI Video Rates: SDI video connections are switchable between standard definition, high definition level B 3G-SDI, 6G-SDI and 12G-SDI.|
|SDI Video Sampling: 4:2:2 and 4:4:4|
|SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.|
|SDI Color Space: YUV & RGB|
|Software||Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet.|
|Internal Software Upgrade: Via included updater application.|
|Settings Control||Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.|
|Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons.|
|Power Requirements||Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.|
|Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).|
|Power Consumption: 18 Watts|
|Operational Voltage Range: 90 - 240V AC|
|Environmental Specifications||Operating Temperature: 0°to 40°C (32° to 104°F)|
|Storage Temperature: -20°to 60°C (-4° to 140°F)|
|Relative Humidity: 0% to 90% non-condensing|
|What's Included||Teranex Mini - SDI Distribution 12G|
|Software SD Card|
|Warranty||3 year Limited Manufacturer’s Warranty.|
*Specifications Correct at time of Publication
