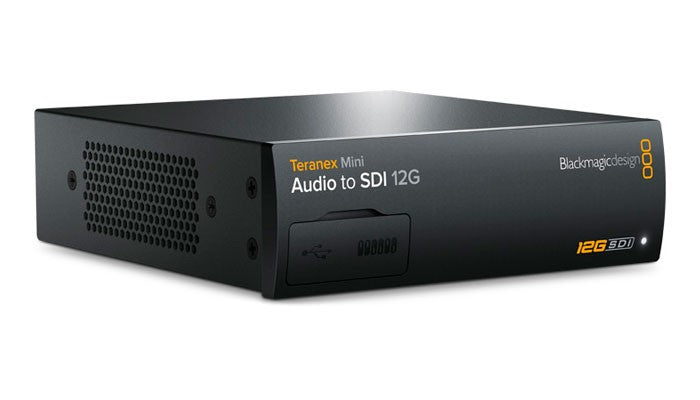

Blackmagic Teranex Mini - Audio to SDI 12G Hero

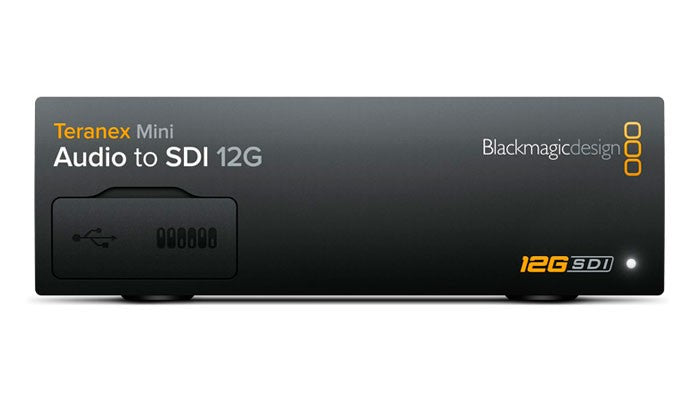

Blackmagic Teranex Mini - Audio to SDI 12G Front

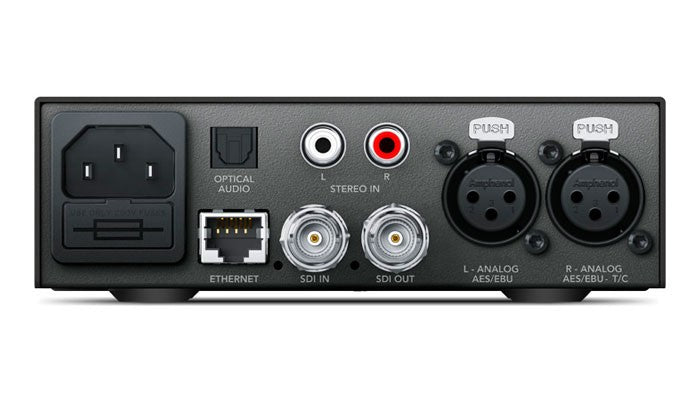

Blackmagic Teranex Mini - Audio to SDI 12G Rear

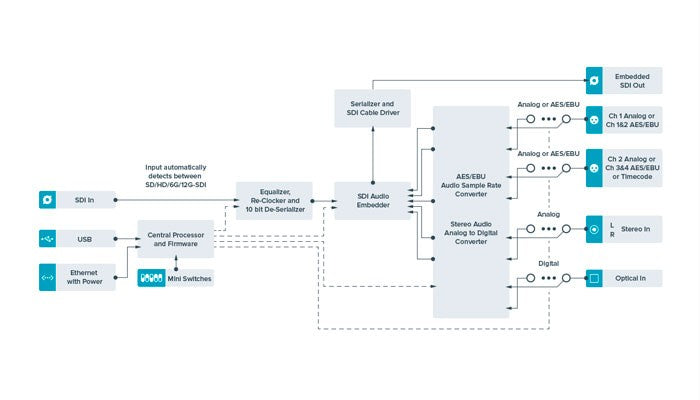

Blackmagic Teranex Mini - Audio to SDI 12G Diagram
  • SKU: CONVNTRM/CB/AUSDI

Blackmagic Teranex Mini - Audio to SDI 12G

$663.00
  • Vendor: Blackmagic Design
  • Product Type: Converters

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

Embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection. Take audio from devices such as audio mixers, iPods and analog decks and embed it into SDI video connections for use with SDI routers and decks.

Teranex Mini, the next generation 12G-SDI converters with award winning Teranex quality and support for all SD, HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply, professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!Blackmagic Teranex Mini - Audio to SDI 12G Image 1

Use Anywhere - The world’s most versatile converters!

The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks, plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!

Blackmagic Teranex Mini - Audio to SDI 12G Image 2

Reinventing the Mini Converter - The first mini converter you don’t have to hide!

Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts, behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them, or rack mount them in larger broadcast systems. Unlike regular mini converters, you get full size professional XLR audio connections built into the converters, plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or, when you’re doing mission critical work, you can add the optional front panel to see exactly what you’re converting.

Rack Mountable - The world's first 12G-SDI rack mount converters!

Card based rack converters are expensive, cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there’s no single point of failure. Unlike card based converters, you can walk up and change settings from the front panel, monitor the video going through each converter, and you can also manage them remotely over ethernet! Because they’re so small you can mount them in the front or the rear of an equipment rack or road case.

For further information check out the Blackmagic Design website

SDI Video Inputs 1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Outputs 1 x 12G-SDI output.
Analog Audio Inputs 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
Digital Audio Inputs 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Embedded Audio Support 16 channels.
Optical Audio Input S/PDIF Signal with TOSLINK Connector.
Multi Rate Support Automatic switching between SD/HD/2K and 4K.
Updates and Configuration USB or Ethernet.
Reclocking Yes
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF301080i50, 1080i59.94, 1080i60
2K Video Standards 1080p23.98, 1080p24, 1080p251080PsF23.98, 1080PsF24, 1080PsF25
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
SDI Video Rates SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit.
SDI Color Space REC 601, REC 709
SDI Auto Switching Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
SDI Color Precision YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space REC 601, REC 709
Software Control Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
Internal Software Upgrade Via included updater application.
Operating Systems macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
Basic Settings Control Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Supply 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption 16 Watts
Operational Voltage Range 90 - 240V AC
Operating Temperature 0° to 40°C (32° to 104°F)
Storage Temperature -20° to 60°C (-4° to 140°F)
Relative Humidity 0% to 90% non-condensing
Warranty 3 year Limited Manufacturer’s Warranty.
Physical Specifications 140mm x 44mm x 170mm, 600g

*Specifications Correct at time of Publication
