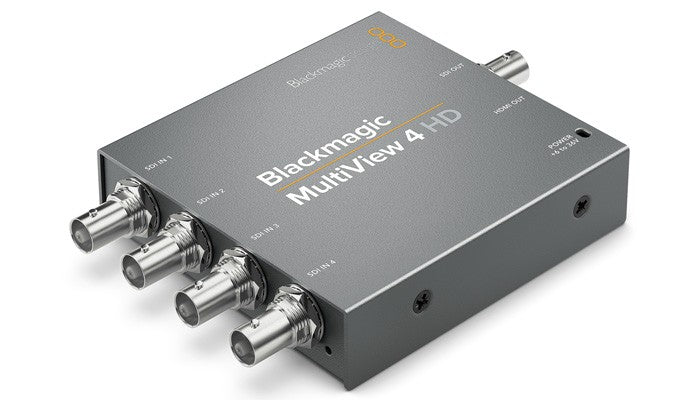

Blackmagic Multiview 4 HD Hero

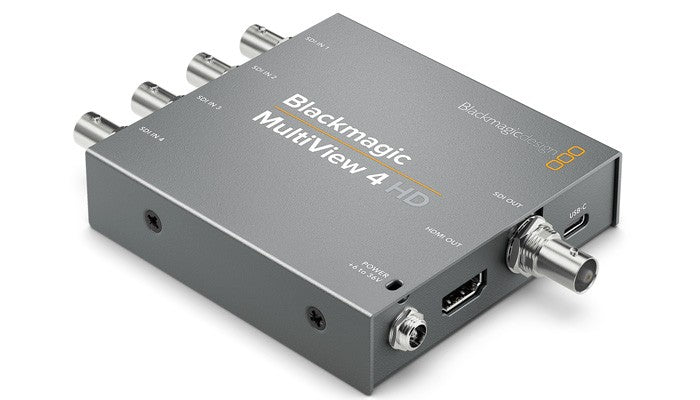

Blackmagic Multiview 4 HD Angle
  • SKU: HDL-MULTIP3G/04HD

Blackmagic Multiview 4 HD

$269.00 $295.00
  • Vendor: Blackmagic Design
  • Product Type: Monitoring

The Blackmagic MultiView 4 HD model is a low cost multi viewer that lets you simultaneously monitor 4 different SDI video sources on a single display.

Each view ia a completely independent video monitor with overlays that you can turn on and off such as custom labels, audio meters and more.
Full frame re-synchronization on each input lets you monitor any combination of video signals, even if they are different frame rates.
The multi rate 3G-SDI connections are compatible with all existing SD and HD equipment and formats up to 1080p60, including Level A and B devices.
Plus, you get both 3G-SDI and HDMI outputs so you can use traditional SDI displays or even low cost big screen televisions.

For further information check out the Blackmagic Design website

Connections
SDI Video Inputs 4 x 10-bit SD-SDI and HD-SDI.
SDI Video Outputs 1 x HD-SDI.
SDI Rates 270Mb, 1.5G, 3G.
SDI Video Multi View Outputs 1 x 10-bit HD-SDI.
HDMI Video Multi View Outputs 1 x HDMI type A connector. Output supports EDID of the monitor.
SDI Reclocking On all SDI outputs, auto switching between standard definition or high definition.
Reference Input None
Multi Rate Support Auto detection of SD or HD.
Updates USB 2.0 high speed (480Mb/s) interface.
Configuration USB 2.0
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
Audio Meters Each view, VU standard.
Source Routing None
SDI Video Sampling 4:2:2 and 4:4:4.
SDI Audio Sampling Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision 10-bit 4:2:2 and 4:4:4.
SDI Color Space YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel None
External Control Panel None
Display None
Software
Software Control MultiView software included free for Windows™ and Mac OS X™.
Internal Software Upgrade Via included updater application.
Operating Systems macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
Power Requirements
Power Supply +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Fail Protection MultiView 4 HD settings preserved and restored instantly at power on.
Power Consumption 5.5 Watts
Operational Voltage Range 6 to 36V DC
Physical Specifications 134mm x 92mm x 22mm, 242g
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Blackmagic MultiView 4 HD
+12V universal power supply with international socket adapters
Warranty 3 Year Limited Manufacturer's Warranty.
*Specifications correct at time of Publication
