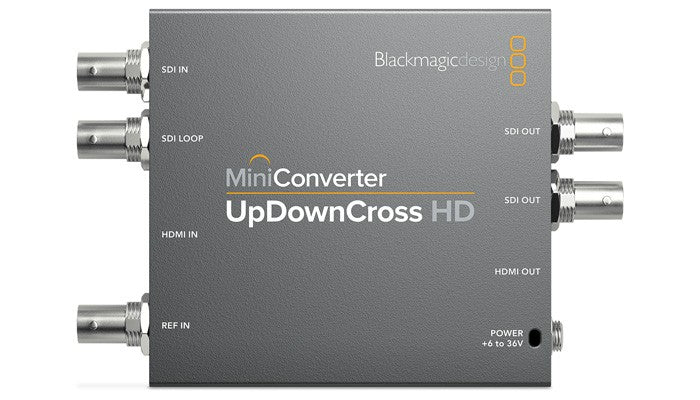

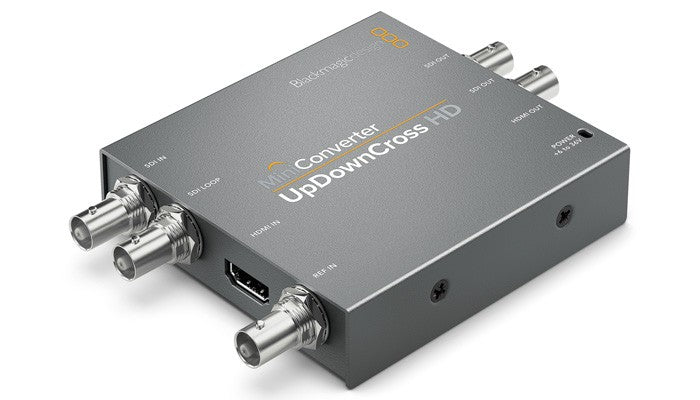

Blackmagic Mini Converter Up Down Cross HD
Blackmagic Mini Converter Up Down Cross HD
  • SKU: CONVMUDCSTD/HD

Blackmagic Mini Converter Up Down Cross HD

$208.00
  • Vendor: Blackmagic Design
  • Product Type: Converters

Mini Converter UpDownCross HD is a full standards converter that lets you convert any SD or HD video format to any other SD or HD video format.
Simply set the output format you need and the input format is automatically converted, protecting your equipment from receiving an incorrect signal.
It’s also perfect for connecting HDMI computers to SDI projectors because it scales the computer’s video to the broadcast television output standard that you choose.
Mini Converter UpDownCross HD features multi rate 3G-SDI connections for working in all formats up to 1080p60 including Level A and B devices plus computer resolution scaling via HDMI in.
You also get an HDMI input, reference in, audio delay for perfect AV sync, timecode conversion and both 3G-SDI and HDMI inputs and outputs allowing you to connect to virtually anything!

For further information check out the Blackmagic Design website

Connections
SDI Video Inputs 1 x SD, HD or 3G-SDI Video Input and 1 x External Reference Input.
HDMI Video Input 1 x HDMI type A connector.
SDI Video Outputs 1 x loop out and 2 x outputs
HDMI Video Output HDMI type A out. Output supports EDID of the monitor.
SDI Rates 270Mb, 1.5G, 3G.
Reference Input Black burst and Tri-Sync for SD & HD.
Multi Rate Support Auto detection of HD or standard definition SDI inputs.
Updates and Configuration USB
Reclocking Yes
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,
1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling 4:2:2
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision 4:2:2
SDI Color Space YUV
SDI Auto Switching Automatically detects SD, HD or 3G‑SDI.
Format Conversion
Video Conversion Convert any SD and HD input to "720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60"
Computer Scaling Scale DVI resolutions 640x480, 800x600, 1024x768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Software
Internal Software Upgrade Via included updater application.
Operating Systems macOS 10.12 Sierra, macOS High Sierra 10.13 or later, Windows 8.1 or Windows 10
Power Supply +12V universal power supply included with international socket adapters for all countries.
Power Consumption 5W
Operational Voltage Range 6 to 36 Vdc.
Physical Specifications 135mm x 92mm x 24mm, 247g
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Mini Converter UpDownCross HD
2V universal power supply with international socket adapters
Warranty 3 Year Limited Manufacturer's Warranty.
*Specifications correct at time of Publication
