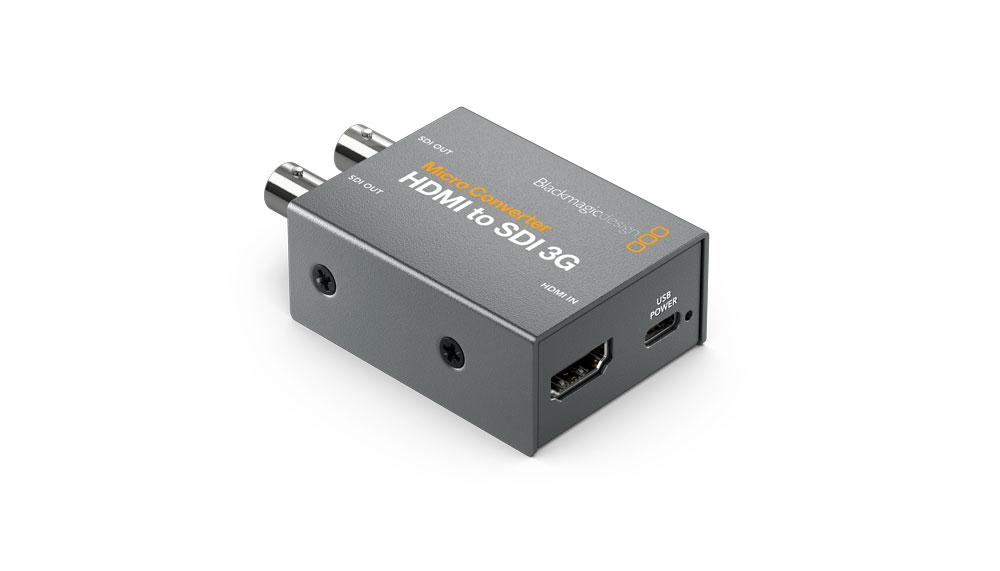

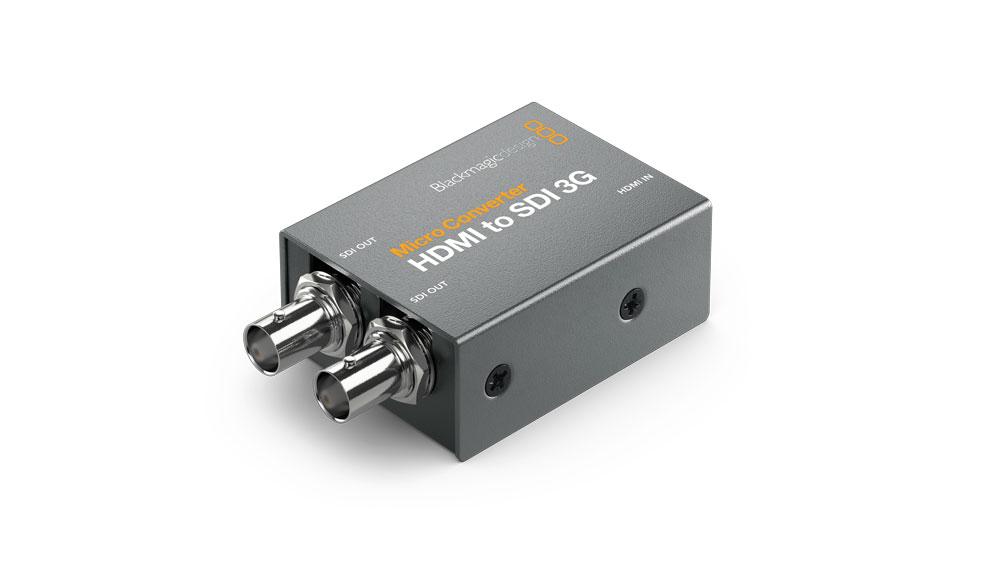

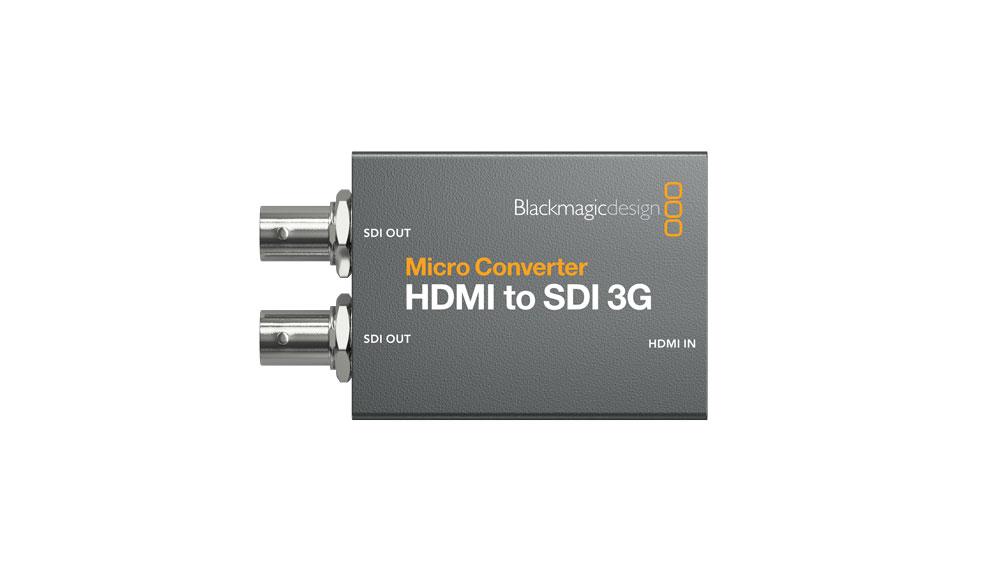

A Pack of 20 Blackmagic Micro Converters. Tiny broadcast quality video converters that convert from HDMI to SDI. No PSU Supplied.
The Blackmagic Micro Converters are incredibly tiny broadcast quality video converters that come in two models, one for converting from SDI to HDMI, and one for converting from HDMI to SDI. Use with the beautifully crafted Canare cables to ensure you get the best quality connection and signal.
The rugged, miniaturized design of Blackmagic Micro Converters makes them small enough to be used anywhere and conveniently hidden out of sight! You get HDMI and professional 3G-SDI connections for working with all SD and HD formats up to 1080p60. You can power them over USB-C, so Micro Converters can be powered by big screen televisions or laptop computers without having to plug them into the wall!
Blackmagic Micro Converters are so small you can use them anywhere! Whether you’re carrying one in your laptop bag or in your outside broadcast van and road cases, they’re professional, broadcast quality converters that can be easily hidden so the audience never sees them. They’re perfect for use on set in broadcast news, at live events that have screens and cameras all around, or even in episodic television shows feeding big screen televisions that are part of the set!
Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into a proper metal enclosure so you get a professional design you can trust! You get full size professional 3G-SDI connections, HDMI and more. The converters include two LED status indicators to confirm power and video signal.
Whether you’re working in SD or HD, Micro Converters feature the same broadcast quality 10-bit video processing found in full size converters, so you always get professional industrial strength SDI signals. Blackmagic Micro Converters work with 8 and 10-bit broadcast quality video in all SD and HD formats up to 1080p60. Full support is included for embedded audio and closed captioning. With Blackmagic Micro Converters, you get a truly professional converter that’s perfectly suited for high end broadcast applications.
Blackmagic Micro Converters include built in SDI re-clocking on the 3G-SDI input. The SDI re-clocking will regenerate the SDI video input, reduce SDI jitter and improve SDI eye pattern before the signal gets to the converter’s processing. This allows longer cable lengths because even degraded SDI signals can still be used. Other small, cheap converters often leave out important features such as this, making them unreliable for broadcast use. Blackmagic Micro Converters don’t suffer from these problems because they are a true professional design!
Even though they’re incredibly small, Blackmagic Micro Converters feature full size 3G-SDI and HDMI connections! The SDI connections are multi-rate, making them compatible with SD and HD-SDI equipment. For maximum compatibility, micro converters support both level A and level B 3G-SDI devices. Micro Converter SDI to HDMI also includes an SDI input loop through connection. Micro Converter HDMI to SDI features two 3G-SDI outputs, so you can connect it to multiple devices such as switchers, routers, monitors and more!
Blackmagic Micro Converters are powered via the same micro USB connection that’s used on smartphones so you can any USB device, or any smartphone charger to power the converters! You can even use smartphone chargers and rechargeable battery packs to power micro converters on set. With so many an easy to use power solutions, you’ll never be without a power supply again!
For Further information check out the Blackmagic Design website
|Connections||SDI Video Output: Automatically matches the SD, HD or 3G-SDI HDMI video input|
|HDMI: HDMI Type A in|
|Multi Rate Support: Auto detection of SD or HD|
|Updates, Configurations and Power: Micro USB|
|Standards||SDI Format Support: 525i29.97 NTSC, 625i25 PAL|
|HD Format Support: 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 1080i50, 59.94, 60|
|SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M|
|SDI Video Rates: SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility.|
|SDI Color Precision: 4:2:2|
|SDI Color Space: YUV and RGB|
|SDI Auto Switching: Automatically detects SD, HD and 3G-SDI|
|HDMI Format Support: 525i29.97 NTSC, 625i25 PAL 720p50, 59.94, 60 1080p24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94, 60|
|HDMI Color Precision: 4:2:2|
|HDMI Color Space: YUV and RGB|
|Software||Software Control: Mac OS X™ and Windows™ software upgrade via micro USB|
|Internal Software Upgrade: Via micro USB|
|Operating Systems||macOS 10.12 Sierra, macOS 10.13 High Sierra or later,|
|Windows 8.1 or Windows 10.|
|Settings Control||Via software utility|
|Power Consumption||2.0 Watts|
|Environmental Specifications||Operating temperature: 0° to 40° C (32° to 104° F)|
|Storage temperature: -20° to 60° C (-4° to 140° F)|
|Relative Humidity: 0% to 90% non-condensing|
|Warranty||3 Year Limited Manufacturer's Warranty|
*Specifications Correct at time of Publication
