Description
| Connections | |
|---|---|
| SDI Video Inputs | 1 x SD, HD or 3G-SDI. |
| SDI Video Outputs | Automatically matches the SD, HD or 3G-SDI HDMI video input. |
| HDMI Video Inputs | HDMI Type A in. |
| HDMI Outputs | HDMI Type A out. |
| Multi Rate Support | Auto detection of SD or HD. |
| Updates, Configurations and Power | USB C. |
| Reclocking | Yes |
| Standards | |
| SDI Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 720p60 |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, | |
| 1080p50, 1080p59.94, 1080p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, |
| SMPTE 424M, SMPTE 425M | |
| SDI Video Rates | SDI video connections are switchable between standard definition and high definition, and user selectable level A and B via setup utility. |
| SDI Color Precision | 4:2:2 |
| SDI Color Space | YUV |
| SDI Auto Switching | Automatically detects SD, HD and 3G-SDI |
| HDMI Video Standards | 525i29.97 NTSC, 625i25 PAL |
| 720p50, 720p59.94, 720p60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, | |
| 1080p50, 1080p59.94, 1080p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content. |
| Standards | |
| Software Control | Mac and Windows™ software via USB C. |
| Internal Software Upgrade | Via USB C. |
| Operating Systems | macOS 10.12 Sierra, macOS High Sierra 10.13 or later. |
| Windows 8.1 or Windows 10. | |
| Settings Control | Via software utility. |
| Power Consumption | 2.5W |
| Operational Voltage Range | 4.4 to 5.25V DC |
| Operating temperature | 0° to 40° C |
| Storage temperature | -20° to 60° C |
| Relative Humidity | 0% to 90% non-condensing |
| Physical Specifications | 81mm x 59mm x 25mm, 174g |

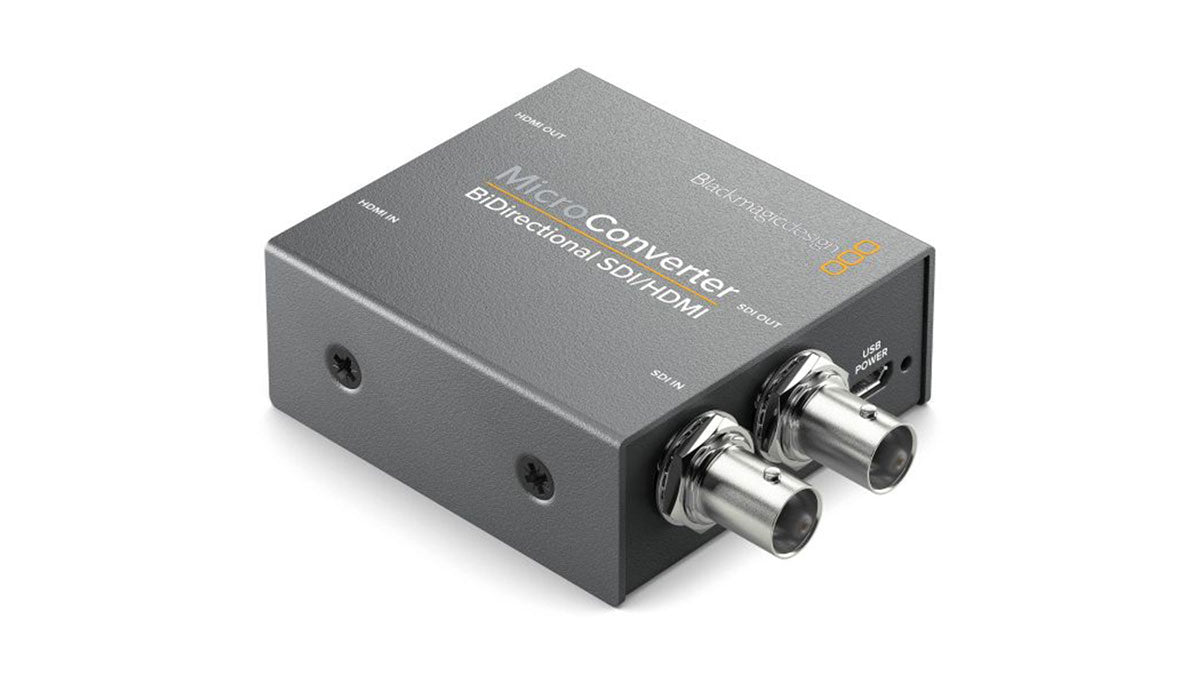

| What's Included | Micro Converter BiDirectional SDI/HDMI |
| +5V universal power supply with international socket adapters | |
| Warranty | 3 Year Limited Manufacturer's Warranty. |
*Specifications correct at time of publication
