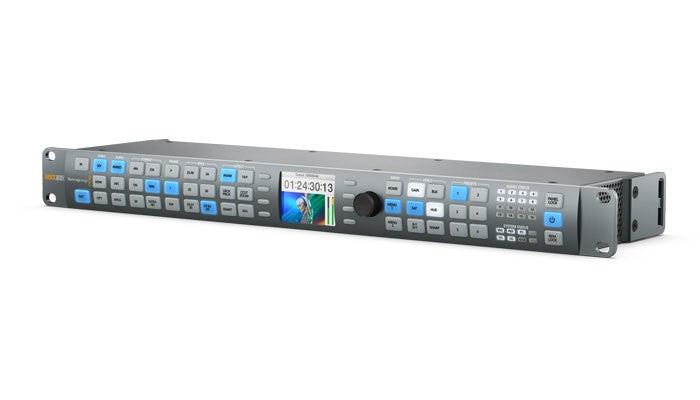

Teranex AV is specifically designed with new features for live events and professional AV installations, as well as broadcast and post production workflows. You get 1,089 up, down, cross and standards conversions for all formats up to 2160p60, along with Teranex’s patented algorithms and legendary image quality. Teranex AV offers low latency, and features a still store for adding logos and graphics, a live freeze frame and can generate a reference signal. You get professional 12G-SDI and quad SDI connections which can be used simultaneously, consumer HiFi, XLR audio, HDMI in, loop and outputs, and more! There are even metal brackets at the rear to prevent cables and connections from getting damaged when installed in tight locations!

Conversions

Teranex converters are the ultimate SD, HD and Ultra HD standards converters, and give you the quality and speed mandated by broadcasters worldwide. You can choose from models that give you up to a massive 1089 conversions, a wide range of broadcast connections, low latency processing, HDMI loop through and more! You get up, down, cross and standards conversions between virtually all SD, HD and Ultra HD formats and frame rates, including 3:2 cadence removal and insertion! Featuring advanced patented algorithms, Teranex converters give you visually transparent, high quality conversions in full 10-bit quality, complete with audio, closed captions, timecode and more!

Convert Anything to Anything

Whether you’re out in the field or in the studio, you never know what kind of video format you’re going to get or which video format you’re going to have to provide. Teranex converters give you so many realtime conversions that you’ll be ready for anything at anytime! Convert incoming feeds from overseas, use them in front of older broadcast decks to ensure they always receive the correct signal, or carry them in broadcast trucks so you’ll be ready to work with anything that comes your way! With Teranex converters you can even convert SD to HD or Ultra HD in real time and then display it on massive outdoor LEDs or digital signs at live concerts or sporting events!

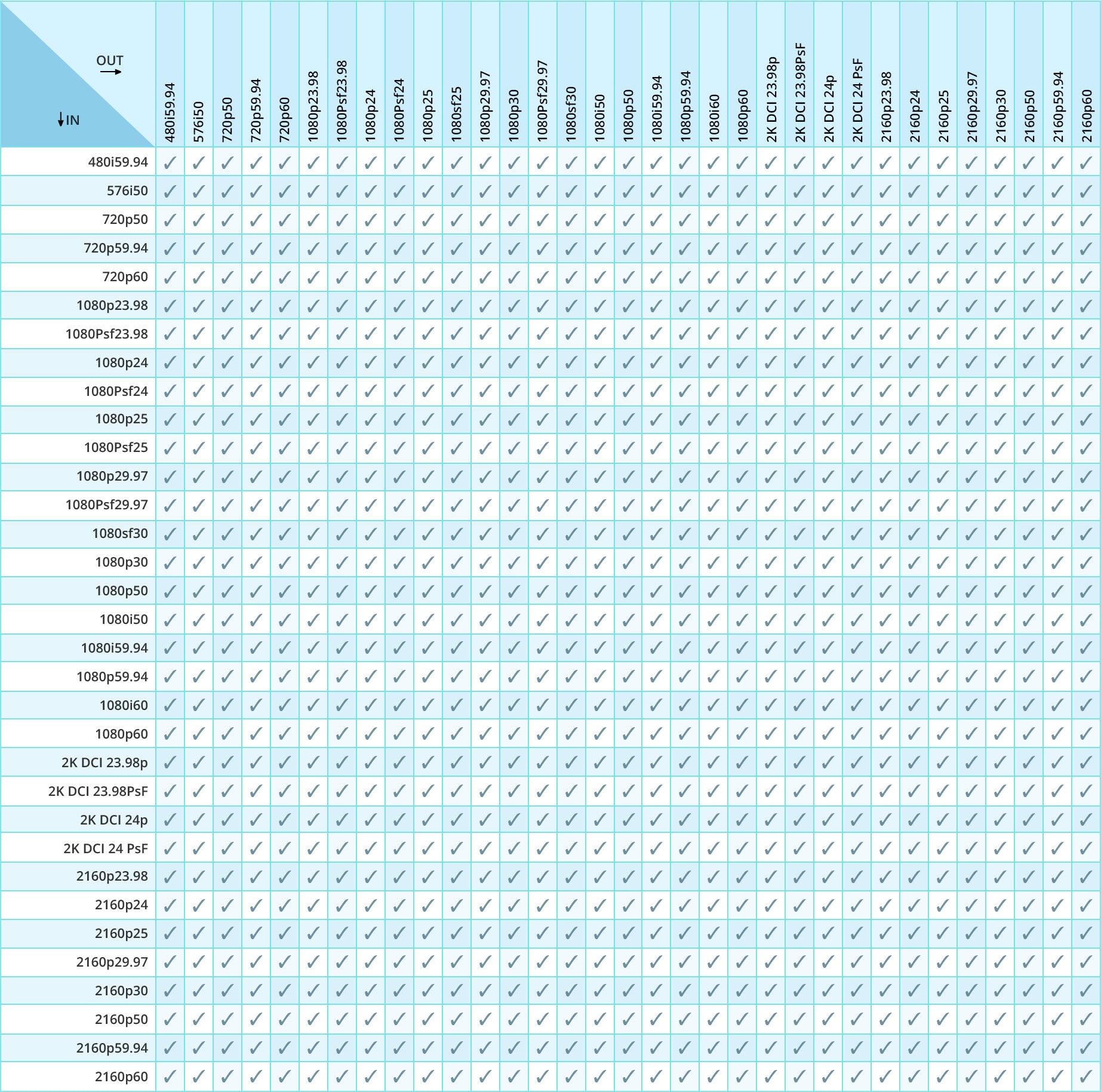

1089 Conversions

Teranex Express and Teranex AV can perform 1089 different conversions between SD, HD, and Ultra HD in real time with visually transparent results that are so good you won’t be able to see a difference from the original! The incredible power of Teranex processing includes up and down conversions, cross conversions and standards conversions with cadence detection, removal and insertion, optical quality scaling, and more. Conversions retain timecode, ancillary data including closed captioning, 16 channels of audio with support for remapping and up to 1 second delay, and perfect frame synchronization so your video is immediately ready for editing or broadcast.

Advanced HDMI Processing

With Teranex AV you also get HDMI input, loop through and outputs for the ultimate in flexibility at live events! That means you can do HDMI to SDI conversions without needing external adapters or conversion equipment! Regardless of your input format, you can loop out via HDMI to send the signal to a big screen projector while simultaneously converting and sending the signal to downstream equipment likes decks and monitors. You can even take the audio from AES, analog and RCA HiFi inputs and embed it into both HDMI and SDI during the conversion process!

Blackmagic Design Teranex AV Diagram

For Further information check out the Blackmagic Design website

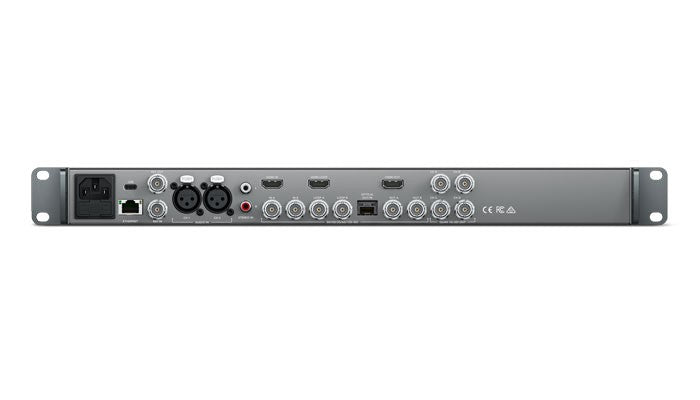

Connections SDI Video Input: 1x BNC (IN A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (IN B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable as 2nd input or for dual link input for 4:2:2 3G or 6G Ultra HD
SDI Video Input Loop: 1x BNC (IN A Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching. 1x BNC (IN B Loop) – Reclocked, 10-bit SD, HD, 2K, 3G HD, 6G and 12G Ultra HD auto switching.
SDI Video Output: 1x BNC (OUT A) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. 1x BNC (OUT B) – 10-bit SD, HD, 2K, 3G HD levels A and B, 6G and 12G Ultra HD auto switching. Usable duplicated output or dual link output for 4:2:2 3G or 6G Ultra HD.
Quad SDI Video Output: 4x BNC (Channels A, B, C, D) - 10-bit 3G-SDI Quad Link output when processor output video format is UHD. For other output formats, these connectors will supply four additional replicated SDI outputs.
HDMI Input: 1x HDMI 2.0 type A connector.
HDMI Loop Output: 1x HDMI 2.0 type A connector.
HDMI Output: 1x HDMI 2.0 type A connector.
SDI Audio Input: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
SDI Audio Output: 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Connection: 1x SFP Optical Fiber connector cage.
Optical Fiber Video Input (optional): 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD switchable.
Optical Fiber Video Output (optional): 1x 10­bit SD, HD, 3G HD, 2K, Ultra HD switchable. Not available while operating in Dual Link or Quad Link output modes.
Optical Fiber Audio Input (optional): 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Optical Fiber Audio Output (optional): 16 channels in SD, HD, 3G HD, 2K and Ultra HD.
Analog Audio Input: 2x XLR - 2 channels professional balanced analog audio (XLRs are shared with AES/EBU inputs)
AES/EBU Digital Audio Input: 2x XLR - 2 pairs (4 channels) professional 110Ω balanced digital audio (XLRs are shared with analog inputs)
Dolby Support Built-In: Dolby AC-3 pass through in all conversions. Dolby E pass through except during video frame rate conversions.
Multi Rate Support: SDI connections are switchable between standard definition, high definition and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 2K SDI, 3G HD, 6G and 12G Ultra HD.
Reference Input: 1x BNC - Blackburst in SD or tri-level sync in HD.
Reference Output: 1x BNC - Internal reference generator providing blackburst or tri-level sync output at the current output frame rate.
Computer Interface: USB type C port for software updates and Gigabit Ethernet RJ45 for remote control and configuration.

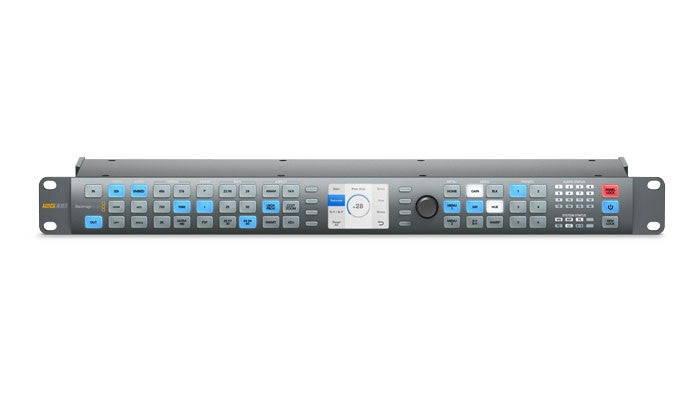

Processor Interface: Illuminated pushbuttons, status LEDs and LCD with easy to use onscreen menus.
Standards SD Format Support: 525i29.97 NTSC, 625i25 PAL
1.5G-SDI HD Format Support: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
3G-SDI HD Format Support: 1080p50, 1080p59.94, 1080p60 levels A and B
2K Format Support: 2K DCI 23.98p, 2K DCI 24p 2K DCI 23.98PsF, 2K DCI 24PsF
Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
SDI Metadata Support: VITC/ATC support, SMPTE 12M. Video indexing support including WSS, RP186 and AFD, SMPTE 2016. Closed captioning support for conversions to and from 608 and 708, SMPTE 334M.
Audio Sampling: Television standard sample rate of 48kHz and 24-bit HD, 20-bit SD.
Video Sampling: 4:2:2
Color Precision: 10-bit
Color Space: REC 601, REC 709
SDI Format Support: 525 NTSC, 625 PAL, 720HD, 1080HD, 2K DCI and Ultra HD 3840 x 2160 switchable.
Processing Aspect Ratio Conversion: Real time variable and fixed aspect ratio conversions.
Real Time Video Processing: Includes noise reduction, cadence detection with insertion/removal, scene cut detection, color correction and proc amp control
Low Latency Processing: Real time processing with 2 frame latency, available for selected format conversions.
Format Conversion: Real time up conversion, down conversion , cross conversion and SD/HD/Ultra HD standards conversion.
Colorspace Conversion: Hardware based real time
Still Store: Capture a video frame into non-volatile memory from the current input signal.
Freeze Frame: Temporarily freeze incoming live video.
Test Patterns: SMPTE 75% Bars; full-field color bars 75%; convergence grid; multi-burst; black.
Output Switching: Output may be switched between the input video, internal black, user still frame or a freeze frame from the input video.
Software Software Control: Teranex Setup software control application included free of charge for changing settings via Windows 8.1, Windows 10 and Mac OS X
Internal Software Upgrade: Via USB type C using the included Teranex Setup application
Operating Systems Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Power Requirements Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC power cable required. 100-240V, 50-60Hz
Environmental Specifications Operating Temperature: 5° to 50° C (41° to 122° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included Teranex AV
SD card with software and manual
Warranty Product Warranty: 12 Month Limited Manufacturer's Warranty

*Specifications correct at time of publication
