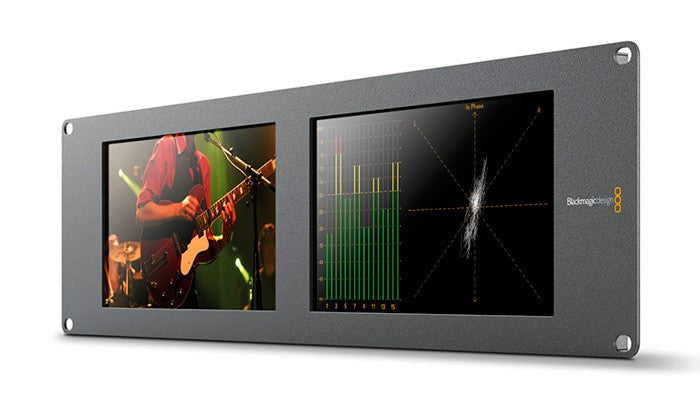

Blackmagic Design SmartScope Duo 4K 2 Hero

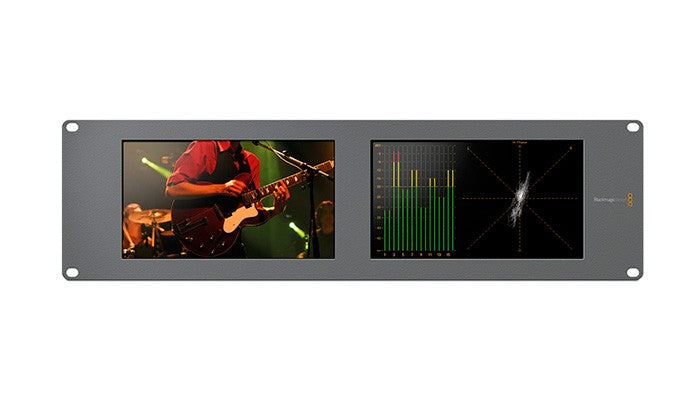

Blackmagic Design SmartScope Duo 4K 2 Front

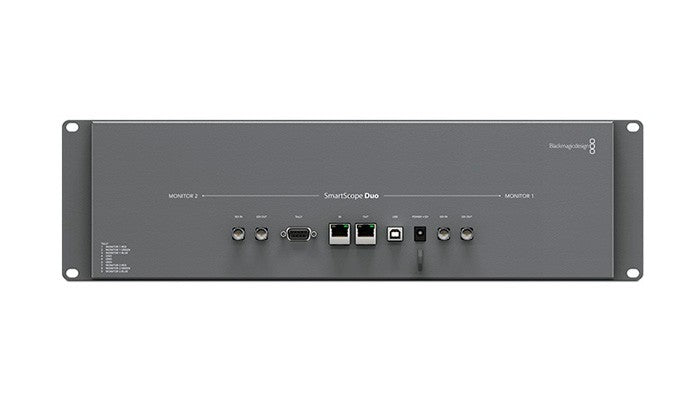

Blackmagic Design SmartScope Duo 4K 2 Rear
  • SKU: HDL-SMTWSCOPEDUO4K2

Blackmagic Design SmartScope Duo 4K 2

$1,060.00
  • Vendor: Blackmagic Design
  • Product Type: Monitoring

SmartScope Duo 4K 2 looks like a SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view!

The SmartScope Duo 4K model includes built in waveform monitoring when you need to analyze image quality more accurately than simply looking at the picture! You get seven of the most popular scopes most widely used in broadcast and post production facilities. Scope displays include waveform, vectorscope, RGB parade, YUV parade, histogram, audio phase and level scopes, and of course you can simply select to view the video itself! Now you don’t have to guess what your video and audio levels are, you can monitor them with precision using SmartScope Duo 4K!

Blackmagic Design SmartScope Duo 4K 2 Image 1

Select Picture

SmartScope Duo 4K gives you the choice to select a scope display or regular video on each of the 8 inch LCD displays. You can even monitor video on one LCD while running a scope such as waveform, histogram or audio on the other screen. This is a powerful combination because you can see the video you're monitoring alongside a real time scope measurement, all on the same SmartScope Duo 4K! You can always rely on SmartScope Duo 4K to give you broadcast accurate monitoring, ensuring your video production has perfect video and audio levels at all times!

Waveform

Waveform display is perfect for adjusting video levels or matching black background levels when keying! Waveform Display features a luminance waveform of the black and white levels in your video signal. It's perfect for setting the output levels on your broadcast decks and generally monitoring the levels of your production while you edit. Waveform display is a vital tool for color grading and a valuable reference for unifying background levels when keying.

Vectorscope

Vectorscope

A vectorscope is the only way to measure colors in video accurately! If you're color correcting video, vectorscope shows when color has been removed or nulled out for accurate white balance. When you need to apply a tint, vectorscope lets you see exactly how much tint you’re adding and what color it is. Sometimes monitors cannot be trusted, but with vectorscope you’ll always know the exact colors you’re working with! You can also easily align hue on decks using a vectorscope!

Parade Display

The real time RGB parade waveform view is the ideal scope for accurate color correction. You can see the color balance in ‘blacks’, ‘mids’ and ‘whites’, making it easy to balance colors for perfect looking images. RGB Parade lets you check for illegal colors because any video that drops below the black line, or above the 100% line, is an illegal RGB color! Vectorscope view cannot show illegal video levels, because vectorscope only plots colors and not the luminance component of video. However the RGB parade plots your video as R, G and B and so is the perfect way to keep track of illegal video levels! You can also select YUV parade display which shows the YUV component video as its transmitted down the SDI cable and is perfect for broadcast engineering analysis of SDI signals.

Audio View

Audio View

Monitor your audio levels with 16 channels of audio metering for viewing every channel in the SDI video connection! The audio scope also includes a stereo phase meter that can be selected to different SDI audio pairs. The stereo phase meter plots left and right audio as an XY scope display so you know exactly what your audio is at all times. It’s easy to see audio problems such as clipping, and out of phase audio can be seen as a left or right leaning display. If you don’t get a vertical oriented waveform then you know your audio channel balance is out! No audio problem can hide from audio scope display!

Histogram

Clipping levels on a live shoot results in loss of detail, which can cause huge problems when you try to adjust ‘blacks’ or ‘whites’ in post production. Histogram view lets you see where the pixels are in your video, and how they are distributed from black to white. You can see if your video is clipping and adjust the camera iris and ISO settings to keep all black and white detail in the image. This means you have the full contrast range of video for easy color correction during post production. Histogram will transform your shoots because you can see exactly what you're recording and the colorist who works on your job will benefit from the availability of the full contrast range of the camera!

For further information check out the Blackmagic Design website

Connections SDI Video Input: Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
SDI Video Output: 1 x 10 bit loop through SD, HD and 6G-SDI switchable.
SDI Audio Input: 16 channel embedded in SD and HD.
SDI Audio Output: 16 channel embedded in SD and HD.
Multi Rate Support: Standard definition SDI, high definition SDI and 6G-SDI.
Tally: 9-pin D connector
Standards SD Format Support: 625/25 PAL and 525/29.97 NTSC.
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97,1080p30, 1080p50, 1080p59.94, 1080p60
2K Format Support: 2048 x 1080p/23.98, 2048 x 1080p/24, 2048 x 1080p/25, 2048 x 1080PsF/23.98, 2048 x 1080PsF/24, 2048 x 1080PsF/25, 2048 x 1556PsF/23.98, 2048 x 1556PsF/24, 2048 x 1556PsF/25
4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
Audio Sampling: Television sample rate of 48KHz
Video Sampling: 4:2:2 and 4:4:4
Color Precision: 8-bit
Color Space: YUV and RGB
Computer Interface: USB 2.0 for software updates and Ethernet for configuration
Colorspace Conversion: Hardware based real time.
Scopes Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.
Software Software Included: Configuration utility for MAC and Windows.
Internal Software Upgrade: Via included firmware updater software.
Physical Installation: 3RU
Operating Systems macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
Power Requirements Power Supply: 12V universal power supply included with international socket adapters for all countries.
Power Consumption: < 20 Watts
Operational Voltage Range: 12V - 15V
Environmental Specifications Operating Temperature: 0° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included SmartScope Duo 4K
Power Supply
SD Card with Software
Warranty 12 Months Limited Manufacturer's Warranty.

*Specifications correct at time of Publication
