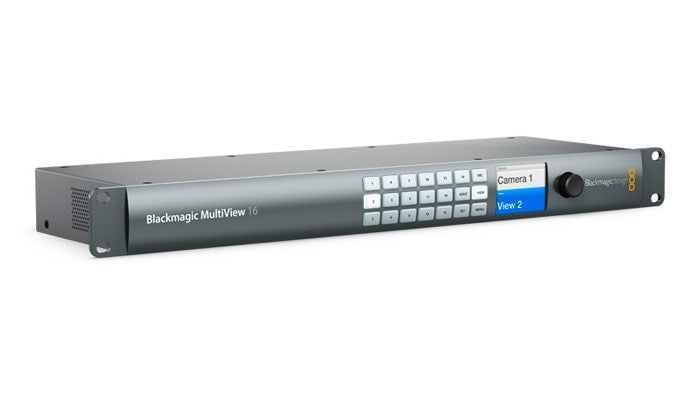

Blackmagic Design MultiView 16 Hero

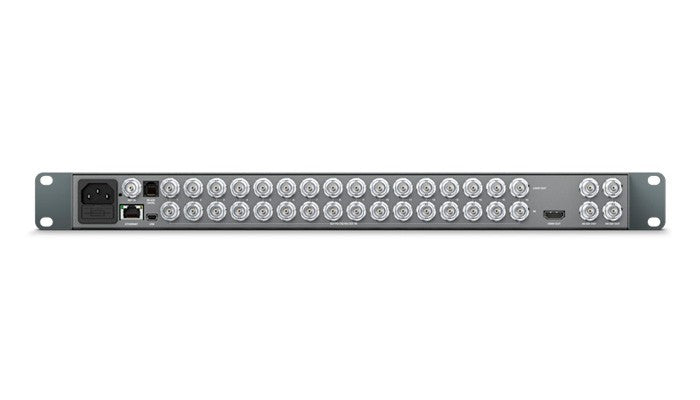

Blackmagic Design MultiView 16 Rear

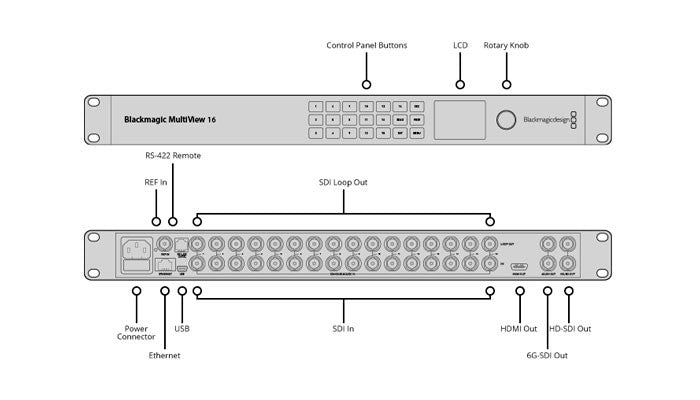

Blackmagic Design MultiView 16 Connections
  • SKU: HDL-MULTIP6G/16

Blackmagic Design MultiView 16

$2,009.00
  • Vendor: Blackmagic Design
  • Product Type: Monitoring

Monitor up to 16 SDI sources using an Ultra HD monitor or television so you get twice the resolution per view! Monitor from SD, HD or Ultra HD-SDI sources in any combination, in any order! Features full frame re-sync on each input.

Blackmagic Design MultiView 16 Image 1

Blackmagic MultiView 16 is the world’s first multi viewer that operates natively in Ultra HD, which allows you to use an Ultra HD monitor or television for twice the image sharpness, even if you are not even using Ultra HD in your facility yet! Now you can connect up to 16 different SD, HD and Ultra HD SDI sources into one display for monitoring! Blackmagic MultiView 16 allows 4, 9 or 16 views to be selected and each input includes a full frame re-synchronizer so you can have any combination of SD, HD and Ultra HD SDI sources connected, all at the same time!

Incredibly Sharp Monitoring - View up to 16 sources on a single screen!

With the availability of Ultra HD consumer televisions, now it’s possible to use the extra resolution these displays have to build incredibly sharp multi view monitoring at low cost. Imagine having big screen televisions in your facility with high resolution monitoring of each view! That’s twice the resolution of a normal multi view! Blackmagic MultiView 16 is incredibly flexible as it allows you to choose from 2x2 layout for 4 sources, 3x3 layout for 9 sources and 4x4 layout for 16 simultaneous sources, all from the front panel. Each of the inputs can be any combination of SD, HD and Ultra HD, all at the same time so it's just like having 16 independent broadcast monitors on the single display!

Studio or Live Use! Multi source monitoring designed for broadcasters

Multi view monitoring is ideal whether you’re building a massive control room with lots of incoming feeds or are working on location in tight spaces that don’t have room for multiple monitors. Blackmagic MultiView 16 can be used for live production, on set, in control rooms, post facilities and more! With Blackmagic MultiView 16 you don’t need to connect multiple monitors, dozens of cables or run extra power to see all of your video sources! Simply plug your cameras, decks, switchers, routers and feeds into the SDI connections and you can see everything with amazing clarity and detail on a single Ultra HD monitor!

For further information check out the Blackmagic Design website

Connections SDI Video Input: 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
SDI Video Loop Output: 16 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Multi View Outputs: 4 x SDI plus 1 x HDMI (2 x HD, 2 x 6G-SDI, 1 x HDMI), able to be used concurrently.
SDI Video Multi View Outputs: 2 x 10-bit HD-SDI, 2 x 10 bit 6G-SDI.
HDMI Video Multi View Outputs: 1 x HDMI type A connector. Output supports EDID of the monitor.
Reference Input: Black burst and Tri-level Sync for SD, HD and 4K.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.
Updates: USB or Ethernet.
Control: 16 buttons for local control of MultiView 16. 5 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Configuration: Via front panel LCD or use either RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.
RS-422 Control: 1 x input for configuring layouts.
Reclocking: On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
Standards SD Format Support: 525i29.97 NTSC, 625i25 PAL
HD Format Support: 720p50, 59.94, 60 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080PsF23.98, 24, 25, 29.97, 30 1080i50, 59.94, 60
2K Format Support: 1080p23.98, 24, 25, 1080PsF23.98, 24, 25
Ultra HD Format Support: 2160p23.98, 24, 25, 29.97, 30
4K Format Support: 2160p24
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
SDI Video Rates: SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
SDI Video Sampling: 4:2:2 and 4:4:4.
SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
SDI Color Precision: 10-bit 4:2:2 and 4:4:4.
SDI Color Space: YUV or RGB for inputs, YUV for outputs.
SDI Auto Switching: Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.
SDI Metadata Support: Video payload identification ancillary data as per SMPTE 352M.
Standards Built-in 1.5” LCD for menu settings.
Software Software Control: Multi view software included free for Windows™ and Mac OS X™.
Internal Software Upgrade: Via included updater application.
Operating Systems Mac OS X 10.11 El Capitan, macOS Sierra or later.
Windows 8.1 or Windows 10.
Power Requirements Power Fail Protection: MultiView 16 settings preserved and restored instantly at power on.
Power Supply: IEC power cable required. 90 - 240V AC input.
Power Consumption: 45 Watts
Environmental Specifications Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included Blackmagic MultiView 16
SD card with software and manual
Warranty 12 month Limited Manufacturer's Warranty.

*Specifications Correct at time of Publication
