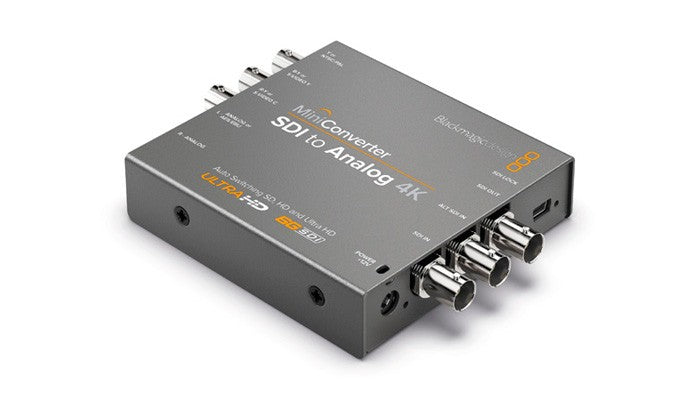

Blackmagic Design Mini Converter - SDI to Analog 4K Hero

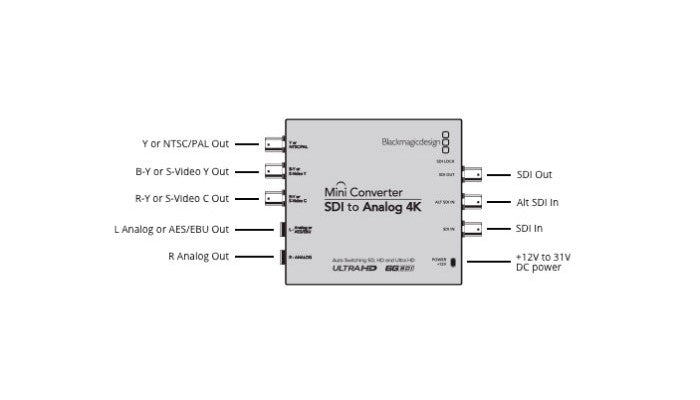

Blackmagic Design Mini Converter - SDI to Analog 4K Diagram
  • SKU: CONVMASA4K

Blackmagic Design Mini Converter - SDI to Analog 4K

$402.00
  • Vendor: Blackmagic Design
  • Product Type: Converters

Mini Converter SDI to Analog 4K includes everything you need to convert from SD, HD, 3G and 6G-SDI video to analog in HD/SD component, NTSC and PAL video. The built in down converter means you can even connect Ultra HD sources to component video in SD or HD as well as NTSC and PAL video! Easily connect any analogue equipment such as Betacam SP, VHS, and video monitors!

For further information check out the Blackmagic Design website

Connections SDI Video Input: Switchable between SD, HD and 6G-SDI.
SDI Video Output: Automatically matches the SD, HD and 6G-SDI video input.
Analog Video: NTSC, PAL, S-Video and component SD/HD from 6G-SDI input.
Analog Audio: 2 channels of professional balanced analog audio with standard 1/4 inchjack connections.
AES/EBU Digital Audio: 2 channels of professional balanced digital with standard 1/4 inch jack connections.
SDI Redundant Input: Automatically switches over if main SDI input is lost.
Multi Rate Support: Auto detection of SD, HD or 6G-SDI.
Updates and Configuration: USB
Reclocking: Yes
Standards SD Format Support: 525/23.98 NTSC, 525/29.97 NTSC. 625/25 PAL.
HD Format Support: 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60
2K Format Support: 2048 x 1080PsF23.98, 2048 x 1080p23.98, 2048 x 1080PsF24, 2048 x 1080p24, 2048 x 1080PsF25, 2048 x 1080p25
4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p24
SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601.
SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
SDI Video Sampling: 4:2:2
SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
SDI Color Precision: 4:2:2
SDI Color Space: YUV
SDI Auto Switching: Automatically detects SD, HD or 6G-SDI.
Analog Format Support: 625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
Analog Color Space: YUV
Analog Color Precision: 4:2:2
Format Conversion HD down conversion
Software Software Control: Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade: Via included updater application.
Operating Systems macOS 10.12 Sierra, macOS 10.13 High Sierra or later, Windows 8.1 or Windows 10.
Settings Control Mini Switches or USB software.
Power Requirements Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption: 8.04 Watts
Operational Voltage Range: 12 - 31V DC
Environmental Specifications Operating temperature: 0° to 40° C (32° to 104° F)
Storage temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included Mini Converter SDI to Analog 4K
Software CD
12V universal power supply with international socket adapters
Warranty 3 Year Limited Manufacturer's Warranty.

*Specifications Correct at time of Publication
