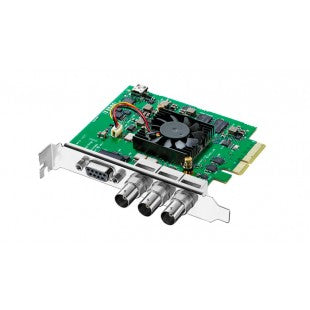

Blackmagic Design DeckLink SDI 4K Hero

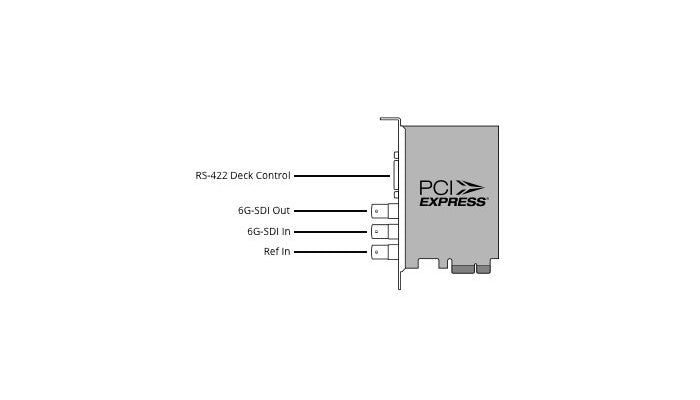

Blackmagic Design DeckLink SDI 4K Connectors
  • SKU: BDLKSDI4K

Blackmagic Design DeckLink SDI 4K

$402.00
  • Vendor: Blackmagic Design
  • Product Type: Capture & Playback

DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows or Linux computer. DeckLink SDI 4K is the world’s smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD-SDI, 2K and Ultra HD equipment. You also get RS-422 deck control, internal keying and reference input for a complete solution for editing, paint, design and more.

For further information check out the Blackmagic Design website

Connections SDI Video Input: 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Video Output: 1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
SDI Audio Input: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
SDI Audio Output: 16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
Sync Input: Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or UHD format.
Device Control: Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
Computer Interface: PCI Express 4 lane generation 1, compatible with 4,8 and 16 lane PCIe Slots.
Codecs Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.
Software Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.
Physical Installation: PCI Express 4 lane generation 1, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.
Software Applications DaVinci Resolve, Fusion, Final Cut Pro X, Premiere Pro CC, Avid Media Composer, After Effects CC, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Photoshop CC
Other supported applications include: Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
Video Standards SD Format Support: 625/25 PAL, 525/29.97 NTSC.
HD Format Support: 720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.
SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support: VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Audio Sampling: Television standard sample rate of 48 kHz at 24 bit.
Video Sampling: 4:2:2 and 4:4:4 (4K is 4:2:2)
Color Precision: 10-bit
Color Space: REC 601, REC 709
Multiple Rate support: SDI video connections are switchable between SD/HD/2K and UHD.
Processing Colorspace Conversion: Hardware based real time.
HD Down Conversion: Built in, high quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion: Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom.
Cross Conversion: Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve.
Operating Systems Mac OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
Linux
EMC Certifications FCC, CE and C-Tick
Environmental Specifications Operating Temperature: 5° to 40° C (32° to 104° F)
Storage Temperature: -20° to 45° C (-4° to 113° F)
Relative Humidity: 0% to 90% non-condensing
What's Included DeckLink SDI 4K
SD Card
Warranty 3 Year Limited Manufacturer's Warranty.

*Specifications correct at time of publication
