*Requires 4 lane PCIe

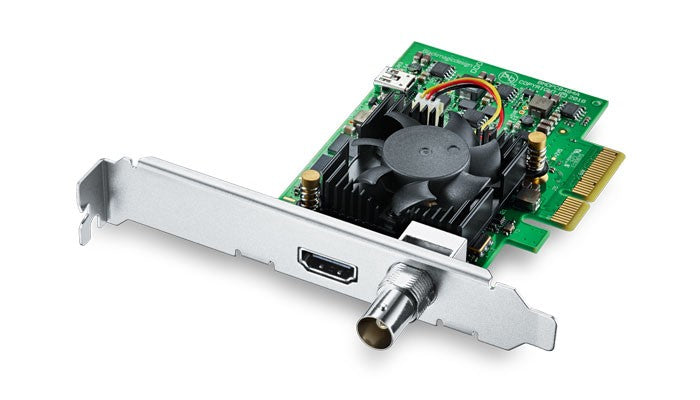

DeckLink Mini Monitor 4K is a low profile PCIe playback card, featuring 6G-SDI and the latest HDMI 2.0a connections so you can monitor all formats up to 2160p30 from your computer! The SDI and HDMI outputs let you connect to any television or monitor and automatically detect and switch between all video formats. You even get high dynamic range playback and metadata over HDMI, along with support for Rec. 2020 color space. You can even develop your own custom playback solutions using the Blackmagic Desktop Video SDK for Mac OS X, Windows and Linux! Includes two PCIe shields for both full height and low profile slots.
DeckLink capture and playback cards are used every day in the production of television commercials, music videos, episodic television programs and Hollywood feature films. With cutting edge technologies built in, you get the highest quality video and maximum reliability. No other capture cards support more applications and more platforms than DeckLink, so you can always work with your favorite software. Every DeckLink PCIe card can be installed in Mac, Windows and Linux based workstations and media servers to give you ultimate flexibility!
Highest Quality Connections
Every DeckLink card features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out. You also get a down converted SD output. DeckLink SDI 4K is perfect for high quality 10 bit SDI use only. All models include black burst/tri-sync reference and serial deck control. All DeckLink 4K models switch between SD and HD and Ultra HD, while the advanced DeckLink 4K Extreme 12G and DeckLink 4K Pro support DCI 4K and other high frame rate feature film formats!
For further information check out the Blackmagic Design

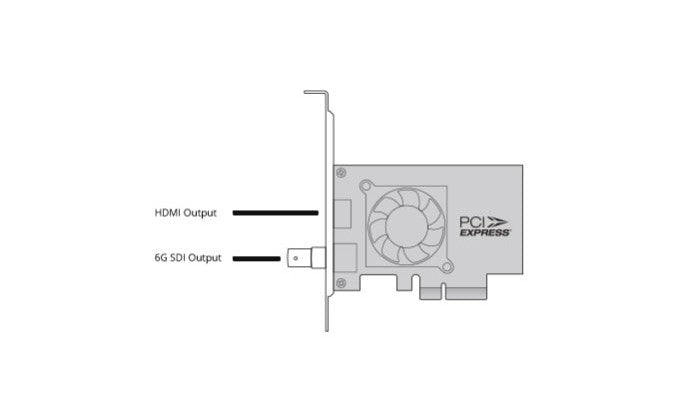

|Connections||SDI Video Output: 1 x 10 bit SD/HD/Ultra HD switchable.|
|SDI Audio Output: 16 channels embedded in SD, HD, Ultra HD.|
|HDMI Video Output: 1 x HDMI 2.0a connector.|
|HDMI Audio Output: 8 Channels embedded in SD, HD, Ultra HD.|
|Computer Interface: Gen 2 PCIe Express 4 lane, compatible with 4, 8 and 16 lane PCIe slots.|
|Codecs||Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.|
|Software||Software Included: Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X and Windows.|
|Internal Software Upgrade: Firmware built into software driver. Loaded at system start or via updater software.|
|Physical Installation: PCI Express 4 lane, compatible with 4, 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.|
|Software Applications||DaVinci Resolve|
|Final Cut Pro X|
|Premiere Pro CC|
|Avid Media Composer|
|After Effects CC|
|Avid Pro Tools|
|Other supported applications include: Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.|
|Video Standards||SD Format Support: 525i59.94 NTSC, 625i50 PAL|
|HD Format Support: 720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF301080i50, 1080i59.94, 1080i60|
|Ultra HD Format Support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30|
|4K DCI Format Support: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p|
|SDI Compliance: SMPTE 259M and 292M.|
|Audio Sampling: Television standard sample rate of48 kHz and 24 bit.|
|Video Sampling: 4:2:2|
|Color Precision: 10-bit|
|Color Space: REC 601, REC 709, REC 2020|
|HDMI Configuration: HDMI automatically configures to connected display.|
|HDMI Resolution: Pixel for pixel HD resolution input to connected device.|
|HDMI Color Precision: 10-bit|
|Multiple Rate support: SDI and HDMI are switchable between standard definitlon and high definition.|
|Processing||Colorspace Conversion: Hardware based real time.|
|HD Down Conversion: Software based down conversion during video playback.|
|Real Time Effects: Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.|
|Operating Systems||Mac OS X 10.11 El Capitan, macOS 10.12 Sierra, macOS 10.13 High Sierra or later.|
|Windows 7, 8.1 and 10, all 64-bit.|
|Environmental Specifications||Operating Temperature: 5° to 40° C (32° to 104° F)|
|Storage Temperature: -20° to 45° C (-4° to 113° F)|
|Relative Humidity: 0% to 90% non-condensing|
|What's Included||DeckLink Mini Monitor 4K|
|Low profile slot bracket|
|SD card with software and manual|
|Warranty||3 Year Limited Manufacturer's Warranty.|
|* Specifications correct at time of publication|
