The ATEM Mini Pro is a new low cost live production switcher with all the features of ATEM Mini but now with extra features for recording, streaming and monitoring.

ATEM Mini Pro includes a new hardware streaming engine to allow direct streaming via its Ethernet connection to YouTube Live, Facebook and Twitch. There is also support for recording the stream direct to USB flash disks in H.264, plus support for recording to multiple disks for continuous recording. The new model also includes a multiview on the HDMI video output that allows all inputs to be monitored on a single monitor, as well as live status of recording, streaming and the audio mixer.

The ATEM Mini Pro model has a built in hardware streaming engine for live streaming via its ethernet connection. That means you can live stream to YouTube, Facebook and Twitch in better quality, without dropped frames and with much simpler settings. Just select the streaming service and enter the streaming key! There are palettes in ATEM Software Control for streaming setup, plus streaming status is also displayed in the multiview. Streaming status is easy to understand as the data rate indicator shows internet speed required for the video format you're using. If you're technically minded, you can even hack the detailed streaming profiles in the XML preference file and load new services.

The ATEM Mini Pro model also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video files with AAC audio that you streamed, so you can direct upload to any online video site, such as YouTube and Vimeo. ATEM Mini Pro supports multiple disks when used with a USB hub or Blackmagic MultiDock, so when a disk fills recording can continue to a second disk for non-stop recording. Record settings and disk selection are set up in ATEM Software Control and there's a record status view in the built in multiview. You can even trigger recording on external Blackmagic Pocket Cinema Cameras!

For a more broadcast style workflow, you can remote control your cameras from ATEM Mini! Blackmagic Pocket Cinema Camera 4K and 6K models can work as studio cameras with control sent via the HDMI connection to ATEM Mini. That means you can control the camera settings as well as the camera’s color corrector from ATEM Software Control. Imagine changing ISO and tint, plus lens iris, focus and zoom, so camera operators can focus on the shot! There are two types of control interface, CCU layout for traditional tint color control and a DaVinci color corrector interface allowing the camera’s built in DaVinci color corrector to add incredible digital film "looks" to your live production!

When doing larger live productions with multiple cameras, it’s very useful to see all your video sources at the same time on a single monitor. The ATEM Mini Pro model includes a professional multiview that lets you see all 4 video inputs, plus preview and program on a single HDMI television or monitor! Simply select M/V on the front panel video output control buttons to select multiview! Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters. You can also see the media player so you know what graphic is selected. Plus multiview even includes status for recording, streaming and the Fairlight audio mixer!

Features miniaturized control panel based design.
Supports connecting up to 4 cameras or computers.
USB output operates as a webcam and supports all video software.
Live streaming via Ethernet supported on ATEM Mini Pro.
Recording to USB flash disks in H.264 supported on ATEM Mini Pro.
Two stereo audio inputs for connecting desktop or lapel microphones.
Automatically standards converts and re-syncs all HDMI inputs.
Includes free ATEM Software Control for Mac and Windows.
Internal media for 20 RGBA graphics for titles, opening plates and logos.
Includes ATEM Advanced Chroma Key for green/blue screen work.
Multiview allows monitoring of all cameras on ATEM Mini Pro.
Audio mixer supports limiter, compressor, 6 band EQ and more!
Supports remote HDMI control with Blackmagic Pocket Cinema Cameras.

Find out further info over at Blackmagicdesign.com

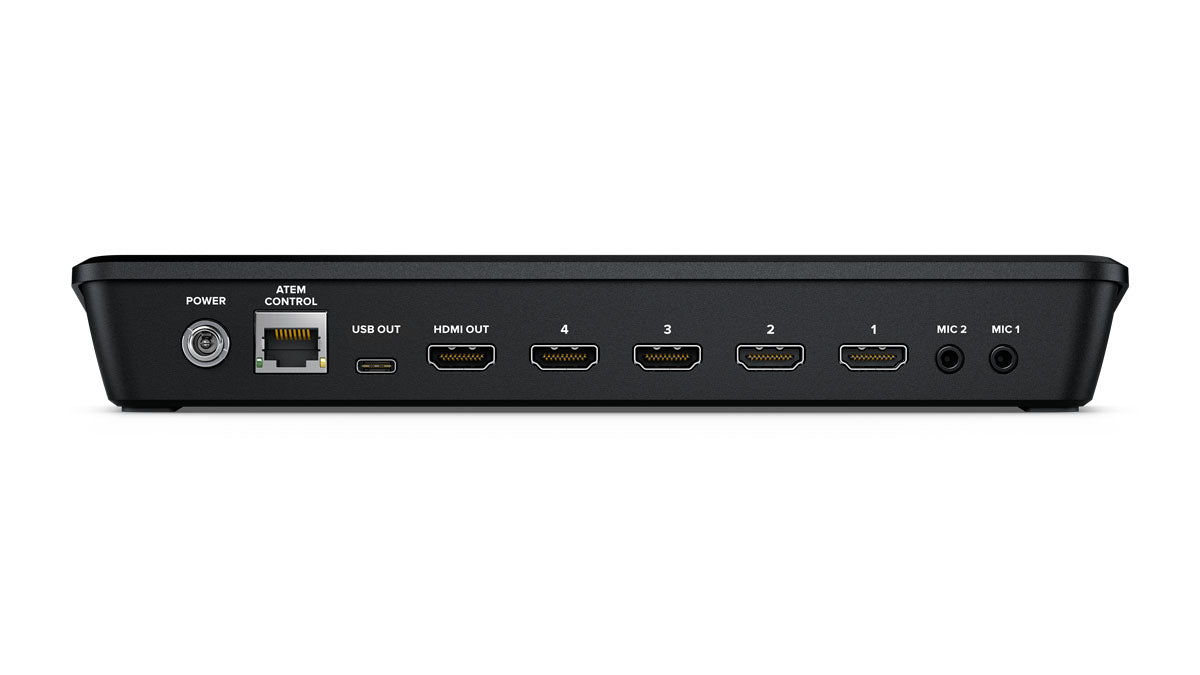

Connections
Total Video Inputs	4
Total Outputs	2
Total Aux Outputs	1
Total Audio Inputs	2 x 3.5mm stereo mini jack.
Total Audio Outputs	None, embedded audio only.
Timecode Connection	None
HDMI Video Inputs	4 x HDMI type A, 10-bit HD switchable.
HDMI Video Inputs	2 channel embedded audio.
Video Input Re-Sync	On all 4 HDMI inputs.
Frame Rate and Format Converters	On all 4 HDMI inputs.
HDMI Program Outputs	1
Ethernet	Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
Computer Interface	1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.
Standards
HD Video Input Standards	720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60
HD Video Output Standards	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards	None
Video Sampling	4:2:2 YUV
Color Precision	10-bit
Colour Space	Rec 709
HDMI Input Resolutions from Computers	1280 x 720p 50Hz, 59.94Hz and 60Hz1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 60Hz 1920 x1080i 50 and 59.94Hz 60Hz
Colourspace Conversion	Hardware based real time.
Audio Mixer	6 input x 2 channel mixer.
	Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
	Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
Product Specifics
Upstream Keyers	1
Downstream Keyers	1
Advanced Chroma Keyers	1
Linear/Luma Keyers	2
Transition Keyer	DVE only.
Total Number of Layers	5
Pattern Generators	1
Colour Generators	2
DVE with Borders and Drop Shadow	1
Interface	Minimum monitor resolution of 1366 x 768.
Streaming
Direct Streaming	ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).
Recording
Direct Recording	1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
Media Format	Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Multi View Monitoring
Multi View Monitoring	1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.
Multi View Video Standard	HD
Media Player
Media Players	1
Channels	Fill and key for each Media Player.
Media Pool Still Image Capacity	20 with fill and key.
Media Pool Still Image Format	PNG, TGA, BMP, GIF, JPEG and TIFF.
Control
Control Panel	Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
Control Panel Connection	Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
Control Panel Compatibilty	Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
Control Panel Included	ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.
Software
Software Updates	Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration	Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Operating Systems	Mac 10.14 Mojave,Mac 10.15 Catalina or later.
Operating Systems	Windows 10 64 bit only.
Power Requirements
Power Supply	1 x External 12V power supply.
Power Usage	36W
Environmental Specifications
Operating Temperature	5° C to 40° C (41° - 104° F)
Storage Temperature	-10° to 60° C (14° to 140° F)
Relative Humidity	0% to 90% non-condensing
What's Included	ATEM Mini Pro
What's Included	External 12V DC power supply with international socket adapters
Warranty	12 Months Limited Manufacturer's Warranty.
