Blackmagic Design ATEM 1 M/E Advanced Panel Hero
Blackmagic Design ATEM 1 M/E Advanced Panel Side

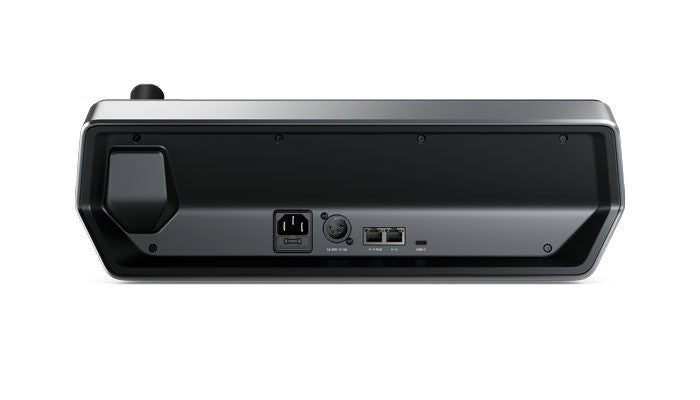

Blackmagic Design ATEM 1 M/E Advanced Panel Back

Blackmagic Design ATEM 1 M/E Advanced Panel 10

$4,449.00 $4,869.00
  • Vendor: Blackmagic Design
  • Product Type: Control Panels

The ATEM 1 M/E Advanced Panel, an elegantly designed compact hardware control panel designed to work with all ATEM switchers.

The ATEM 1 M/E Advanced Panel features the latest broadcast technology, smooth professional buttons, knobs, T-Bar fader and joystick, a built in LCD and more.
It is designed to give customers a control panel that ensures precise control over their ATEM live production switcher when producing complex live television programs with multiple cameras and sources. The compact size fits in a standard equipment rack, making it perfect for use in fly away kits, outside broadcast trucks, and at live events with limited space.

For further information check out the Blackmagic Design website

Ethernet 2 x 10/100/1000 BaseT with loop output for additional control panels or computers
Software Updates 1 x USB-C for firmware updates
Direct Cross Points 10
Shifted Cross Points 20
Crosspoint Button Type Tri-Color LED
Crosspoint Label 3 rows 24 character LCD
Next Transition Selectors BKG, Key 1 - Key 4.
On-Air indicator 4
Power Status Indicators None
DSK Transition Selectors Auto, Cut, Tie/Preview.
Preview Transition 1
Transition Rate Displays Via main menu
LCD Menu Displays 3
Menu Control 20 buttons
Dedicated Macro Buttons 10
Multi Control Buttons None
Destination Bus 1
Source Select Bus 1
Fader Bar 1
3 Axis Joystick 1
Numeric Keypad 1
Software ATEM Software Control Panel.
Operating Systems macOS 10.12 Sierra, macOS High Sierra 10.13 or later, Windows 8.1 or Windows 10.
Input Voltage 1 x Internal 110 - 240V AC.
Redundant Power Yes
Power Usage 45W
Physical Specifications 430mm x 389mm, 5.74kg
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity Up to 95%
Warranty 12 Month Limited Manufacturer's Warranty.

*Specifications correct at time of publication
