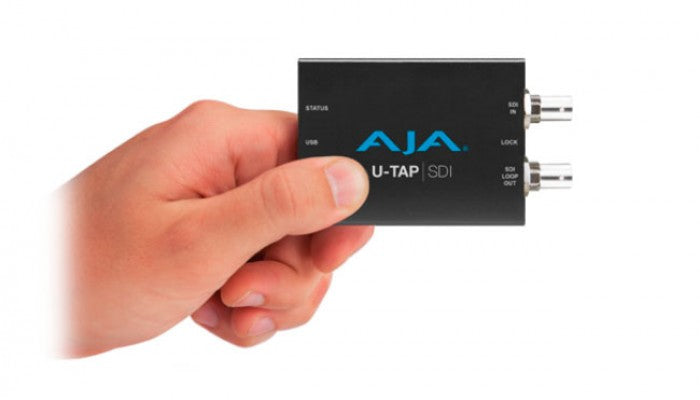

AJA U-TAP SDI HD/SD USB 3.0 Capture Device Hero

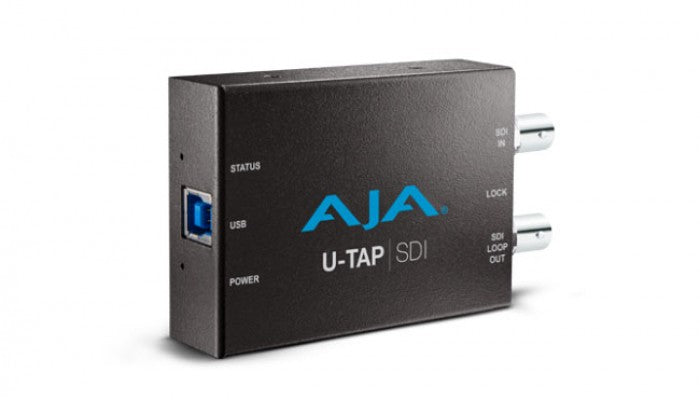

AJA U-TAP SDI HD/SD USB 3.0 Capture Device Side

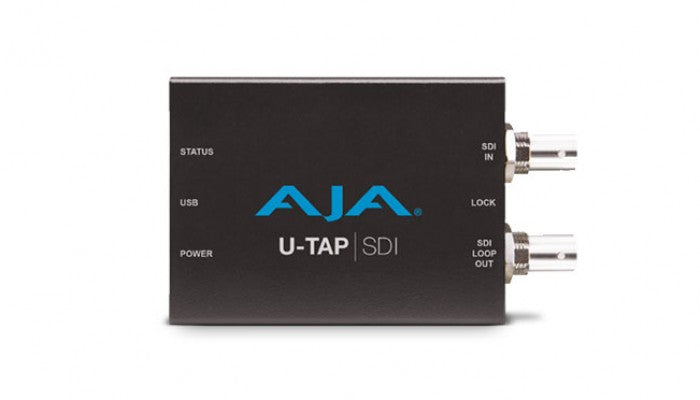

AJA U-TAP SDI HD/SD USB 3.0 Capture Device Front
  • SKU: AJA-U-TAP-SDI

AJA U-TAP SDI HD/SD USB 3.0 Capture Device

$505.00
  • Vendor: AJA
  • Product Type: Capture & Playback

Pocket Power

U-TAP SDI is smaller than a smart phone, and is incredibly useful in the field, on set or at a studio where USB connectivity provides a quick and easy way to obtain SDI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.

U-TAP SDI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects, perfect for live events and fast moving subjects.

U-TAP SDI also provides a SDI looping output, allowing you to loop through the source SDI signal to monitors, switchers and more.

U-TAP SDI, pocket power to go.



Software Compatibility

U-TAP SDI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatability with a wide range of professional software applications and a seamless integration between the native software and AJA’s high quality hardware letting you focus on the work, not the technology.

Connections

Straight forward connectivity

  • USB 3.0 host interface
  • HD-SDI Input
  • SDI Out (looping output)

AJA U-TAP SDI HD/SD USB 3.0 Capture Device Connectors

For further information check out the AJA website

Video Formats Video
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 6
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97
Scaled
1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
1280 x 720p 25, 29.97, 30, 50, 59.94, 60
1024 x 576p 25, 29.97, 30, 50, 59.94, 60
856 x 480p 25, 29.97, 30, 50, 59.94, 60
768 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 360p 25, 29.97, 30, 50, 59.94, 60
Video Input Digital 3G-SDI, SMPTE-259/292/424, 4:2:2 (1 x BNC)
Video Loop Output 1 x 3G-SDI (1 x BNC)
Audio Input Digital 2-Channel, SDI embedded audio, 48 kHz sample rate
Host Interface USB 3.0/USB 2.0 UVC/UAC compliant
Size (w x d x h) 4.1" x 2.4" x 1.0" (103 mm x 61mm x 25mm)
Weight 0.3 lb (0.2 kg)
Power 5V USB bus powered; 6.5W max
Environment Safe Operating Temperature Range: 0 to 40C (32F to 104F)
Storage Temperature: -40 to 60 C -40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

*Specifications correct at time of publication
