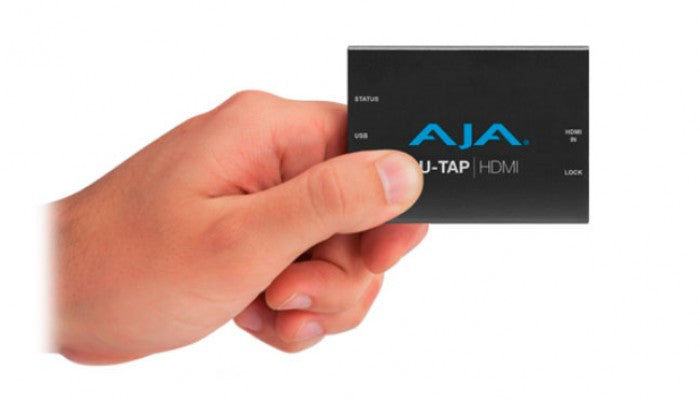

AJA U-TAP HDMI HD/SD USB 3.0 Capture Device Hero

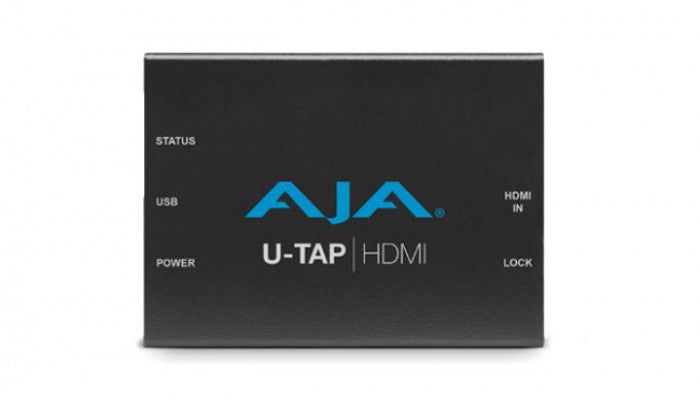

AJA U-TAP HDMI HD/SD USB 3.0 Capture Device Front

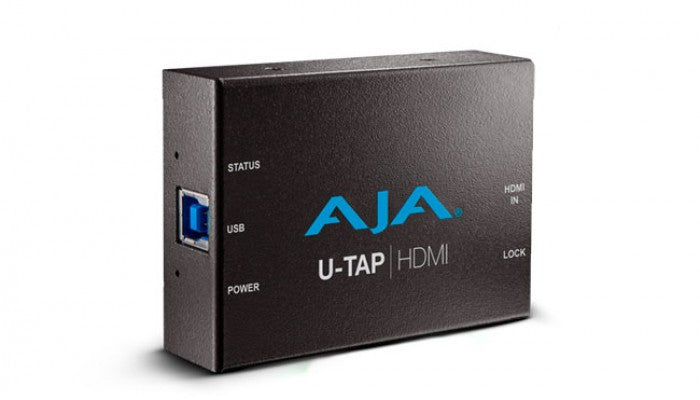

AJA U-TAP HDMI HD/SD USB 3.0 Capture Device Side
  • SKU: AJA-U-TAP-HDMI

AJA U-TAP HDMI HD/SD USB 3.0 Capture Device

$505.00
  • Vendor: AJA
  • Product Type: Capture & Playback

Small and simple to use, U-TAP connects directly to your computer system via a USB 3.0 connection which provides the simplest implementation ever, with no drivers to install and incredible software compatibility. U-TAP HDMI and U-TAP SDI offer easy, cost effective and portable solutions for plug and play capture that is compatible with Windows, Mac OS X, and Linux operating systems and a broad range of creative applications. From video conferencing to streaming to traditional postproduction and more, U-TAP offers powerful functionality without requiring any third party driver software.

Pocket Power

U-TAP HDMI is smaller than a smart phone, and is incredibly useful in the field, on set or at a studio where USB connectivity provides a quick and easy way to obtain HDMI sources for capture, without the need to install additional software drivers. Small enough to carry anywhere with you, its bus powered USB connectivity ensures you will never be looking for a power source.

U-TAP HDMI supports frame rates up to 1080p 60, for your HD High Frame Rate (HFR) projects, perfect for live events and fast moving subjects.

U-TAP HDMI, pocket power to go.

Software Compatibility

U-TAP HDMI is UVC and UAC compatible on Mac, Windows and Linux, negating the need for additional drivers. This ensures compatability with a wide range of professional software applications and a seamless integration between the native software and AJA’s high quality hardware letting you focus on the work, not the technology.

Connections

Straight forward connectivity

  • USB 3.0 host interface
  • HDMI Input

AJA U-TAP HDMI HD/SD USB 3.0 Capture Device Connectors

Built to the exacting standards of all AJA hardware, U-TAP is backed by our world class support network and our 3 year international warranty.

For further information check out the AJA website

Video Formats Video
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 25, 29.97, 30
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625i 25
(SD) 525i 29.97
Computer
1920 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1680 x 1050p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1600 x 1200p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1280 x 1024p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1280 x 960p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1024 x 768p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
800 x 600p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
720 x 576p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
640 x 480p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Scaled
1920 x 1200p 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p 25, 29.97, 30, 50, 59.94, 60
1280 x 720p 25, 29.97, 30, 50, 59.94, 60
1024 x 576p 25, 29.97, 30, 50, 59.94, 60
856 x 480p 25, 29.97, 30, 50, 59.94, 60
768 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 576p 25, 29.97, 30, 50, 59.94, 60
720 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 480p 25, 29.97, 30, 50, 59.94, 60
640 x 360p 25, 29.97, 30, 50, 59.94, 60
Video Input Digital HDMI v1.4a, 24-bits/pixel, RGB or YUV
Audio Input Digital 2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate
Host Interface USB 3.0/USB 2.0 UVC/UAC compliant
Size (w x d x h) 3.3" x 2.4" x 1.0" (84mm x 61mm x 25mm)
Weight 0.3 lb (0.2 kg)
Power 5V USB bus powered; 6.5W max
Environment Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

*Specifications correct at time of publication
