Description
Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.
Professional SDI Video Switching That You Can Take Anywhere
V-1SDI is a flexible and versatile video switcher that makes it easy to connect and switch professional 3G SDI cameras and playback sources along with HDMI sources including cameras, smart phones, computers, tablets, Blu-ray players.
Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.
With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.
Checkout Streaming Media's review of this great little switcher.
Main Features
- Support for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
- Easy to operate with hardware controls
- Compact size
- Supports up to Full HD 1080p
- 3 x 3G-SDI and 2 x HDMI* inputs
- 2 x 3G-SDI and 1 x HDMI* output
- Quad input multi-viewer with source labelling and audio metering
- Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
- Full 14 channel audio mixer included
- Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
*HDCP Compliant
Inputs
The V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling.
This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.
Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4’s scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.
*Video is only output from HDMI when HDCP is enabled. SDI outputs are disabled when HDCP is enabled.
Outputs
The V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.
Quad Input Multi-Viewer
The four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.
Composition Effects
The V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.
The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).
Audio Mixing
Included is a 14 channel digital audio mixer.
The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.
Every audio input is equipped with a delay function* to synchronize the video and the audio.
Audio follow function enables the audio to transition along with the video.
The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.
*The maximum delay time is 500ms.
Remote Control
Remote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable.
The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.

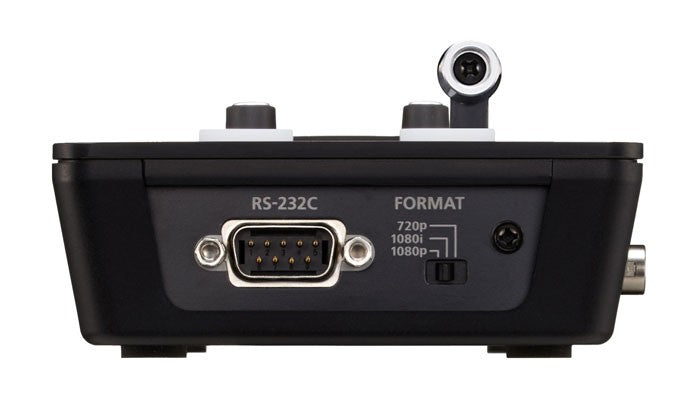

For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.
For more information on the Roland V-1SDI 3G-SDI Video Switcher, checkout the Roland website.
| VIDEO | |
|---|---|
| Video Processing | 4:2:2 (Y/Pb/Pr), 8-bit |
| Input Connectors | SDI INPUT 1--3: BNC x 3 |
| * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M | |
| HDMI INPUT 3--4: Type A (19 pins) x 2 | |
| * HDCP Supported | |
| * INPUT 3: SDI or HDMI selected. | |
| Output Connectors | SDI OUT PGM: BNC x 1 |
| SDI OUT PVW: BNC x 1 | |
| * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M | |
| HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 | |
| * HDCP Supported | |
| Input Formats | SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M |
| HDMI INPUT 3 | |
| 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p) | |
| * The input interlaced video signal is converted to progressive video signal by internal processing. | |
| * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). | |
| HDMI INPUT 4 | |
| 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p | |
| VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) | |
| WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz) | |
| FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) | |
| UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) | |
| * The refresh rate is the maximum value of each resolution. | |
| * Conforms to VESA DMT Version 1.0 Revision 11. | |
| * 1920 x 1200/60 Hz: Reduced blanking. | |
| * The input interlaced video signal is converted to progressive video signal by internal processing. | |
| * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). | |
| Output formats | SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M |
| HDMI OUT MULTI-VIEW | |
| 720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p) | |
| 1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i) | |
| 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p) | |
| * The video signal frame rate can be selected at the SETUP menu (59.94 or 50). | |
| Video Effects | Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types) |
| Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key) | |
| AUDIO | |
| Audio Processing | Sampling rate: 24 bits/48 kHz |
| Audio Formats | SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M |
| HDMI: Linear PCM, 24 bits/48 kHz, 2ch | |
| Input Connectors | Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M |
| HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2 | |
| Analog: AUDIO IN (RCA phono type) | |

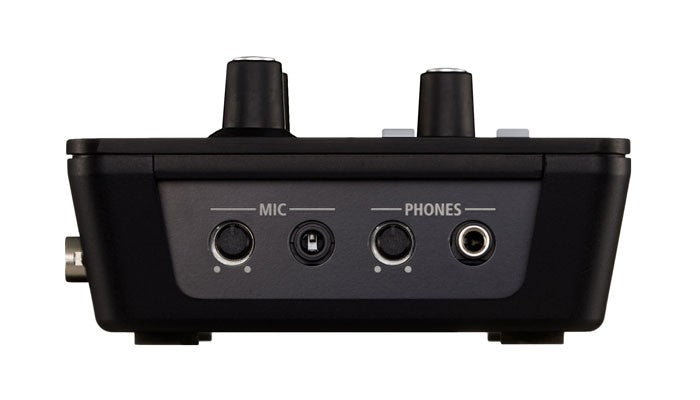

| MIC (Stereo mini type, plug-in power supported) | |
| Output Connectors | Digital: SDI OUT PGM: BNC x 1 SMPTE 299M |
| SDI OUT PVW: BNC x 1 SMPTE 299M | |
| HDMI OUT MULTI-VIEW: Type A (19 pins) x 1 | |
| Analog: AUDIO OUT (RCA phono type) | |
| PHONES (Stereo mini type) | |
| Input Level | AUDIO IN: -10 dBu (Maximum: +8 dBu) |
| MIC: -41-- -13 dBu (Maximum: -1 dBu) | |
| Input Impedance | AUDIO IN: 15 k ohms |
| MIC: 10 k ohms | |
| Output Level | AUDIO OUT: -10 dBu (Maximum: +8 dBu) |
| PHONES: 92 mW + 92 mW (32 ohms) | |
| Output Impedance | AUDIO OUT: 1 k ohm |
| PHONES: 10 ohms | |
| Audio Effects | EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect |
| OTHERS | |
| Other Connectors | USB: B Type (for remote control from PC) |
| RS-232: DB-9 type | |
| Other Functions | MEMORY (8 types) |
| FREEZE (input video captured) | |
| OUTPUT FADE (Audio, Video: WHITE or BLACK) | |
| Power Supply | AC Adaptor |
| Current Draw | 2.1 A |
| Power Consumption | 25 W |
| Operation Temperature | +0 to +40 degrees Celsius |
| +32 to +104 degrees Fahrenheit | |
| Dimensions | 313 (W) x 108 (D) x 59 (H) mm |
| 12-1/3 (W) x 4-1/4 (D) x 2-1/3 (H) inches | |
| Weight (excluding AC adaptor) | 1.2 kg |
| 2 lbs 10-2/5 oz | |
| Accessories | Owner's manual |
| AC adaptor | |
| Power cord | |
| Cord hook | |
| * Specs current at time of publication | |
