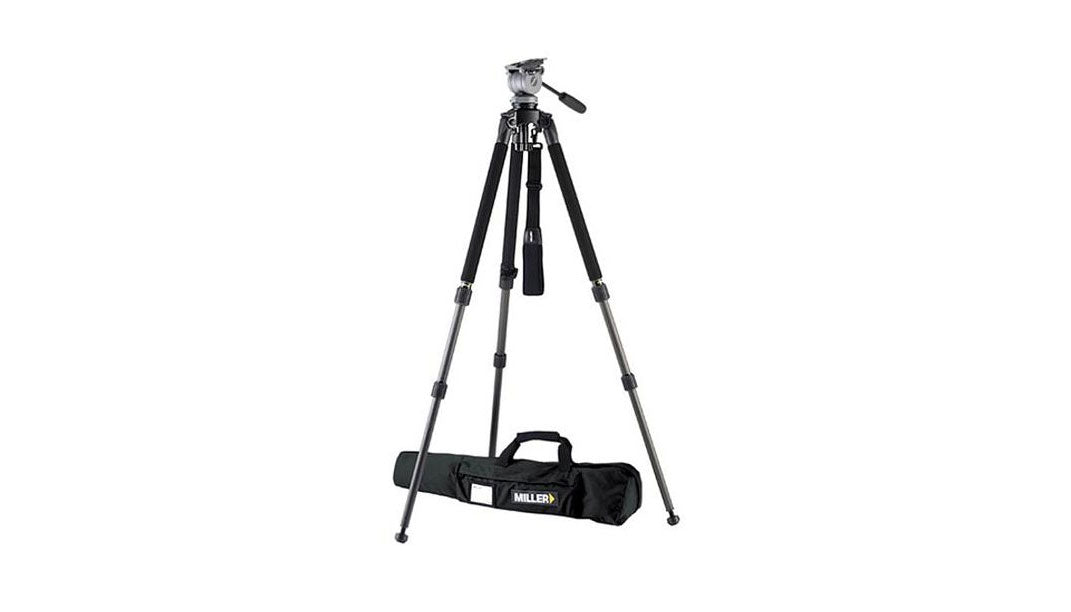

Miller DS20 Solo CF Tripod System (1514)
  • SKU: 1514

Miller DS20 Solo CF Tripod System (1514)

$1,859.00
  • Vendor: Miller Tripods
  • Product Type: Tripods

The DS20 Solo 75 system offers an ideal price to performance ratio and ultra-light carbon support for payloads between 5-10kg/11-22 lbs. Designed around the popular Miller DS20 with 'flick-of-a-switch' selectable counterbalance, Solo 75 20 features a choice of 1/4" & pin or 1/4" & 3/8" screw mounts with sliding quick release mount for lens and battery changes. The Solo 75 2-Stage Carbon tripod complements this lightweight, true fluid drag support for all HDV/P2HD/XDCAM EX cameras.

Features:

  • True fluid pan and tilt fluid head
  • 2 Stage Solo 75 carbon fibre telescope tubing
  • 75mm ball levelling
  • Quick Release sliding camera plate
  • flick-of-a-switch counterbalance positions for payloads from 5 to 10 kg / 11 to 22 lbs
Payload Range
5.0-10.0kg (11.0-22.0lbs)
Weight
4.5kg (10.0lbs )
Height Range 371-1751mm (14.6-68.9" )
Transport Length 831mm (32.7")
Counterbalance Positions 2 selectable positions
Pan Tilt Drag Adjustable fluid drag, temperature resistant
Pan Tilt Locks Positive lock calliper brake system
Tilt Range + 90°/ -75°
Pan Range 360°
Camera Platform Sliding camera plate
Sliding Range 60mm (2.4")
Mounting Base Ø75mm (2.9") ball levelling
Height Above Bowl 137mm (5.4")
Pan Handle Fixed length 390mm (15.4")
Temperature Range -40° to +65°C (-40° to +149°F)
Leg Extension 2 Stage Telescopic
Lock Type Concentric Rapid Lock
Leg Material Carbon fibre
*Specs correct at time of publication
