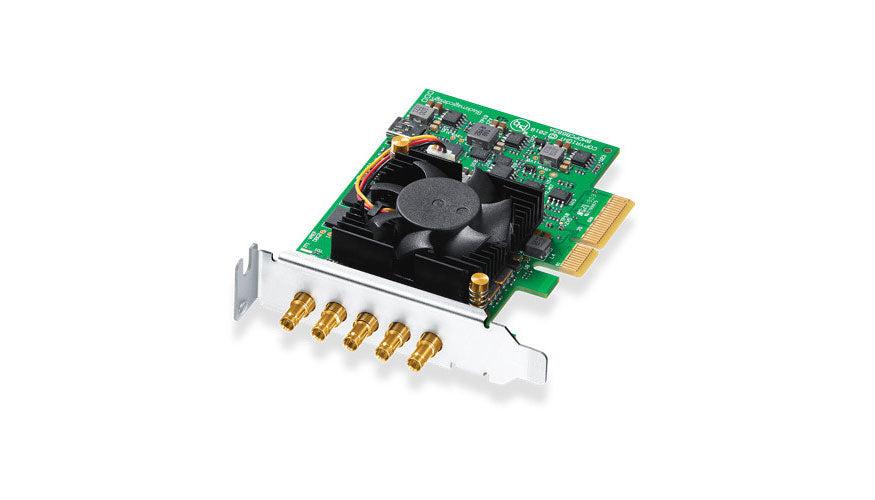

Blackmagic Design DeckLink Duo 2 Mini
  • SKU: BDLKDUO2LP

Blackmagic Design DeckLink Duo 2 Mini

$707.00
  • Vendor: Blackmagic Design
  • Product Type: Capture & Playback

Ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the DeckLink Duo 2 Mini Capture and Playback Card from Blackmagic Design. The Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.

For further information check out the Blackmagic Design website

Supported Operating Systems macOS 10.13, 10.14 or Later
Windows 7, 8.1, 10 (All 64-Bit)
Linux
Inputs/Outputs 4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
1 x Reference In
Sync Input Tri-Sync or Black Burst
Computer Interface PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots)
Audio Channels 16 x Embedded, HD and SD (Input and Output)
Video Support HD:
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF: 23.98, 24, 25, 29.97, 30
1080i: 50, 59.94, 60
720p: 50, 59.94, 60

SD:
525i: 59.94 NTSC
625i: 50 PAL
Audio Sample Rate 24-Bit, 48 kHz
Supported Codecs AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4
Conversion Modes Playback: 720p to 1080p, 1080p to 720p
Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom)
Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9)
Color Space Conversion: Hardware-Based, Real-Time
Color Space Rec. 601, Rec. 709
SDI Color Precision 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Video Sampling 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in Playback Mode Only)
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
SDI Metadata Support RP 188/SMPTE 12M-2 and Closed Captioning
Power Consumption 10 W
Certifications FCC, CE, and C-Tick
Operating Temperature 41 to 104°F / 5 to 40°C
Storage Temperature -4 to 113°F / -20 to 45°C
Relative Humidity (non-condensing) 0 to 90%
Length 3.9" / 9.9 cm, Low-Profile Form Factor
Weight 3.1 oz / 87 g
Specifications correct at time of publication
